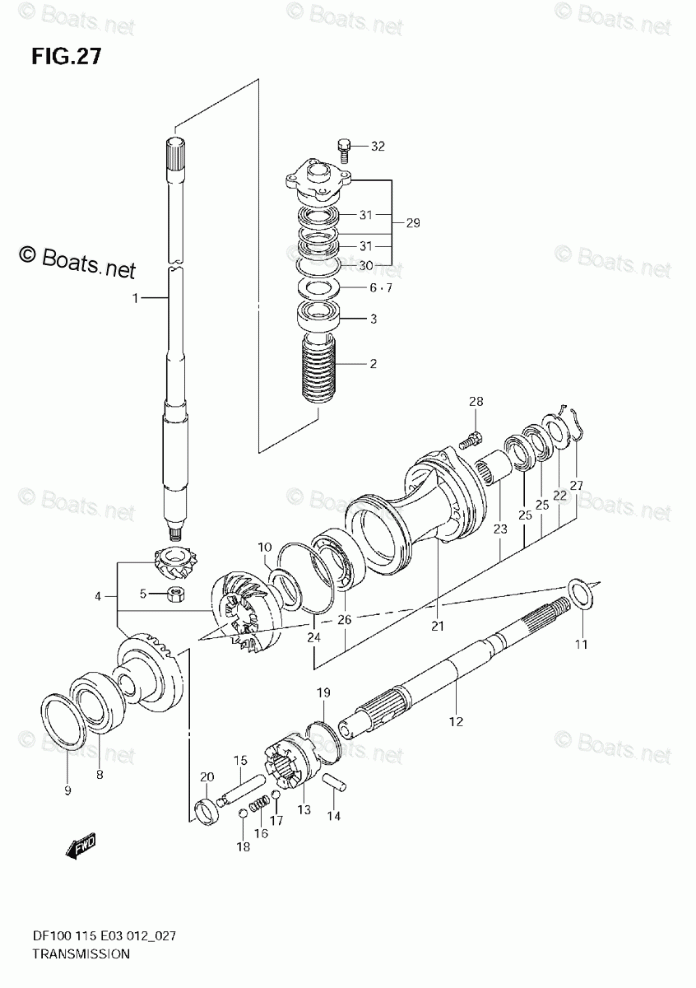

Transmission (DF100T)

Transmission (DF100T)

Suzuki Marine DF100TX

Transmission (DF100T)

#

oem код

название

цена

1-1

SHAFT ASSY, DRIVE (L) *{TRANSOM(L)}*

SHAFT ASSY, DRIVE (L) *{TRANSOM(L)}*

1-2

SHAFT ASSY, DRIVE (X) *{TRANSOM(X)}*

SHAFT ASSY, DRIVE (X) *{TRANSOM(X)}*

2

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

3

BEARING (25X52X29.25)

BEARING (25X52X29.25)

4

PINION/GEAR SET

PINION/GEAR SET

5

NUT

NUT

6

SHIM SET, DRIVE SHAFT

SHIM SET, DRIVE SHAFT

7-4

SHIM (41X52X0.65)

SHIM (41X52X0.65)

7-14

SHIM (41X52X1.15)

SHIM (41X52X1.15)

7-12

SHIM (41X52X1.05)

SHIM (41X52X1.05)

7-10

SHIM (41X52X0.95)

SHIM (41X52X0.95)

7-9

SHIM (41X52X0.9)

SHIM (41X52X0.9)

7-8

SHIM (41X52X0.85)

SHIM (41X52X0.85)

7-6

SHIM (41X52X0.75)

SHIM (41X52X0.75)

7-5

SHIM (41X52X0.7)

SHIM (41X52X0.7)

7-13

SHIM (41X52X1.1)

SHIM (41X52X1.1)

7-3

SHIM (41X52X0.6)

SHIM (41X52X0.6)

7-2

SHIM (41X52X0.55)

SHIM (41X52X0.55)

7-11

SHIM (40X52X1)

SHIM (40X52X1)

7-7

SHIM (40X52X0.8)

SHIM (40X52X0.8)

7-1

SHIM (41X52X0.5)

SHIM (41X52X0.5)

8

BEARING (50X85X26) *{PART OF GEAR CASE}*

BEARING (50X85X26) *{PART OF GEAR CASE}*

9-10

SHIM (50X65X0.95)

SHIM (50X65X0.95)

9-9

SHIM (50X65X0.85)

SHIM (50X65X0.85)

9-8

SHIM (50X65X0.8)

SHIM (50X65X0.8)

9-7

SHIM (50X65X0.75)

SHIM (50X65X0.75)

9-6

SHIM (50X65X0.7)

SHIM (50X65X0.7)

9-5

SHIM (50X65X0.65)

SHIM (50X65X0.65)

9-4

SHIM (50X65X0.6)

SHIM (50X65X0.6)

9-3

SHIM (50X65X0.55)

SHIM (50X65X0.55)

9-2

SHIM (50X65X0.5)

SHIM (50X65X0.5)

9-1

SHIM (50X65X0.45)

SHIM (50X65X0.45)

10-6

SHIM (45X56X1.5)

SHIM (45X56X1.5)

10-5

SHIM (45X56X1.4)

SHIM (45X56X1.4)

10-4

SHIM (45X56X1.3)

SHIM (45X56X1.3)

10-3

SHIM (45X56X1.2)

SHIM (45X56X1.2)

10-2

SHIM (45X56X1.1)

SHIM (45X56X1.1)

10-1

SHIM (45X56X1)

SHIM (45X56X1)

10-7

SHIM (45X56X1.6)

SHIM (45X56X1.6)

11-1

SHIM (28X33.5X0.9)

SHIM (28X33.5X0.9)

11-2

SHIM (28X33.5X1)

SHIM (28X33.5X1)

11-3

SHIM (28X33.5X1.2)

SHIM (28X33.5X1.2)

11-4

SHIM (28X33.5X1.3)

SHIM (28X33.5X1.3)

11-5

SHIM (28X33.5X1.4)

SHIM (28X33.5X1.4)

11-6

SHIM (28X33.5X1.6)

SHIM (28X33.5X1.6)

12

SHAFT ASSY, PROPELLER

SHAFT ASSY, PROPELLER

13

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

14

PIN

PIN

15

ROD, PUSH

ROD, PUSH

16

SPRING

SPRING

17

BALL *{NO.1}*

BALL *{NO.1}*

18

BALL *{NO.2}*

BALL *{NO.2}*

19

SPRING

SPRING

20

SPACER

SPACER

21

56120-90J02-0EP

HOUSING, PROP SFT BRG (BLACK)

HOUSING, PROP SFT BRG (BLACK)

22

WASHER, OIL SEAL PROTECTOR

WASHER, OIL SEAL PROTECTOR

23

BEARING (28X37X30)

BEARING (28X37X30)

24

O RING (D:3.5,ID:95)

O RING (D:3.5,ID:95)

25

OIL SEAL (28X50X6)

OIL SEAL (28X50X6)

26

BEARING

BEARING

27

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

28

BOLT (8X30)

BOLT (8X30)

29

HOUSING

HOUSING

30

O RING (D:3.5,ID:45.7)

O RING (D:3.5,ID:45.7)

31

OIL SEAL (24X40X7)

OIL SEAL (24X40X7)

32

BOLT (8X25)

BOLT (8X25)
