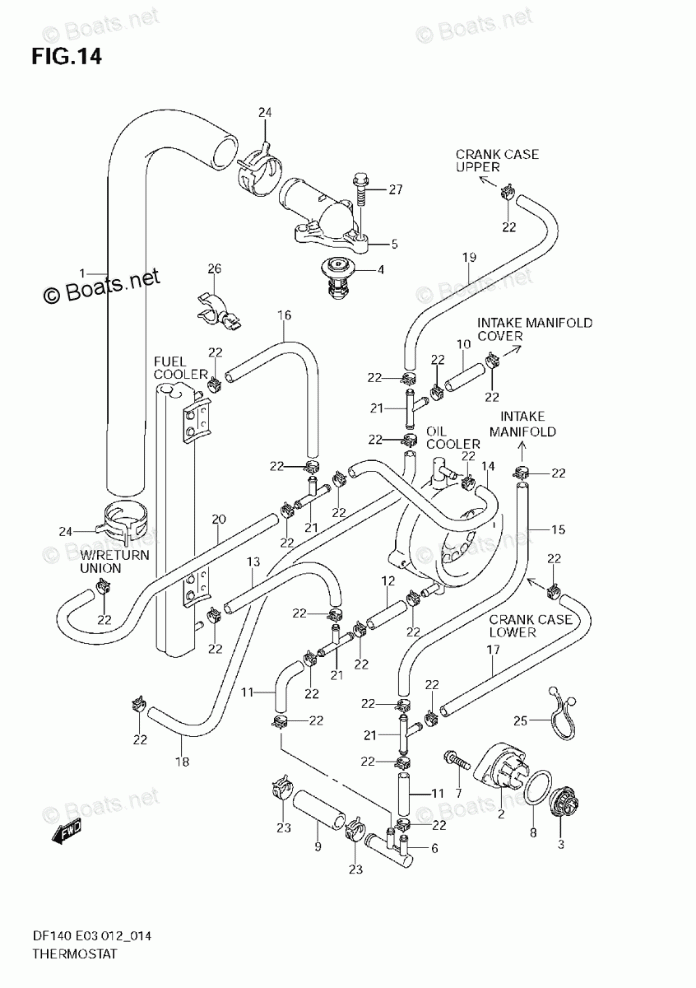

ТЕРМОСТАТ

Suzuki Marine DF 140TL
Suzuki Marine
#oem кодцена
1
11196-90J00
HOSE, WATER RETURN
2
17611-90J00-0EP
COVER, WATER PRESS VALVE
3
17660-90J00
VALVE, WATER PRESSURE
4-1
17670-90J00
THERMOSTAT (60 C)
4-2
17670-90J10
THERMOSTAT (71 C) *{OPT}*
5
17681-90J01
COVER, THERMOSTAT
6
17711-90J00
3 WAY, WATER HOSE
7
09116-06121
BOLT (6X25)
8
09280-26006
O RING (D:3.1,ID:26.4)
9
09352-11153-600
HOSE (HOLDER TO 3 WAY) *{L:600->50}*
10
09352-50903-600
HOSE (INMF COVER TO 3 WAY) *{L:600->50}*
11
09352-50903-600
HOSE (3 WAY TO 3 WAY) *{L:600->70}*
12
09352-50903-600
HOSE (3 WAY TO OIL CLR) *{L:600->50}*
13
09352-50903-600
HOSE (3 WAY TO FUEL CLR) *{L:600->160}*
14
09352-50903-600
HOSE (OIL CLR TO 3 WAY) *{L:600->160}*
15
09352-50903-600
HOSE (3 WAY TO INMF) *{L:600->200}*
16
09352-50903-600
HOSE (FUEL CLR TO 3 WAY) *{L:600->230}*
17
09352-50903-600
HOSE (3 WAY TO CRKC LOWER) *{L:600->370}*
18
09352-50903-600
HOSE (3 WAY TO INDICATOR) *{L:600->370}*
19
09352-50903-600
HOSE (CRKC UPPER TO 3 WAY) *{L:600->450}*
20
09352-50903-600
HOSE (3 WAY TO HOLDER) *{L:600->480}*
21
09367-06002
3 WAY, WATER HOSE
22
09401-08413
CLIP
23
09401-14409
CLIP
24
09401-31407
CLIP
25
09408-00024
CLIP
26
09408-00069
CLIP
27
01550-06257
BOLT
