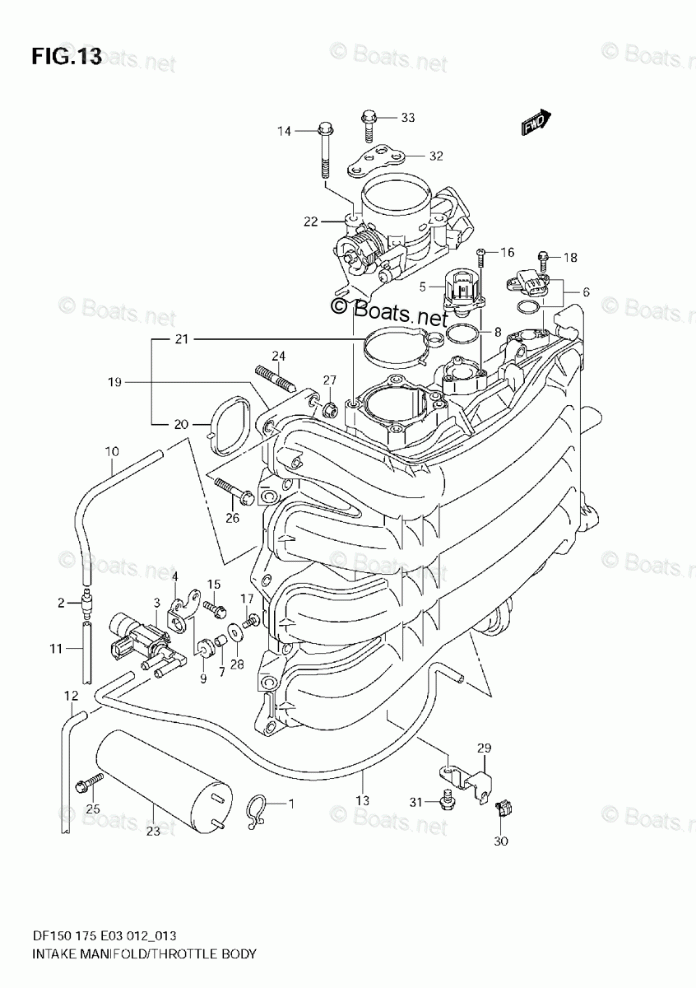

INTAKE MANIFOLD/THROTTLE BODY

Suzuki Marine DF 175ZX
Suzuki Marine
#oem кодцена
1
09408-00008
CLIP
2
13162-93J00
VALVE, CHECK
3
18117-93J00
VALVE, VACUUM SWITCHING
4
18119-96J00
BRACKET, VACUUM SW VALVE
5
18137-52D00
VALVE, IAC
6
18590-68H00
SENSOR, MAP
7
09180-05047
SPACER (5.5X8X7.5)
8
09280-29006
O RING (D:2,ID:29.5)
9
09320-07015
CUSHION
10
09355-35754-601
HOSE (3.5X7.5X601) *{L:601->250}*
11
09355-35754-601
HOSE (3.5X7.5X601) *{L:601->250}*
12
09355-35754-601
HOSE (3.5X7.5X601) *{L:601->470}*
13
09355-35754-601
HOSE (3.5X7.5X601) *{L:601->600}*
14-2
01550-08607
BOLT
14-1
01550-08557
BOLT
15
01550-06167
BOLT
16
02112-34167
SCREW
17
02112-05127
SCREW
18
02162-05207
SCREW
19
13110-96J00
MANIFOLD, INTAKE
20
13119-96J00
GASKET, INTAKE MANIFOLD
21
13125-96J00
GASKET, THROTTLE BODY
22
13300-96J00
BODY ASSY, THROTTLE
23
13730-96J01
CHAMBER, VACUUM
24
01421-08257
STUD BOLT
25
01550-06257
BOLT
26
01550-08307
BOLT
27
08316-10087
NUT
28
09160-05045
WASHER (5.5X18X1)
29
63615-96J00
BRACKET, THROTTLE CABLE CLAMP
30
09403-05312
CLAMP
31
01550-06127
BOLT
32
13315-96J00
BRACKET, THROTTLE BODY
33
01550-08207
BOLT
