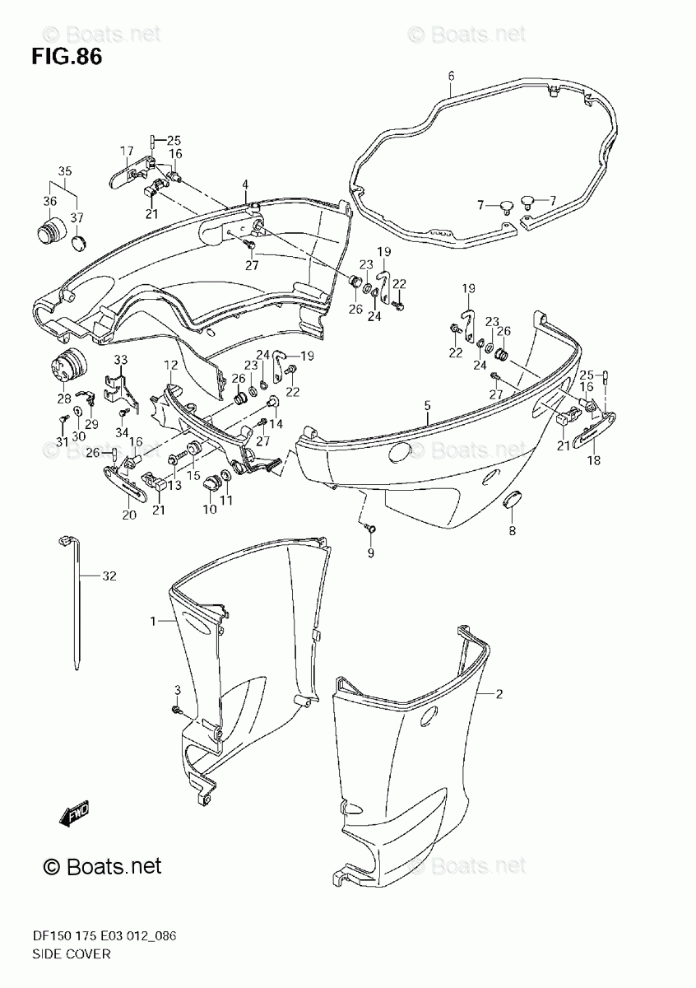

Side Cover (DF175Z)

Suzuki Marine DF 175ZX
Suzuki Marine
#oem кодцена
1
61131-96J11-0EP
COVER, OIL PAN STBD (X) (BLACK)
2
61141-96J11-0EP
COVER, OIL PAN PORT (X) (BLACK)
3
09139-06135
SCREW (6X17)
4
61811-96J01-0EP
COVER, SIDE STBD (BLACK)
5
61821-96J01-0EP
COVER, SIDE PORT (BLACK)
6
61134-96J00
SEAL, SIDE COVER
7
09409-05302-5PK
CLIP (BLACK)
8
61817-89J00
PLUG, SIDE COVER
9
09136-06148
SCREW (6X35)
10
17913-93J00
PLUG, WATER
11
17914-93J00
GASKET, WATER PLUG
12
61831-96J02-0EP
PANEL, FRONT (BLACK)
13
09118-08127
BOLT (8X40)
14
09169-08039
WASHER
15
09320-11013
CUSHION
16
61632-93J00
SHAFT, ENGINE COVER HOOK
17
61633-96J02
LEVER, HOOK RR STBD
18
61634-96J02
LEVER, HOOK RR PORT
19
61641-93J10
HOOK, ENGINE COVER
20
61645-96J02
LEVER, HOOK FR
21
61673-96J02
LATCH, HOOK LEVER
22
09116-06127
BOLT (6X12)
23
09160-13014
WASHER (13.2X25X1)
24
09164-14008
WASHER
25
09202-04022
PIN
26
09306-13007
BUSH
27
01550-05107
SCREW
28
61124-96J01
GROMMET, REMOCON CABLE
29
67343-96J00
STOPPER, REMOCON CABLE
30
09160-06047
WASHER (6.5X20X2)
31
01570-06127
BOLT
32
09407-25402
CLAMP (L:248)
33
67341-96J00
HOLDER, REMOCON CABLE
34
01550-06167
BOLT
35
67300-93J00
KIT, HOSE ADAPTER *{OPT}*
36
67361-93J00
ADAPTER, HOSE *{OPT}*
37
09250-21003
PLUG *{OPT}*
