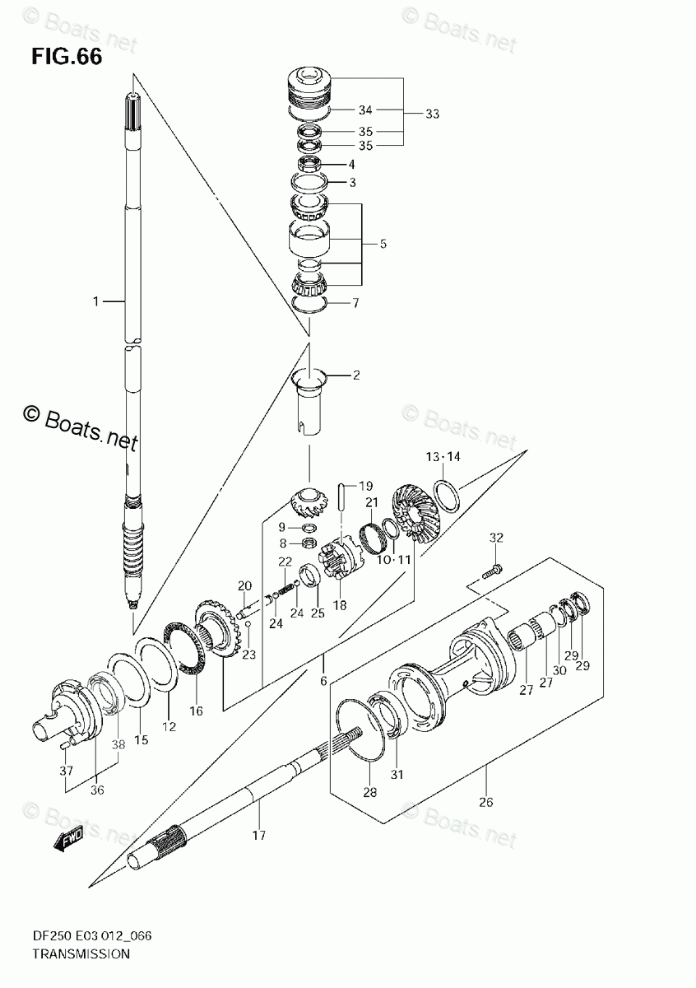

Transmission (DF250T E3)
Transmission (DF250T E3)

Transmission (DF250T E3)

Suzuki Marine DF 250TX

Transmission (DF250T E3)

#

oem код

название

цена

1-2

SHAFT, DRIVE (XX) *{W/TRANSOM(XX)}*

SHAFT, DRIVE (XX) *{W/TRANSOM(XX)}*

1-1

SHAFT, DRIVE (X) *{W/TRANSOM(X)}*

SHAFT, DRIVE (X) *{W/TRANSOM(X)}*

2

COLLAR, DRIVE SHAFT

COLLAR, DRIVE SHAFT

3

SPACER, DRIVE SHAFT BEARING

SPACER, DRIVE SHAFT BEARING

4

NUT

NUT

5

BEARING (32X66X49)

BEARING (32X66X49)

6

PINION/GEAR SET

PINION/GEAR SET

7-9

SHIM (60X66X0.85)

SHIM (60X66X0.85)

7-8

SHIM (60X66X0.8)

SHIM (60X66X0.8)

7-7

SHIM (60X66X0.75)

SHIM (60X66X0.75)

7-6

SHIM (60X66X0.7)

SHIM (60X66X0.7)

7-5

SHIM (60X66X0.65)

SHIM (60X66X0.65)

7-4

SHIM (60X66X0.6)

SHIM (60X66X0.6)

7-3

SHIM (60X66X0.55)

SHIM (60X66X0.55)

7-2

SHIM (60X66X0.5)

SHIM (60X66X0.5)

7-10

SHIM (60X66X0.9)

SHIM (60X66X0.9)

7-1

SHIM (60X66X0.45)

SHIM (60X66X0.45)

8

NUT

NUT

9

WASHER

WASHER

10

SHIM SET, PROP SHAFT REV

SHIM SET, PROP SHAFT REV

11-7

WASHER (30X38X2.4)

WASHER (30X38X2.4)

11-1

WASHER (30X38X1.5)

WASHER (30X38X1.5)

11-5

WASHER (30X38X2.2)

WASHER (30X38X2.2)

11-11

WASHER (30X38X2.8)

WASHER (30X38X2.8)

11-2

WASHER (30X38X1.7)

WASHER (30X38X1.7)

11-3

WASHER (30X38X1.9)

WASHER (30X38X1.9)

11-4

WASHER (30X38X2.1)

WASHER (30X38X2.1)

11-6

WASHER (30X38X2.3)

WASHER (30X38X2.3)

11-10

WASHER (30X38X2.7)

WASHER (30X38X2.7)

11-9

WASHER (30X38X2.6)

WASHER (30X38X2.6)

11-8

WASHER (30X38X2.5)

WASHER (30X38X2.5)

12

WASHER (75X100X2) *{FWD GEAR}*

WASHER (75X100X2) *{FWD GEAR}*

13

SHIM SET, REV GEAR

SHIM SET, REV GEAR

14-2

SHIM (50X62X1.1) *{REV GEAR}*

SHIM (50X62X1.1) *{REV GEAR}*

14-7

SHIM (50X62X1.6) *{REV GEAR}*

SHIM (50X62X1.6) *{REV GEAR}*

14-6

SHIM (50X62X1.5) *{REV GEAR}*

SHIM (50X62X1.5) *{REV GEAR}*

14-5

SHIM (50X62X1.4) *{REV GEAR}*

SHIM (50X62X1.4) *{REV GEAR}*

14-4

SHIM (50X62X1.3) *{REV GEAR}*

SHIM (50X62X1.3) *{REV GEAR}*

14-3

SHIM (50X62X1.2) *{REV GEAR}*

SHIM (50X62X1.2) *{REV GEAR}*

14-1

SHIM (50X62X1) *{REV GEAR}*

SHIM (50X62X1) *{REV GEAR}*

14-8

SHIM (50X62X1.7) *{REV GEAR}*

SHIM (50X62X1.7) *{REV GEAR}*

15-10

SHIM (75X100X0.95) *{FWD GEAR}*

SHIM (75X100X0.95) *{FWD GEAR}*

15-2

SHIM (75X100X0.55) *{FWD GEAR}*

SHIM (75X100X0.55) *{FWD GEAR}*

15-1

SHIM (75X100X0.5) *{FWD GEAR}*

SHIM (75X100X0.5) *{FWD GEAR}*

15-4

SHIM (75X100X0.65) *{FWD GEAR}*

SHIM (75X100X0.65) *{FWD GEAR}*

15-8

SHIM (75X100X0.85) *{FWD GEAR}*

SHIM (75X100X0.85) *{FWD GEAR}*

15-6

SHIM (75X100X0.75) *{FWD GEAR}*

SHIM (75X100X0.75) *{FWD GEAR}*

15-11

SHIM (75X100X1) *{FWD GEAR}*

SHIM (75X100X1) *{FWD GEAR}*

15-9

SHIM (75X100X0.9) *{FWD GEAR}*

SHIM (75X100X0.9) *{FWD GEAR}*

15-7

SHIM (75X100X0.8) *{FWD GEAR}*

SHIM (75X100X0.8) *{FWD GEAR}*

15-5

SHIM (75X100X0.7) *{FWD GEAR}*

SHIM (75X100X0.7) *{FWD GEAR}*

15-3

SHIM (75X100X0.6) *{FWD GEAR}*

SHIM (75X100X0.6) *{FWD GEAR}*

16

BEARING (75X100X4)

BEARING (75X100X4)

17

SHAFT, PROPELLER

SHAFT, PROPELLER

18

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG

19

PIN (8X49)

PIN (8X49)

20

PIN, CONNECTOR

PIN, CONNECTOR

21

SPRING

SPRING

22

SPRING

SPRING

23

BALL

BALL

24

BALL

BALL

25

SPACER (25X36.5X9.5)

SPACER (25X36.5X9.5)

26

56120-93J03-0EP

HOUSING, PROP SFT BRG (BLACK)

HOUSING, PROP SFT BRG (BLACK)

27

BEARING (30X40X25)

BEARING (30X40X25)

28

O RING (D:3.1,ID:104.4)

O RING (D:3.1,ID:104.4)

29

OIL SEAL (30X45X6)

OIL SEAL (30X45X6)

30

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

31

BEARING

BEARING

32

BOLT, PROP SFT BRG HSG (8X35)

BOLT, PROP SFT BRG HSG (8X35)

33

HOUSING, DRIVE SHAFT BRG

HOUSING, DRIVE SHAFT BRG

34

O RING (D:3.1,ID:65.4)

O RING (D:3.1,ID:65.4)

35

OIL SEAL (24X40X7)

OIL SEAL (24X40X7)

36

HOUSING, FWD GEAR BRG

HOUSING, FWD GEAR BRG

37

PIN

PIN

38

BEARING (50X65X25)

BEARING (50X65X25)
