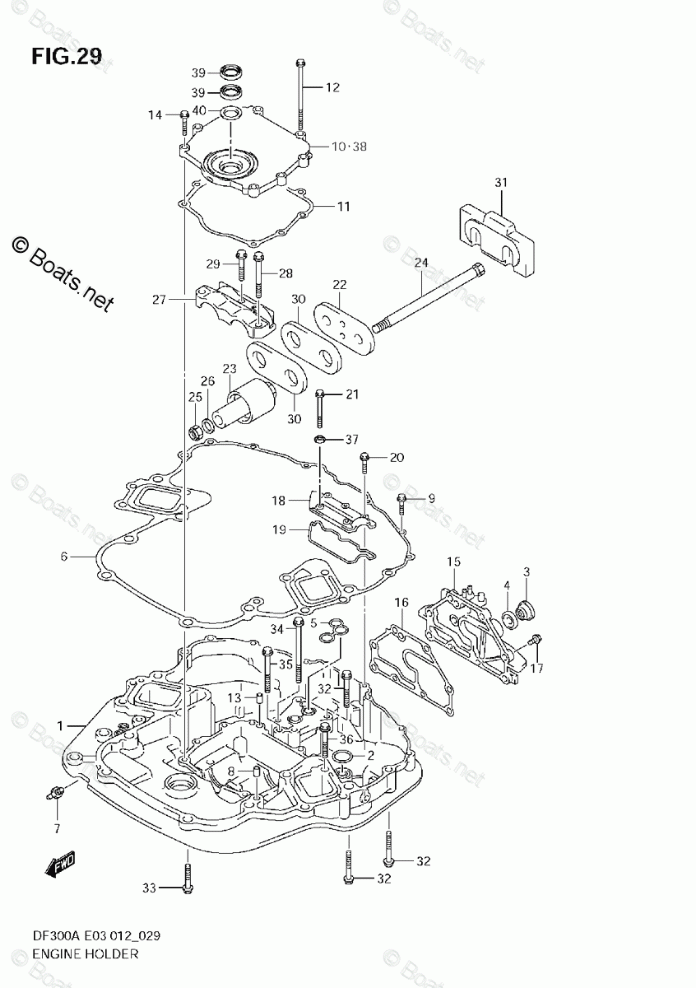

ОСНОВАНИЕ ДВИГАТЕЛЯ

Suzuki Marine DF 300APX
Suzuki Marine
#oem кодцена
1
51111-93J03-0EP
HOLDER, ENGINE (BLACK)
2
16519-93J00
SEAL, ENGINE HOLDER OIL
3
17913-93J00
PLUG, WATER
4
17914-93J00
GASKET, WATER PLUG
5
51116-93J00
SEAL, WATER RETURN
6
51211-93J00
GASKET, ENGINE HOLDER
7
61155-93J20
UNION, WATER INDICATOR
8
09206-08001
PIN (8X11)
9
01550-08307
BOLT
10
51122-93J02
COVER, MOUNT OIL SEAL
11
51123-93J00
GASKET, MOUNT OIL SEAL COVER
12
09103-08109
BOLT (8X120)
13
09206-08001
PIN (8X11)
14
01550-0830A
BOLT
15
51140-98J00-0EP
COVER, ENGINE HOLDER (BLACK)
16
51142-93J00
GASKET, ENGINE HOLDER COV
17
09116-08122
BOLT (8X30)
18
51151-93J00
COVER, ENGINE HOLDER UPPER
19
51152-93J00
SEAL, ENGINE HOLDER UPPER COV
20
01550-08307
BOLT
21
01550-08607
BOLT
22
54123-93J02
PLATE, UPPER MOUNT
23
54130-93J01
MOUNT, UPPER
24
09100-14004
BOLT (14X220)
25
09159-14026
NUT
26
09160-15051
WASHER (15X24X3)
27
54137-93J02
COVER, UPPER MOUNT
28
09116-10135
BOLT (10X95)
29
09116-10175
BOLT (10X50)
30
54121-98J00
STOPPER, UPPER THRUST
31
54140-98J00
MOUNT, UPPER THRUST REVERSE
32
09116-10137
BOLT (10X70)
33
09116-10175
BOLT (10X50)
34
09116-10146
BOLT (10X195)
35
09116-10134
BOLT (10X115)
36
09116-08126
BOLT (8X65)
37
09169-08038
WASHER (8.3X15X3)
38
51122-93J02
COVER, MOUNT OIL SEAL
39
51124-93J00
OIL SEAL
40
51125-93J00
SCRAPER
