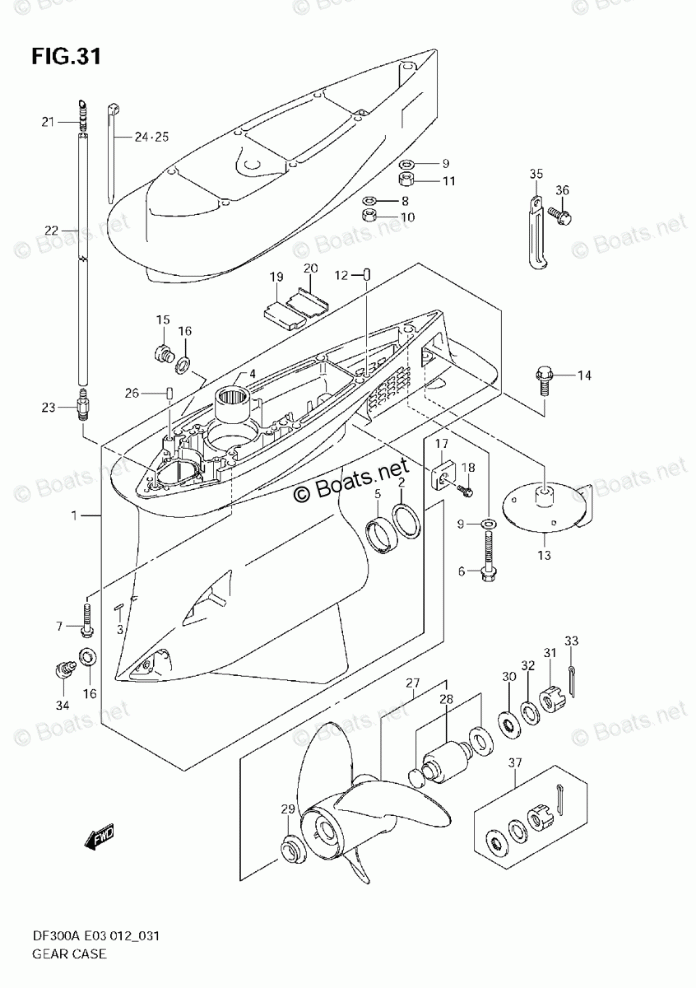

КАРТЕР КОРОБКИ ПЕРЕДАЧ

Suzuki Marine DF 300APXX
Suzuki Marine
#oem кодцена
1
55110-93L00-0EP
CASE, GEAR (BLACK)
2
55118-93L00
WASHER, FORWARD GEAR THRUST
3
09206-03001
BUSH (2X3X11)
4
09263-35048
BEARING (35X56X37)
5
09263-80001
BEARING
6
09100-12052
BOLT (12X70) *{W/TRANSOM(X)}*
7
09116-10150
BOLT (10X55) *{W/TRANSOM(X)}*
8
09160-10141
WASHER (10.5X19X2) *{W/TRANSOM(XX)}*
9
09160-12066
WASHER (12.5X22X2.5)
10
29141-93J20
NUT, EXTENSION BOLT NO.1 *{W/TRANSOM(XX)}*
11
09159-12014
NUT *{W/TRANSOM(XX)}*
12
09202-08006
PIN (8X12)
13
55125-93L00
TAB, TRIM
14
09116-08137
BOLT (8X22)
15
55128-93J10
PLUG, DRAIN
16
09168-10034
GASKET (9.5X16.5X2)
17
55321-93J00
ANODE, PROTECTION
18
09116-06094
BOLT (6X15)
19
55332-98J00
RUBBER, EXHAUST SEAL
20
55333-98J00
PLATE, EXHAUST SEAL
21
55127-87D00
UNION, SPEEDOMETER HOSE
22
09355-40805-00B
HOSE (4X8X2000) *{L:2000->1300}*
23
09362-09008
UNION
24
09407-10404
CLAMP (L:100)
25
09401-08412
CLIP
26
09202-06031
PIN (6X12)
27-24
58200-93LE0
PROPELLER (3X16X17) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-25
58200-93LF0
PROPELLER (3X16X24.5) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-9
58200-96J00
PROPELLER (3X15.5X17) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-23
58200-93LD0
PROPELLER (3X16X23) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-22
58200-93LC0
PROPELLER (3X16X21.5) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-21
58200-93LB0
PROPELLER (3X16X20) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-26
58200-93LG0
PROPELLER (3X16X24.5) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-14
58200-96J50
PROPELLER (3X14.5X27) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-10
58200-96J10
PROPELLER (3X15.25X19) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-11
58200-96J20
PROPELLER (3X14.75X21) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-12
58200-96J30
PROPELLER (3X14.75X23) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-13
58200-96J40
PROPELLER (3X14.5X25) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-8
58200-93L70
PROPELLER (3X16X27.5) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-27
58200-96JA0
PROPELLER (3X15.5X17) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-28
58200-96JB0
PROPELLER (3X15.25X19) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-29
58200-96JC0
PROPELLER (3X14.75X21) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-20
58200-93LA0
PROPELLER (3X16X18.5) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-36
58300-93JD0
PROPELLER (3X15.25X26) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-7
58200-93L60
PROPELLER (3X16X26) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-31
58200-96JE0
PROPELLER (3X14.5X25) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-35
58300-93JC0
PROPELLER (3X15.25X24) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-34
58300-93JB0
PROPELLER (3X15.25X22) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-33
58300-93JA0
PROPELLER (3X15.25X20) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-19
58300-93J40
PROPELLER (4X15.25X26) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-18
58300-93J30
PROPELLER (4X15.25X24) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-17
58300-93J20
PROPELLER (4X15.25X22) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-16
58300-93J10
PROPELLER (4X15.25X20) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-6
58200-93L50
PROPELLER (3X16X24.5) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-15
58300-93J00
PROPELLER (4X15.25X18) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-32
58200-96JF0
PROPELLER (3X14.5X27) *{NOT FOR US MARKET W/COUNTER ROTATION}*
27-1
58200-93L00
PROPELLER (3X16X17) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-2
58200-93L10
PROPELLER (3X16X18.5) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-3
58200-93L20
PROPELLER (3X16X20) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-4
58200-93L30
PROPELLER (3X16X21.5) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-5
58200-93L40
PROPELLER (3X16X23) *{NOT FOR US MARKET W/REGULAR ROTATION}*
27-30
58200-96JD0
PROPELLER (3X14.75X23) *{NOT FOR US MARKET W/COUNTER ROTATION}*
28
58105-93J10
BUSH SET, PROPELLER *{NOT FOR US MARKET}*
29
57632-93L00
STOPPER, PROPELLER BUSH
30
57633-87D30
SPACER, PROPELLER NUT
31
09141-18005
NUT
32
09160-18028
WASHER (18.5X31X1)
33
09204-03003
COTTER PIN
34
55128-93L00
PLUG, DRAIN
35
29404-93J10
CLAMP
36
01550-06127
BOLT
37
57630-92E00
KIT, PROPELLER NUT *{OPT}*
38
25700-93L00
KIT, GEAR CASE SEALING *{OPT NOT ILLUSTRATED}*
