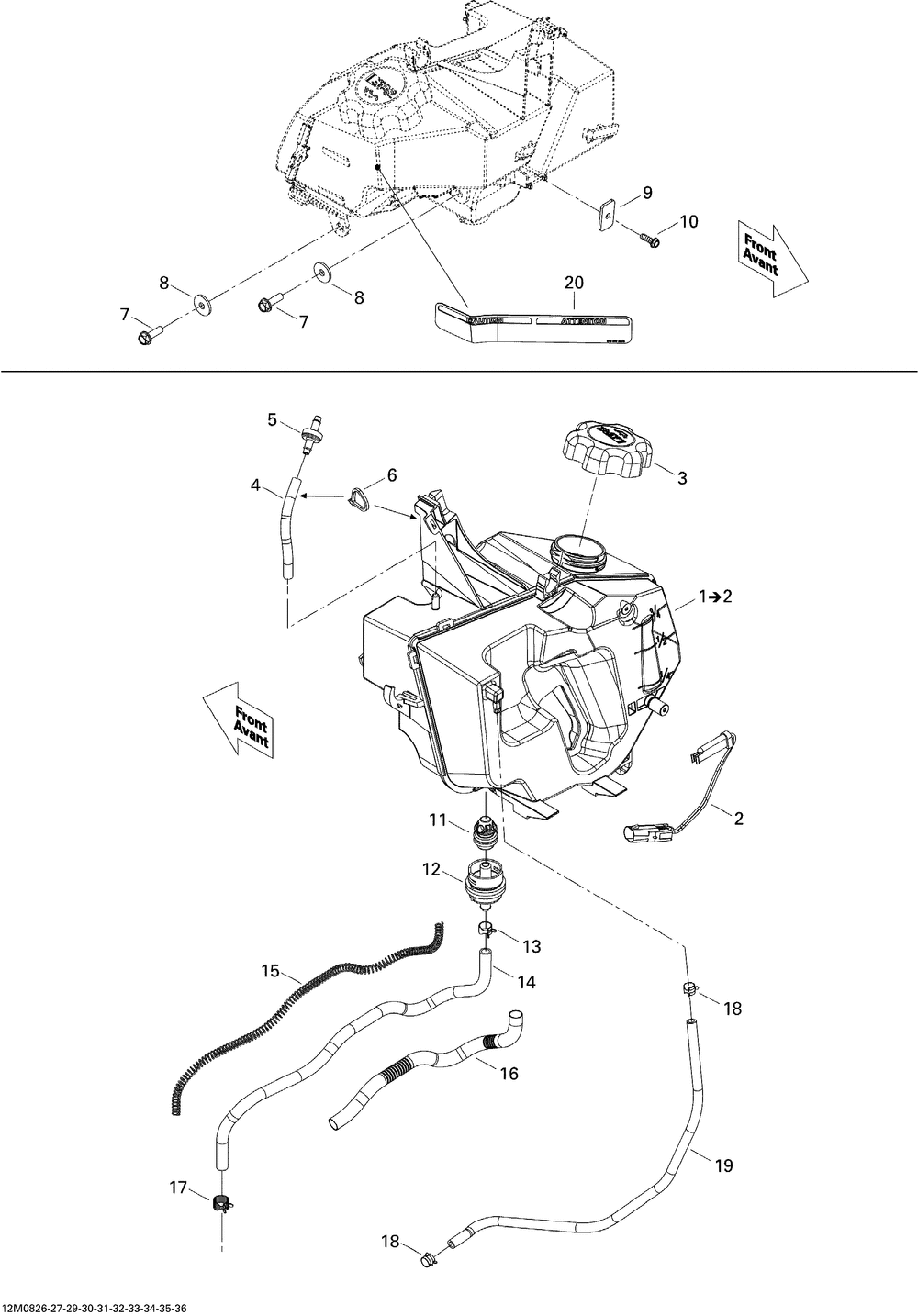

Масляная система

Ski-Doo (Bombardier) Summit EVEREST 800R
Ski-Doo (Bombardier)
#oem кодцена
1
519000130
Reservoir Huile*oil Tank (includes 1 To 2 )
2
515176508
Capteur Niveau *level Sensor
3
519000194
Крышка
4
415080200
Шланг
5
275500398
Клапан
6
293750002
Стяжка 142мм
7
250000331
Screw-forming S.grip Hex.hd.fl.gm6174m
8
224061201
Шайба
9
519000179
Кронштейн
10
241151640
Винт
11
519000180
Raccord *grommet (<>m-600hoe )
12
519000195
Filtre Huile *filter-oil (<>m-600hoe )
13
414415200
Bride A Ressort*clamp-spring (<>m-600hoe )
14
415080700
Boyau Polyure *hose*polyurethane (<>m-600hoe )
15
519000196
Ressort *spring (<>m-600hoe )
16
415079900
Gaine *protector Tube (<>m-600hoe )
17
414420700
Bride A Ressort*clamp-spring (<>m-600hoe )
18
414554800
Зажим пружинный
20
516002325
Decalque Aver. *warning Decal. (<>m-500ss )
1
293650099
Collet A Sertir*crimp Clamp (includes 1 To 2 )
1
519000237
Reservoir Huile*oil Tank (includes 1 To 2 )
1
519000242
Filtre Huile *filter-oil (includes 1 To 2 )
1
519000274
Reservoir Huile*oil Tank (includes 1 To 2 )
19
415080200
Шланг
