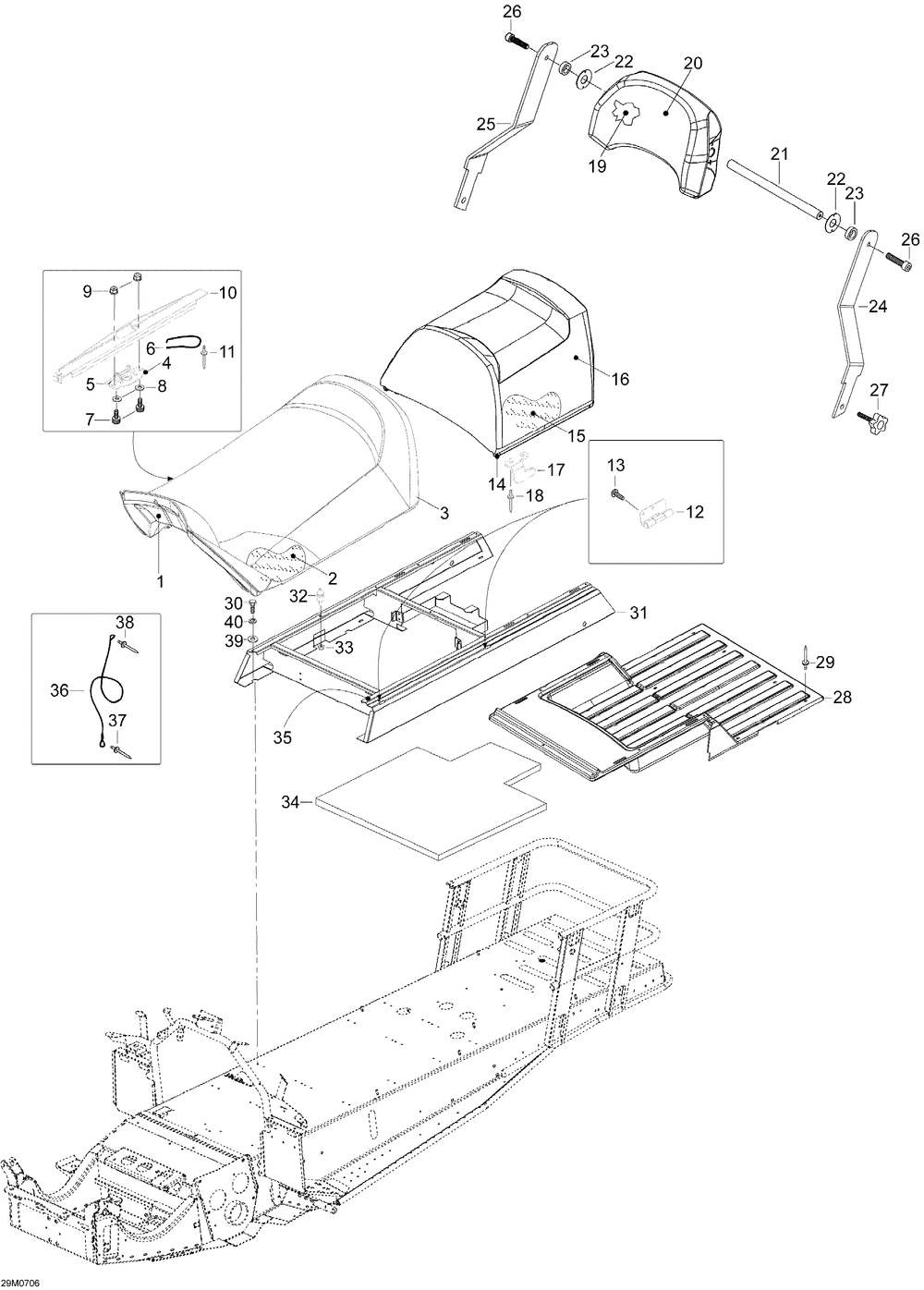

Сиденье

Ski-Doo (Bombardier) Expedition TUV V-800
Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base
2
605255689
Front Foam Seat
3
605255216
Housse De Siege*seat Cover
4
269700076
Couv.loquet *cover-latch
5
269700077
Levier Loquet *lever-latch
6
269700017
Ressort Loquet *spring-latch
7
M40276
Allen Screw M6 X 25din 912m8.8zne
8
234061410
Шайба
9
232561414
Гайка с тефлоном
10
605352483
Plaque Sup. *support Plate
11
M36088
Заклепка
12
605351798
Charniere *hinge Plate Assy
13
M40890
Винт
14
605251390
Sous Siege Ar. *rear Seat Base
15
605255691
Rear Seat Foam High Density Foam
16
605254496
Seat Cover Tuv
17
605351808
Verrou *locking Plate L.h
17
605352007
Verrou *locking Plate R.h
18
M36087
Заклепка
19
605353807
Mousse *foam Assy Exp
20
605353881
Housse Dossier *backrest Cover
21
510004377
Axe Dos. Sup. *axle-backrest
22
510004379
Шайба
23
510004378
Втулка резиновая
24
605354649
Bras Ga *side Support Lh
25
605354650
Bras Dr *side Support Rh
26
205982586
Screw-socket Bn.hd.s.grip Iso.7380
27
605640015
Poignee Male *handle-male M8x80
28
605151397
Couvercle *tunnel Cover
29
M36036
Заклепка
30
207161644
Винт
31
605254706
Base De Siege *seat Box Weld
32
605452035
Axe De Blocage *lock Pin
34
605352460
Поролон
35
M28413
Baguette Etan. *sealing Strip
36
M546777
Cable Retenue *cable-retainer
37
M36037
Заклепка
38
M36489
Заклепка
39
M20009
Шайба
40
234161471
Шайба
11
36088
Rivet Avibulb 4.8x8.8 Zn(1=25pcs)
33
232561414
Гайка с тефлоном
