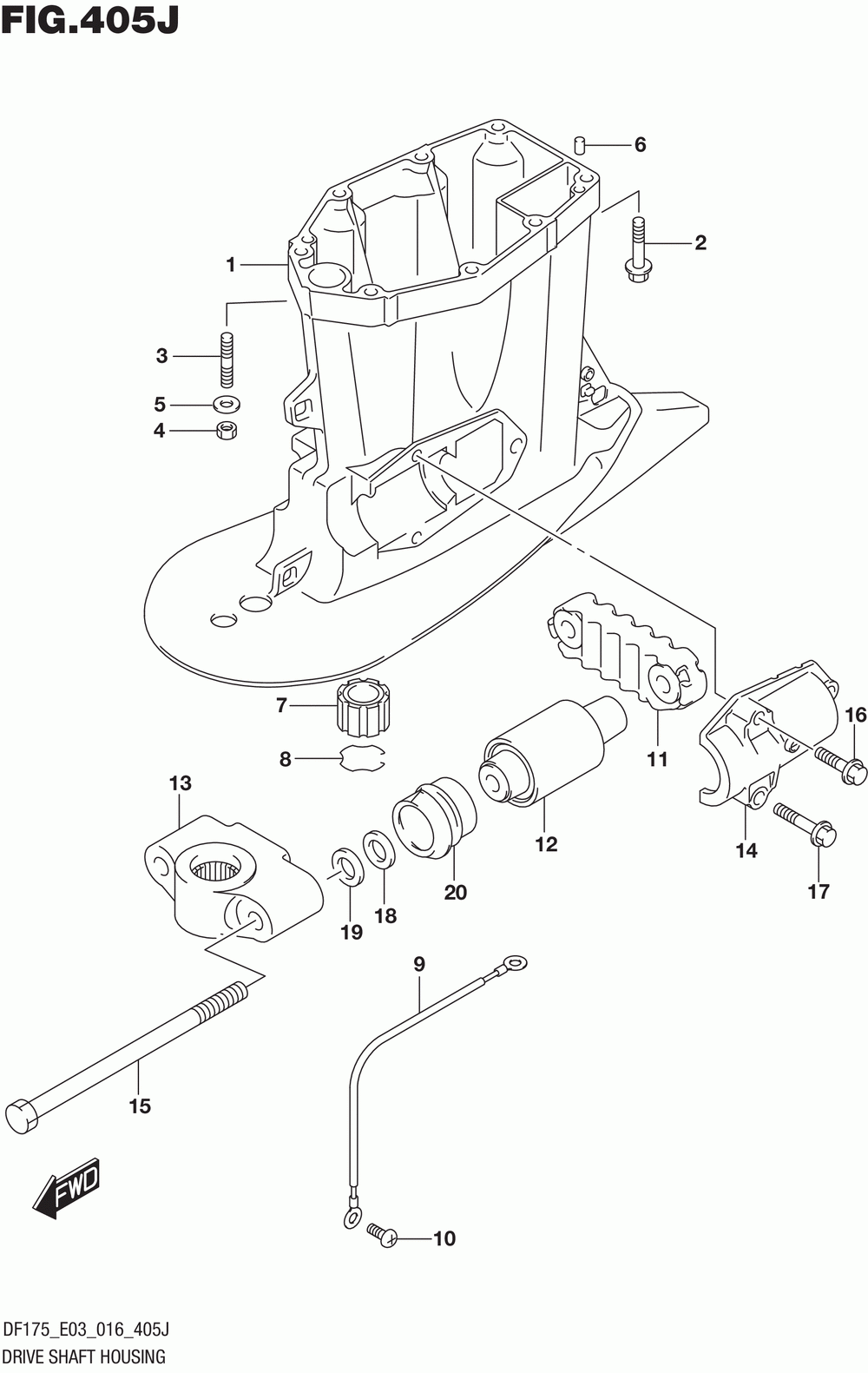

Drive shaft housing (df150st e03)

Suzuki Marine DF150/DF175 T, Z, ST,TG,ZG,
Suzuki Marine
#oem кодцена
1-1
52111-96J00-0EP
Housing, Drive S (w/transom(l))
1-2
52111-96J10-0EP
Housing, Drive S (w/transom(x))
2-1
09116-10181
Bolt, (10x44) (w/transom(l)w/transom(x))
3
09108-10150
Bolt, Drive Shaf (w/transom(l))
4
29141-93J20
Nut (w/transom(l))
5
09160-10141
Washer, 10.5x19x (w/transom(l))
6
09202-08006
Штифт
7
57130-87D10
Bush, Drive Shaf (w/transom(x))
8
09387-38002
Ring, Snap (w/transom(x))
9
36895-87D10
Lead Swivel
10
09125-06063
Screw 6x10 (sus
11
54151-96J01
Mount, Lower Thr
12
54160-96J01
Mount Comp, Lowe
13
54211-96J01-0EP
Bracket, Lower M
14
54221-96J00
Cover, Lower Mou
15
09100-14004
Bolt, Upper Moun
16
09116-10182
Bolt, (10x35)
17
09116-10180
Bolt, (10x50)
18
09160-16050
Washer, Lower Mo
20
54167-96J00
Mount, Lower Sid
