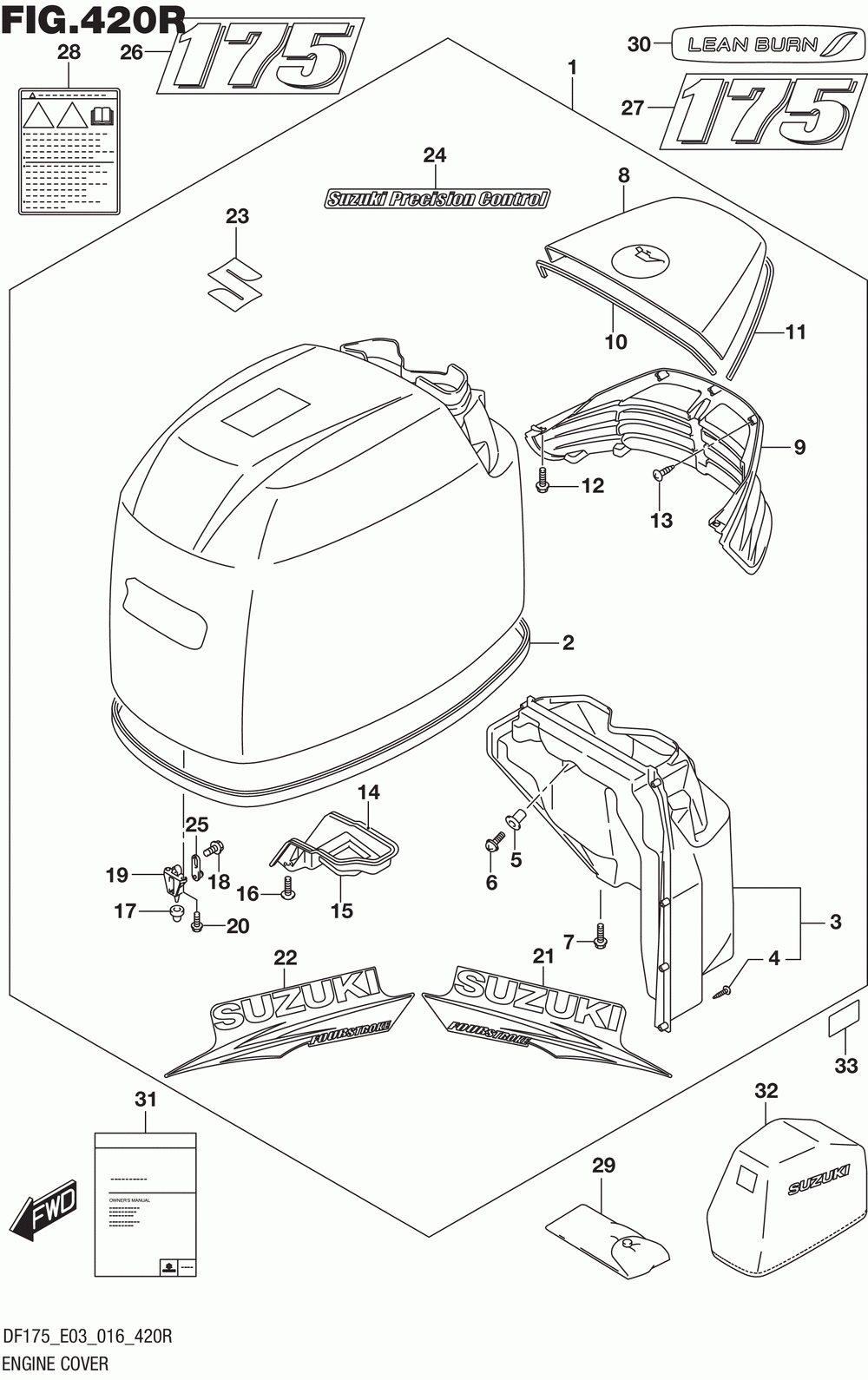

Engine cover (for 0ep) (df175zg e03)
Engine cover (for 0ep) (df175zg e03)

Engine cover (for 0ep) (df175zg e03)

Suzuki Marine DF150/DF175 T, Z, ST,TG,ZG,

Engine cover (for 0ep) (df175zg e03)

#

oem код

название

цена

1

61410-96890-0EP

Cover Set, Engin

Cover Set, Engin

2

Seal, Engine Cov

Seal, Engine Cov

3

Guide Assy, Air

Guide Assy, Air

4

Винт

Винт

5

Гайка

Гайка

6

Screw 5x16 Cros

Screw 5x16 Cros

7

Болт

Болт

8

61431-96J21-0EP

Handle, Tilt Up

Handle, Tilt Up

9

Louver, Tilt Up

Louver, Tilt Up

10

Seal, Tilt Up Ha

Seal, Tilt Up Ha

11

Seal, Tilt Up Ha

Seal, Tilt Up Ha

12

Болт

Болт

13

Винт

Винт

14

Guide, Air Vent

Guide, Air Vent

15

Seal, Air Vent

Seal, Air Vent

16

6 X 16 Cross Sc (0010 Per Pack)

6 X 16 Cross Sc (0010 Per Pack)

17

Подушка

Подушка

18

Болт

Болт

19

Bracket, Fastene

Bracket, Fastene

20

Bolt 6x16

Bolt 6x16

21

Stripe, Engine C

Stripe, Engine C

22

Stripe, Engine C

Stripe, Engine C

23

77811-54GC0-0PG

Chrome S Badge

Chrome S Badge

24

Decal(s.p.c.)

Decal(s.p.c.)

25

Fastener Comp

Fastener Comp

26

Mark, Emblem Fro

Mark, Emblem Fro

27

Mark, Emblem Rea

Mark, Emblem Rea

28

Label, Engine Co

Label, Engine Co

29

Комплект инструмента

Комплект инструмента

30

Decal, Lean Burn

Decal, Lean Burn

31-2

99011-96J80-03B

Df150/175tg/zg-

Df150/175tg/zg-

32

Cover, Weather (opt)

Cover, Weather (opt)
