Engine cover (for y5s) (df150t e03)
Engine cover (for y5s) (df150t e03)

Engine cover (for y5s) (df150t e03)

Suzuki Marine DF150/DF175 T, Z, ST,TG,ZG,

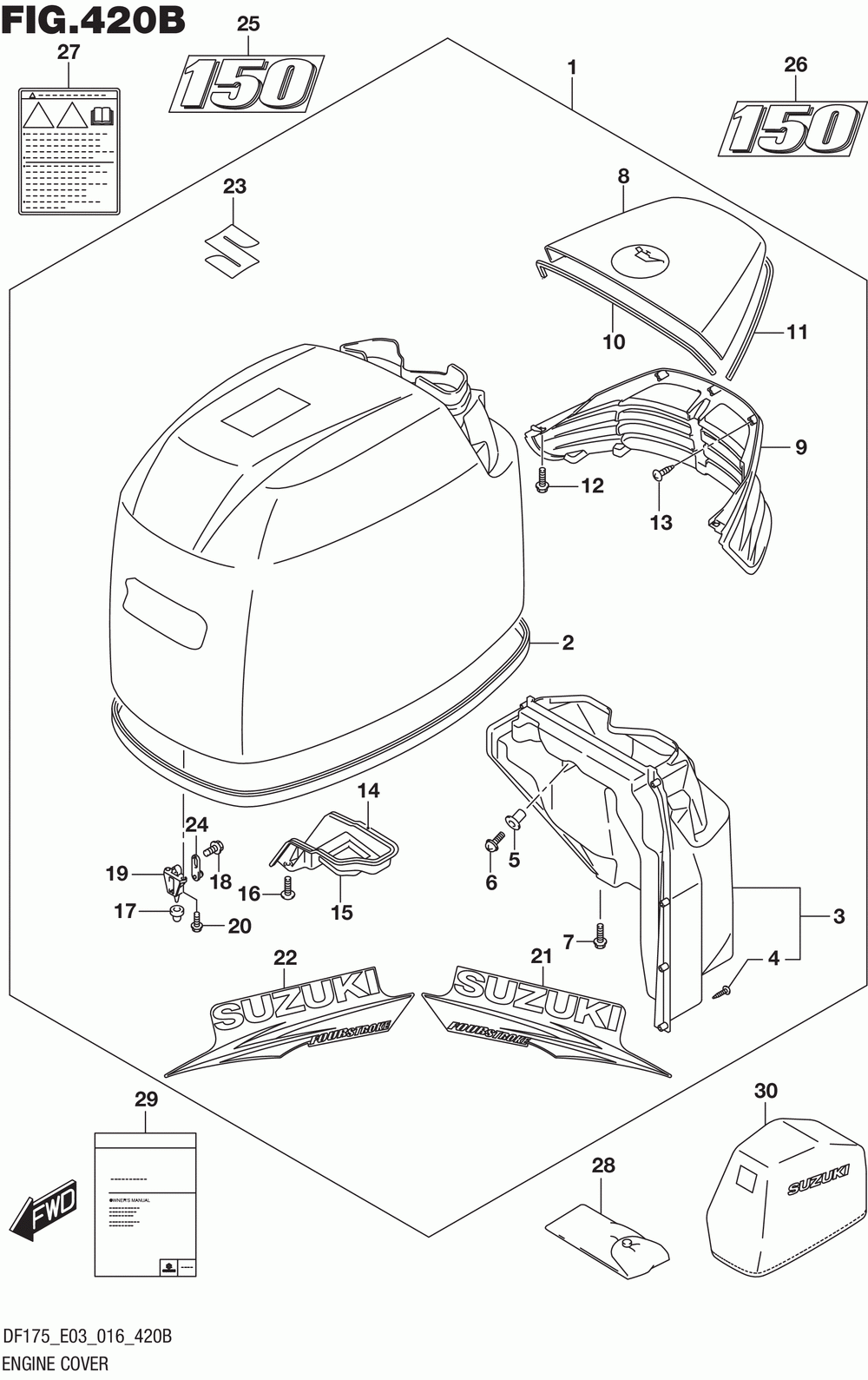

Engine cover (for y5s) (df150t e03)

#

oem код

название

цена

1

61410-96881-Y5S

Cover Set, Engin

Cover Set, Engin

2

Seal, Engine Cov

Seal, Engine Cov

3

Guide Assy, Air

Guide Assy, Air

4

Винт

Винт

5

Гайка

Гайка

6

Screw 5x16 Cros

Screw 5x16 Cros

7

Болт

Болт

8

61431-96J21-Y5S

Handle, Tilt Up

Handle, Tilt Up

9

Louver, Tilt Up

Louver, Tilt Up

10

Seal, Tilt Up Ha

Seal, Tilt Up Ha

11

Seal, Tilt Up Ha

Seal, Tilt Up Ha

12

Болт

Болт

13

Винт

Винт

14

Guide, Air Vent

Guide, Air Vent

15

Seal, Air Vent

Seal, Air Vent

16

6 X 16 Cross Sc (0010 Per Pack)

6 X 16 Cross Sc (0010 Per Pack)

17

Подушка

Подушка

18

Болт

Болт

19

Bracket, Fastene

Bracket, Fastene

20

Bolt 6x16

Bolt 6x16

21

Stripe, Eng Cove

Stripe, Eng Cove

22

Stripe, Eng Cove

Stripe, Eng Cove

23

77811-54GC0-0PG

Chrome S Badge

Chrome S Badge

24

Fastener Comp

Fastener Comp

25

Mark, Emblem(150

Mark, Emblem(150

27

Label, Engine Co

Label, Engine Co

28

Комплект инструмента

Комплект инструмента

29-2

99011-96J70-03B

Df150/175 -6100

Df150/175 -6100

30

Cover, Weather (opt)

Cover, Weather (opt)
