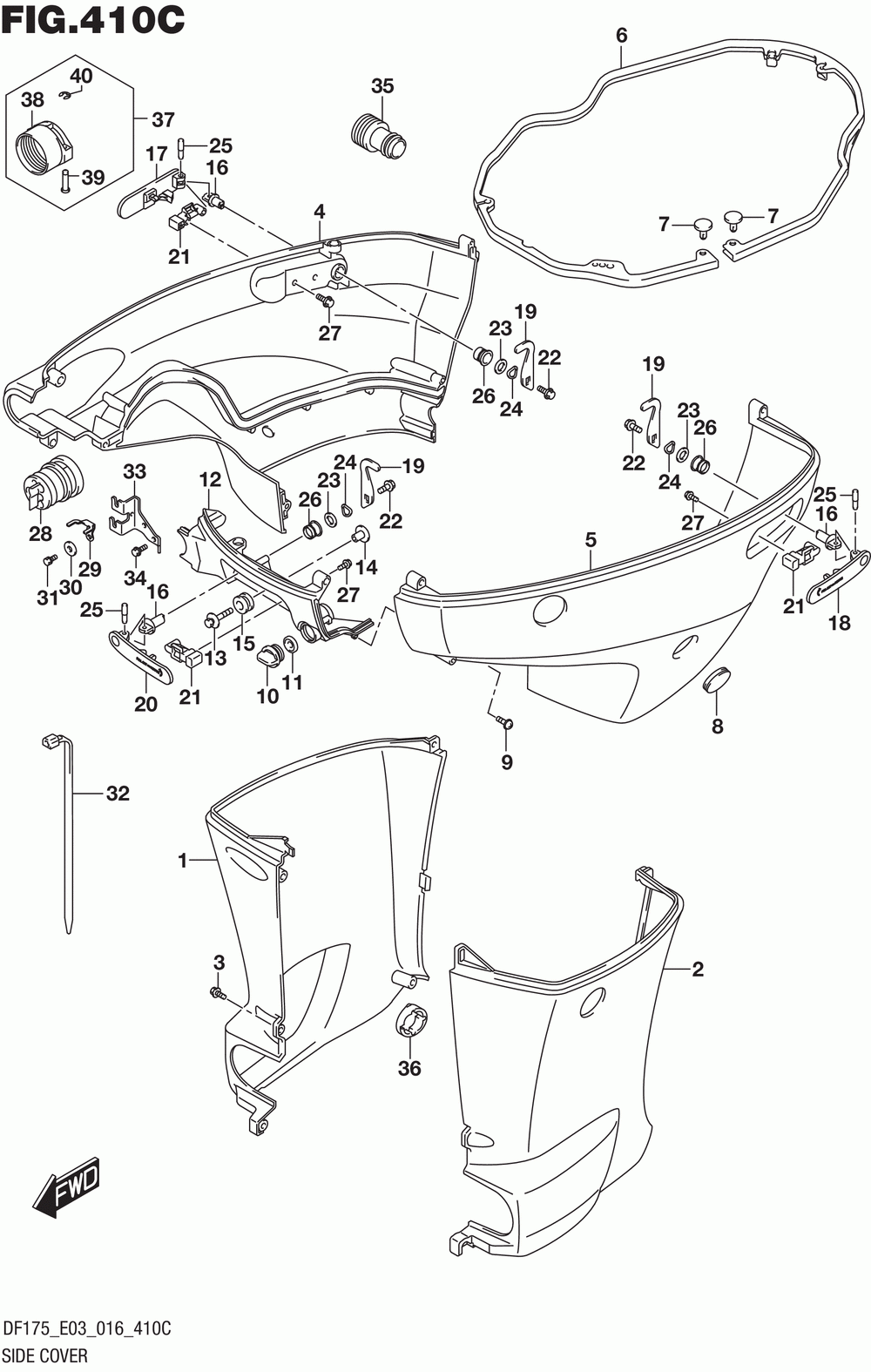

Side cover (df150z e03)

Suzuki Marine DF150/DF175 T, Z, ST,TG,ZG,
Suzuki Marine
#oem кодцена
1-1
61131-96J12-0EP
Cover, Oil Pan S
1-2
61131-96J12-Y5S
Cover, Oil Pan S
2-1
61141-96J12-0EP
Cover, Oil Pan P
2-2
61141-96J12-Y5S
Cover, Oil Pan P
3
09139-06135
Screw, Oil Pan C
4-1
61811-96J20-0EP
Cover, Side Stbd
4-2
61811-96J20-Y5S
Cover, Side Stbd
5-1
61821-96J11-0EP
Cover, Side Port
5-2
61821-96J11-Y5S
Cover, Side Port
6
61134-96J02
Seal, Side Cover
7
09409-05302-5PK
Штифт
8
61817-89J00
Plug, Side Cover
9
09136-06148
Screw, 6x35
10
17913-93J00
Plug, Water
11
17914-93J00
Gasket, Water Pl
12-1
61831-96J10-0EP
Панель передняя
12-2
61831-96J10-Y5S
Panel, Fr
13
09116-08163
Bolt(8x38)
14
09169-08039
15
09320-11013
Подушка
16
61632-93J00
Shaft, Engine Co
17
61633-96J02
Lever, Hook Rear
18
61634-96J02
Lever, Hook Rear
19
61641-93J10
Hook, Engine Cov
20
61645-96J02
Lever, Hook Fron
21
61673-96J02
Latch, Hook Leve
22
09116-06127
Bolt 6x12
23
09160-13014
Washer, 13.2x25x
24
09164-14008
Wave Washer
25
09202-04022
Pin, Hook Lever,
26
09306-13007
Втулка
27
01550-05107
Болт
28
61124-96J50
Grommet, R/con C
29
67343-96J00
Stopper, R/con C
30
09160-06047
Шайба
31
01570-06127
Болт
32
09407-25402
Зажим
33
67341-96J00
Holder, R/con Ca
34
01550-06167
Болт
35
17917-87L00
Connector, Flus
36
61136-96L00
Cushion, Oil Pan
37
67300-98J10
Hoseadtdf100-30 (opt)
38
67361-90J10
Adapter, Hose(ri (opt)
39
09208-06009
Din, Hose Adptr( (opt)
40
09383-04002
E Ring (opt)
