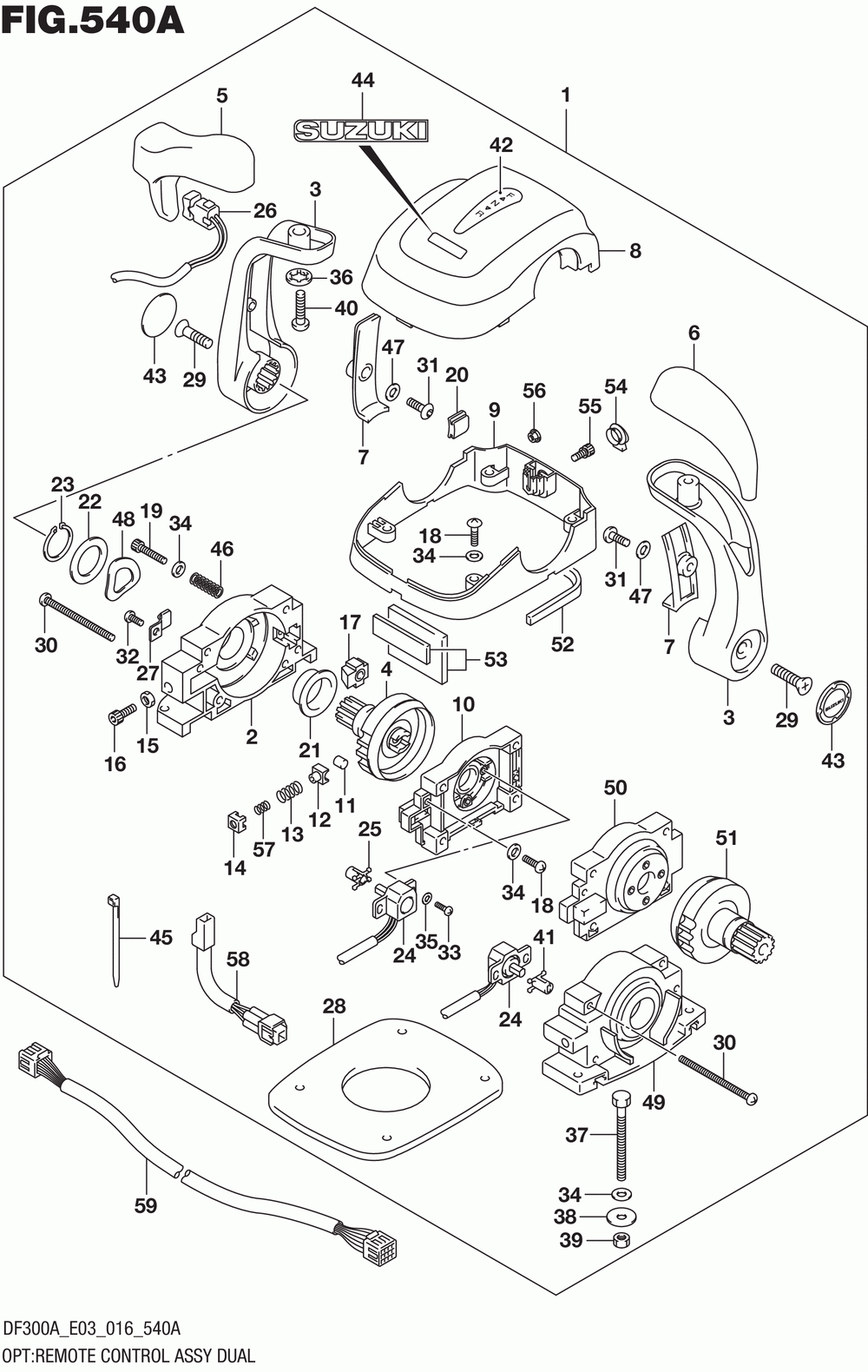

Opt:remote control assy dual
Opt:remote control assy dual

Opt:remote control assy dual

Suzuki Marine DF250/DF300 AP

Opt:remote control assy dual

#

oem код

название

цена

1

Df300 Multi Con

Df300 Multi Con

2

Кожух

Кожух

3

Lever, Handle

Lever, Handle

4

5

Grip, No.1

Grip, No.1

6

7

Cover, Lever

Cover, Lever

8

Cover, Remocon U

Cover, Remocon U

9

Cover, Remocon B

Cover, Remocon B

10

11

12

13

14

15

Гайка

Гайка

16

17

18

19

Screw 4x10

Screw 4x10

20

Grommet, Remocon

Grommet, Remocon

21

Bush, Drive Shaf

Bush, Drive Shaf

22

23

24

Potentiometer

Potentiometer

25

Lever, Potentiom

Lever, Potentiom

26

Switch Assy, Ptt

Switch Assy, Ptt

27

28

29

Screw, 8x30

Screw, 8x30

30

31

Screw, Lever Cov

Screw, Lever Cov

32

33

Screw, Remo-con

Screw, Remo-con

34

35

36

Шайба

Шайба

37

Болт

Болт

38

Speedometer Was

Speedometer Was

39

Гайка

Гайка

40

41

Lever, Potentiom

Lever, Potentiom

42

Mark (f-n-r)

Mark (f-n-r)

43

Mark, Lever (suz

Mark, Lever (suz

44

Emblem (suzuki)

Emblem (suzuki)

45

46

47

48

49

50

51

52

53

54

Grommet, Remocon

Grommet, Remocon

55

Bolt, Upper Cove

Bolt, Upper Cove

56

Nut, Upper Cover

Nut, Upper Cover

57

58

Condenser, Adapt

Condenser, Adapt

59-1

Wire Assy, Remot (l:6500)

Wire Assy, Remot (l:6500)

59-2

Df300 Main Harn (l:9500)

Df300 Main Harn (l:9500)
