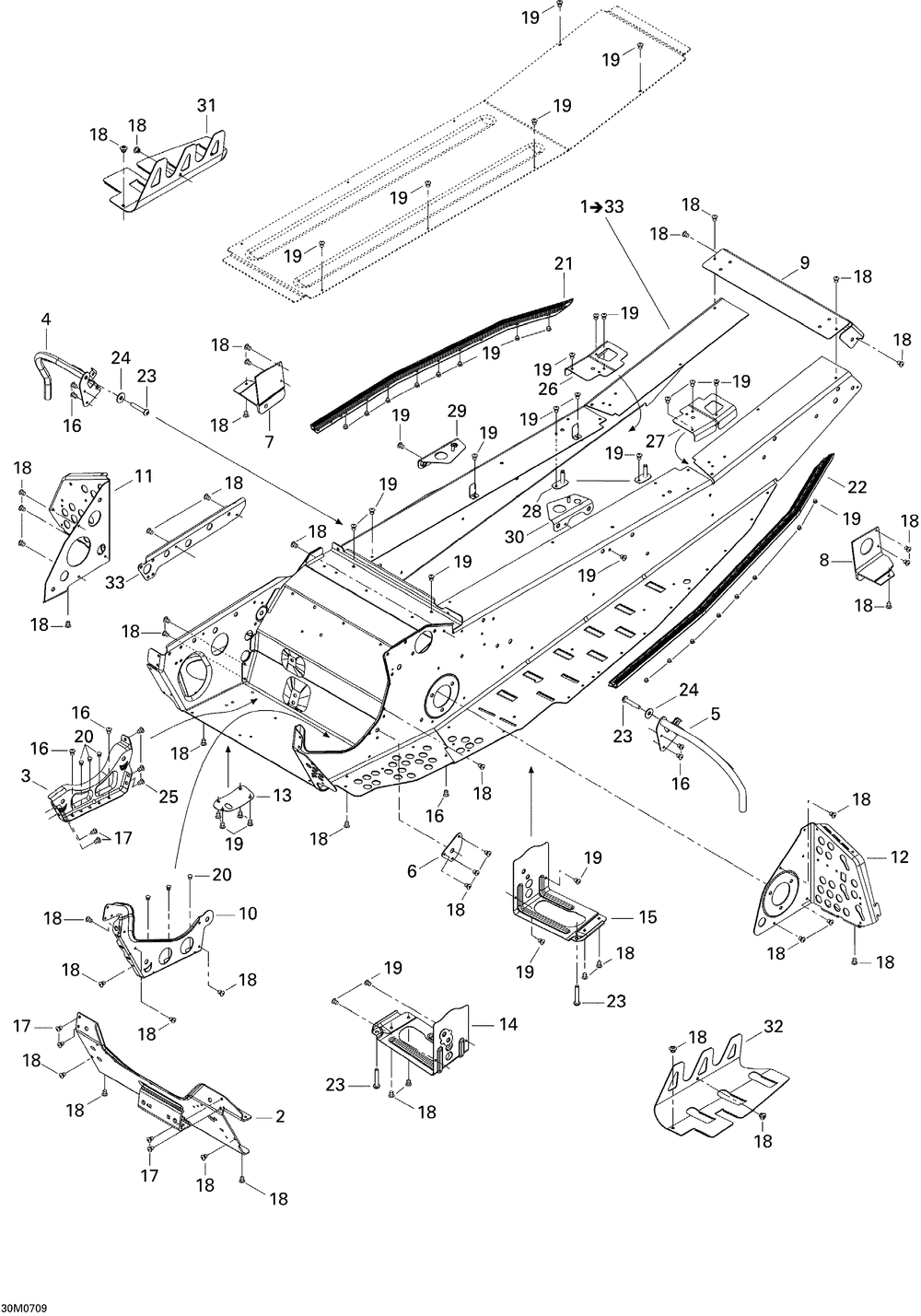

Рама

Ski-Doo (Bombardier) GSX 550F
Ski-Doo (Bombardier)
#oem кодцена
1
415129305
Chassis *frame Service (includes 1 To 33 )
2
518324114
Tablier Avant S*front Pan Weld
3
518323346
Supp.moteur *engine Support
4
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
5
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
6
518323507
Renfort Ext. *reinf. Outer
7
518324488
Att.susp.dr. *slide Brkt Rh
8
518324489
Att.susp.ga. *slide Brkt Lh
9
518324279
Capuchon *rear Cap
10
518323241
Renfort Int. *inner Reinforcement
11
518323805
Renfort Droit *rh.footrest
12
518324527
Renfort Gauche *reinforcement
13
518324169
Пластина
14
518324634
Renfort Droit *reinforcement
15
518324635
Renfort Gauche *reinforcement
16
390909200
Заклепка
17
390909100
Заклепка
18
390402200
Заклепка 3/16
19
390402400
Заклепка 3/16
20
390910300
Rivet Henrob *rivet-henrob
21
518324953
Rouleau Droit *roller-rh
22
518324954
Rouleau Gauche *roller-lh
23
205982086
Screw-socket Bn.hd.s.grip Iso.7380
24
234082410
Шайба
25
293150096
Заклепка
26
518324431
Renf.tunnel Dr.*reinf-frame Rh
27
518324432
Renf.tunnel Ga.*reinf-frame Lh
28
518322791
Att.reserv.so. *brkt-tank Weld
29
518324385
Renfort Tunnel *frame Form. Reinf.
30
518324386
Renfort Tunnel *frame Form. Reinf.
31
518325268
Doublure Tun.dr*liner-tunnel Rh
32
518325269
Doublure Tunnel*liner-tunnel Lh
33
518323328
Raidisseur *stiffener
