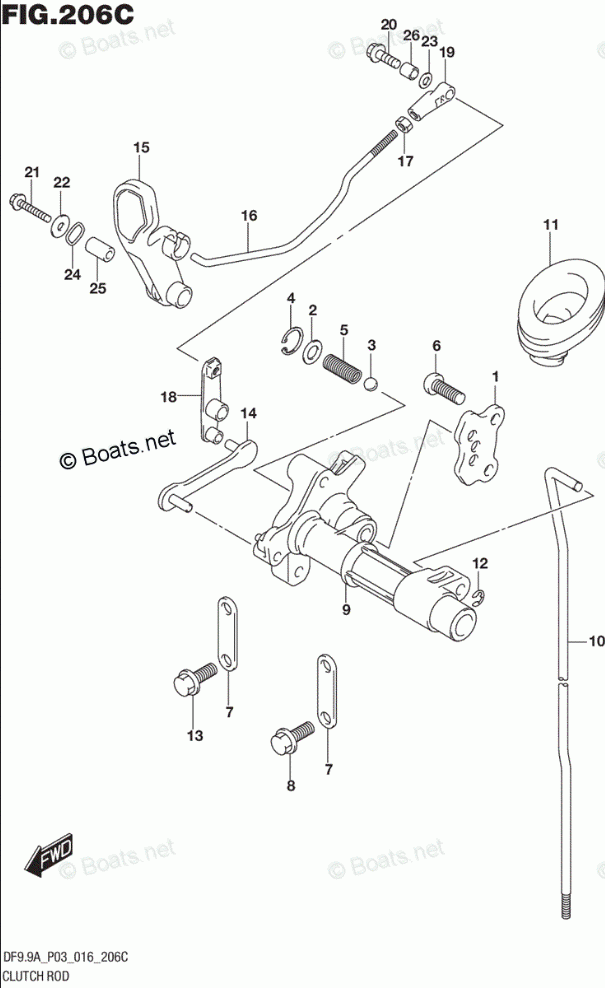

Clutch Rod (DF9.9A P03)
Clutch Rod (DF9.9A P03)

Clutch Rod (DF9.9A P03)

Suzuki Marine DF 9.9ARL

Clutch Rod (DF9.9A P03)

#

oem код

название

цена

1

PLATE, CLUTCH NOTCH

PLATE, CLUTCH NOTCH

2

WASHER (6.5X13X1.0)

WASHER (6.5X13X1.0)

3

BALL

BALL

4

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

5

SPRING

SPRING

6

SCREW

SCREW

7

HOLDER, CLUTCH SHAFT

HOLDER, CLUTCH SHAFT

8

BOLT

BOLT

9

SHAFT, CLUTCH LEVER

SHAFT, CLUTCH LEVER

10-2

ROD, CLUTCH (L) *{W/TRANSOM(L)}*

ROD, CLUTCH (L) *{W/TRANSOM(L)}*

10-1

ROD, CLUTCH (S) *{W/TRANSOM(S)}*

ROD, CLUTCH (S) *{W/TRANSOM(S)}*

11

BOOT, CLUTCH ROD

BOOT, CLUTCH ROD

12

E RING

E RING

13

BOLT

BOLT

14

LINK, SHIFT DRUM

LINK, SHIFT DRUM

15

LEVER, CLUTCH

LEVER, CLUTCH

16

LINK, CLUTCH LEVER

LINK, CLUTCH LEVER

17

NUT

NUT

18

LEVER, CLUTCH CONTROL

LEVER, CLUTCH CONTROL

19

CONNECTOR, CLUTCH LINK

CONNECTOR, CLUTCH LINK

20

BOLT

BOLT

21

BOLT (6X35)

BOLT (6X35)

22

WASHER (6.5X20X1.5)

WASHER (6.5X20X1.5)

23

WASHER (6X14X1)

WASHER (6X14X1)

24

WASHER

WASHER

25

SPACER (6.2X12.6X21)

SPACER (6.2X12.6X21)

26

SPACER (6.1X8X10)

SPACER (6.1X8X10)
