Opt: Meter (1) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF 80ATL (2016)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Opt: Meter (1)

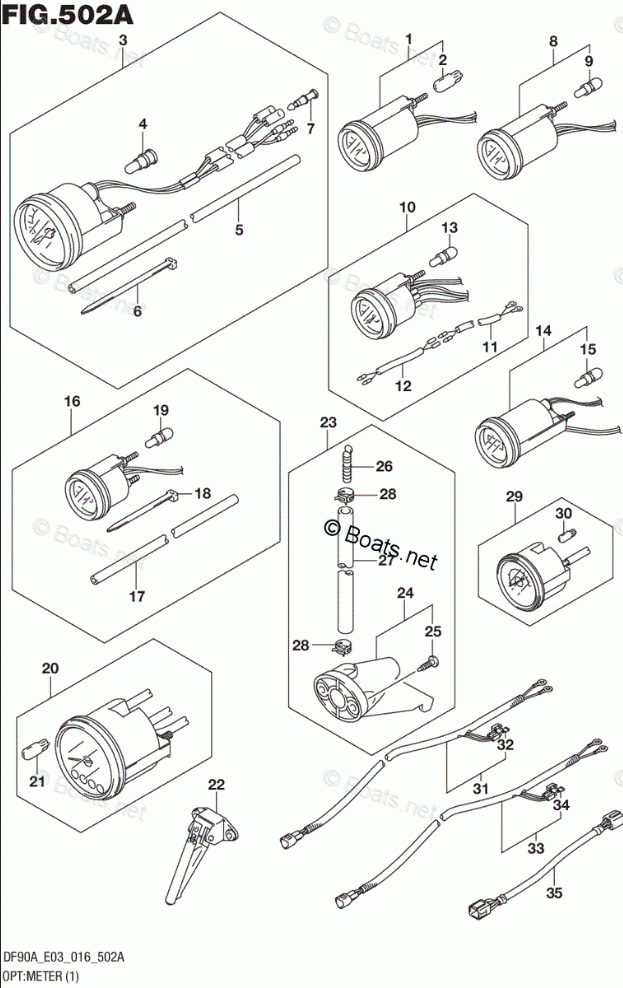

Suzuki Marine DF 80ATL

Opt: Meter (1)

#

oem код

название

цена

1-1

METER ASSY, TRIM *{BLACK}*

METER ASSY, TRIM *{BLACK}*

1-2

METER ASSY, TRIM *{WHITE}*

METER ASSY, TRIM *{WHITE}*

2

BULB (12V,1.7W)

BULB (12V,1.7W)

3-4

SPEEDOMETER ASSY *{MAX 80KM/H WHITE}*

SPEEDOMETER ASSY *{MAX 80KM/H WHITE}*

3-6

SPEEDOMETER ASSY *{MAX 45KNOTS WHITE}*

SPEEDOMETER ASSY *{MAX 45KNOTS WHITE}*

3-5

SPEEDOMETER ASSY *{MAX 45KNOTS BLACK}*

SPEEDOMETER ASSY *{MAX 45KNOTS BLACK}*

3-3

SPEEDOMETER ASSY *{MAX 80KM/H BLACK}*

SPEEDOMETER ASSY *{MAX 80KM/H BLACK}*

3-2

SPEEDOMETER ASSY *{MAX 130KM/H WHITE}*

SPEEDOMETER ASSY *{MAX 130KM/H WHITE}*

3-1

SPEEDOMETER ASSY *{MAX 130KM/H BLACK}*

SPEEDOMETER ASSY *{MAX 130KM/H BLACK}*

3-7

SPEEDOMETER ASSY *{MAX 65KNOTS WHITE}*

SPEEDOMETER ASSY *{MAX 65KNOTS WHITE}*

4

BULB (12V,3.4W)

BULB (12V,3.4W)

5

TUBE

TUBE

6

CLAMP (L:145)

CLAMP (L:145)

7

TERMINAL, RESIN

TERMINAL, RESIN

8-1

METER ASSY, VOLTAGE *{BLACK}*

METER ASSY, VOLTAGE *{BLACK}*

8-2

METER ASSY, VOLTAGE *{WHITE}*

METER ASSY, VOLTAGE *{WHITE}*

9

BULB (12V,3W,T6.5)

BULB (12V,3W,T6.5)

10-2

GAUGE ASSY, FUEL *{WHITE}*

GAUGE ASSY, FUEL *{WHITE}*

10-1

GAUGE ASSY, FUEL *{BLACK}*

GAUGE ASSY, FUEL *{BLACK}*

11

LEAD, FUEL GAUGE

LEAD, FUEL GAUGE

12

ADAPTER, FUEL GAUGE

ADAPTER, FUEL GAUGE

13

BULB (12V,3W,T6.5)

BULB (12V,3W,T6.5)

14-1

METER ASSY, HOUR *{BLACK}*

METER ASSY, HOUR *{BLACK}*

14-2

METER ASSY, HOUR *{WHITE}*

METER ASSY, HOUR *{WHITE}*

15

BULB (12V,3W,T6.5)

BULB (12V,3W,T6.5)

16-1

GAUGE ASSY, WATER PRESSURE *{15PSI BLACK}*

GAUGE ASSY, WATER PRESSURE *{15PSI BLACK}*

16-2

GAUGE ASSY, WATER PRESSURE *{15PSI WHITE}*

GAUGE ASSY, WATER PRESSURE *{15PSI WHITE}*

17

TUBE

TUBE

18

CLAMP (L:145)

CLAMP (L:145)

19

BULB (12V,3W,T6.5)

BULB (12V,3W,T6.5)

20-1

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

20-2

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

21

BULB (12V,1.7W)

BULB (12V,1.7W)

22

SENDER ASSY, SPEEDOMETER

SENDER ASSY, SPEEDOMETER

23

KIT, SPEEDOMETER SUB

KIT, SPEEDOMETER SUB

24

SENDER ASSY, SPEEDOMETER

SENDER ASSY, SPEEDOMETER

25

SCREW

SCREW

26

UNION, SPEEDOMETER HOSE

UNION, SPEEDOMETER HOSE

27

09355-40805-00B

HOSE (4X8X2000) *{L:2000->1700}*

HOSE (4X8X2000) *{L:2000->1700}*

28

CLAMP (L:100)

CLAMP (L:100)

29-2

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

TACHOMETER ASSY, WITH MONITOR *{WHITE}*

29-1

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

TACHOMETER ASSY, WITH MONITOR *{BLACK}*

30

BULB (12V,1.7W)

BULB (12V,1.7W)

31

WIRE, GAUGE POWER (2.5M)

WIRE, GAUGE POWER (2.5M)

32

FUSE (5A)

FUSE (5A)

33

HARNESS, ACTIVE HUB PWR (6M)

HARNESS, ACTIVE HUB PWR (6M)

34

FUSE (5A)

FUSE (5A)

35

WIRE, TRIM METER

WIRE, TRIM METER
