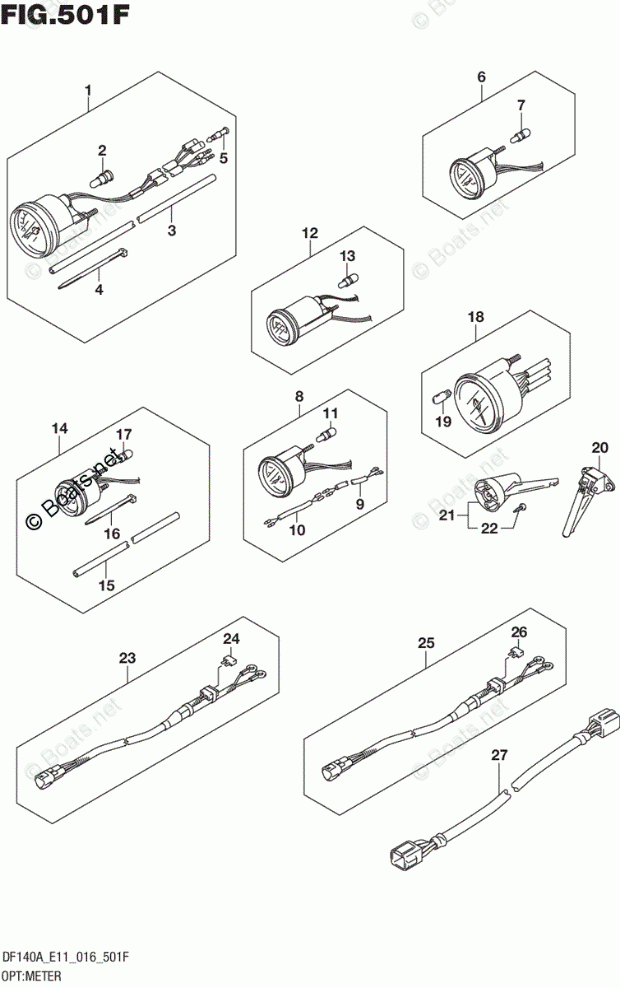

Opt:Meter (DF140AT E11)

Suzuki Marine DF 140ATX
Suzuki Marine
#oem кодцена
1-6
34100-93J52
SPEEDOMETER ASSY *{MAX 45KNOTS WHITE}*
1-2
34100-93J12
SPEEDOMETER ASSY *{MAX 130KM/H WHITE}*
1-7
34100-93J61
SPEEDOMETER ASSY *{MAX 65KNOTS WHITE}*
1-5
34100-93J41
SPEEDOMETER ASSY *{MAX 45KNOTS BLACK}*
1-4
34100-93J32
SPEEDOMETER ASSY *{MAX 80KM/H WHITE}*
1-3
34100-93J21
SPEEDOMETER ASSY *{MAX 80KM/H BLACK}*
1-1
34100-93J01
SPEEDOMETER ASSY *{MAX 130KM/H BLACK}*
2
09471-12028
BULB (12V,3.4W)
3
34191-92E00
TUBE
4
09407-14407
CLAMP (L:145)
5
36615-96300
TERMINAL, RESIN
6-1
34600-93J01
METER ASSY, VOLTAGE *{BLACK}*
6-2
34600-93J12
METER ASSY, VOLTAGE *{WHITE}*
7
09471-12103
BULB (12V,3W,T6.5)
8-1
34300-93J01
GAUGE ASSY, FUEL *{BLACK}*
8-2
34300-93J12
GAUGE ASSY, FUEL *{WHITE}*
9
34310-92E00
LEAD, FUEL GAUGE
10
34360-92E00
ADAPTER, FUEL GAUGE
11
09471-12103
BULB (12V,3W,T6.5)
12-2
34500-93J12
METER ASSY, HOUR *{WHITE}*
12-1
34500-93J01
METER ASSY, HOUR *{BLACK}*
13
09471-12103
BULB (12V,3W,T6.5)
14-2
34650-93J32
GAUGE ASSY, WATER PRESSURE *{15PSI WHITE}*
14-1
34650-93J21
GAUGE ASSY, WATER PRESSURE *{15PSI BLACK}*
15
34191-92E00
TUBE
16
09407-14407
CLAMP (L:145)
17
09471-12103
BULB (12V,3W,T6.5)
18-1
34200-93J41
TACHOMETER ASSY, WITH MONITOR *{BLACK}*
18-2
34200-93J52
TACHOMETER ASSY, WITH MONITOR *{WHITE}*
19
09471-12077
BULB (12V,1.7W)
20
34190-87D00
SENDER ASSY, SPEEDOMETER
21
34190-95500
SENDER ASSY, SPEEDOMETER
22
03112-0630B
SCREW
23
36663-98J00
WIRE, GAUGE POWER (2.5M)
24
09481-05501
FUSE (5A)
25
36663-98J10
WIRE, GAUGE POWER (6M)
26
09481-05501
FUSE (5A)
27
36682-92E00
WIRE, TRIM METER EXT (L:6500)
