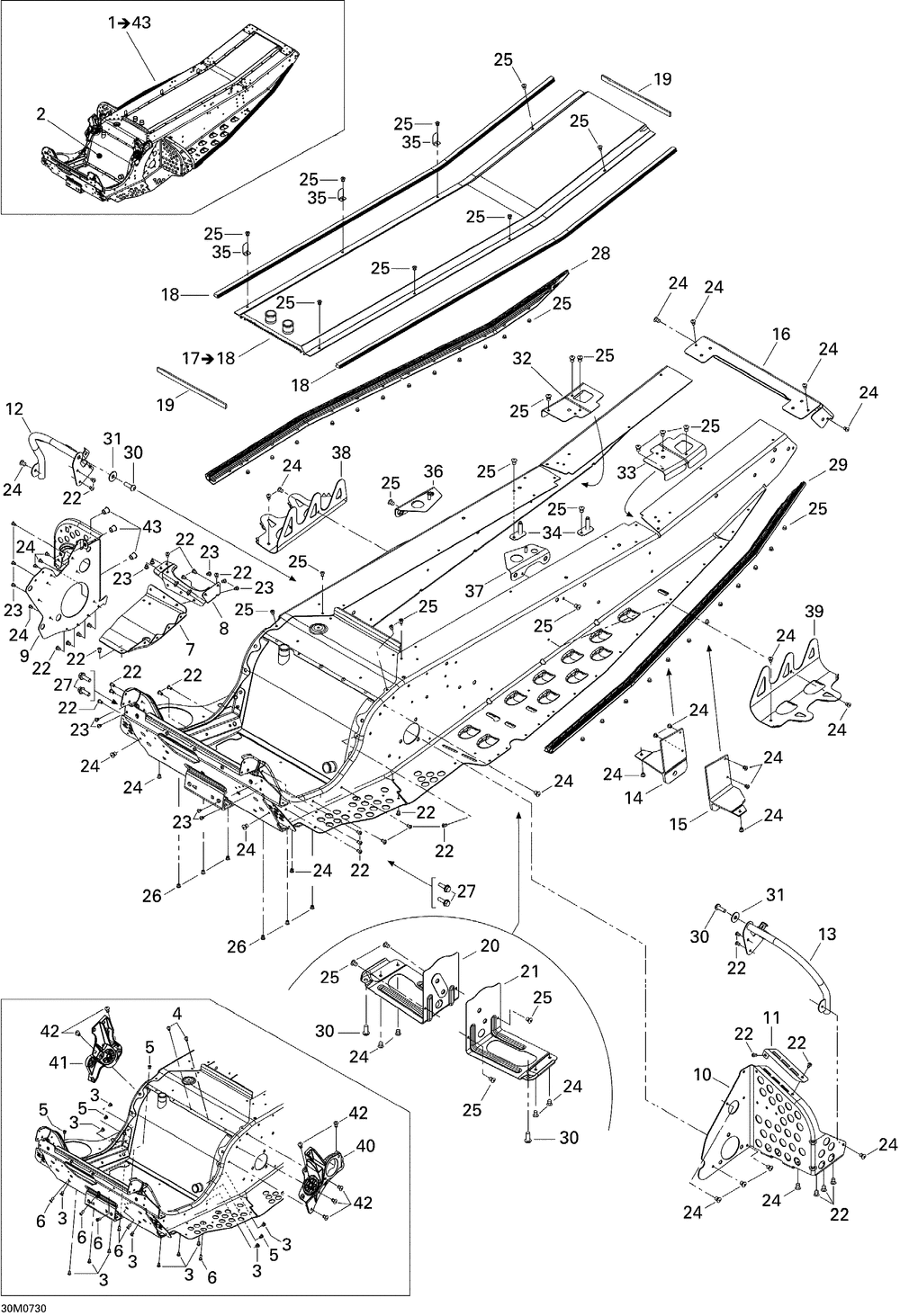

Рама

Ski-Doo (Bombardier) MACH Z Adrenaline
Ski-Doo (Bombardier)
#oem кодцена
1
415129244
Chassis *frame Service (includes 1 To 43 )
3
390909200
Заклепка
4
390909100
Заклепка
5
390402200
Заклепка 3/16
6
390402300
Заклепка 3/16
11
518323105
Пластина
12
518324098
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
13
518324097
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
14
518323572
Att.susp.dr. *slide Brkt Rh
15
518323573
Att.susp.ga. *slide Brkt Lh
16
518324409
Capuchon *rear Cap
17
518324242
Radiateur Arr.s*front Rad. Weld. (includes 17 To 18 )
18
415012300
Защита
19
293200097
Прокладка
20
518323952
Marche-pied Dr.*footrest-rh
21
518323954
Marche-pied Ga.*footrest-lh
25
390402400
Заклепка 3/16
26
390910300
Rivet Henrob *rivet-henrob
27
207582544
Винт
28
518325000
Rouleau Droit *roller-rh
29
518325001
Rouleau Gauche *roller-lh
30
205982086
Screw-socket Bn.hd.s.grip Iso.7380
31
234082410
Шайба
32
518324431
Renf.tunnel Dr.*reinf-frame Rh
33
518324432
Renf.tunnel Ga.*reinf-frame Lh
34
518322791
Att.reserv.so. *brkt-tank Weld
36
518324385
Renfort Tunnel *frame Form. Reinf.
37
518324386
Renfort Tunnel *frame Form. Reinf.
38
518324759
Doublure Tun.dr*liner-tunnel Rh
39
518324760
Doublure Tunnel*liner-tunnel Lh
40
518323715
Support Moteur *engine Support
41
518323716
Support Moteur *engine Support
42
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
43
415107300
Вставка
22
390909200
Заклепка
23
390909100
Заклепка
24
390402200
Заклепка 3/16
