Рама

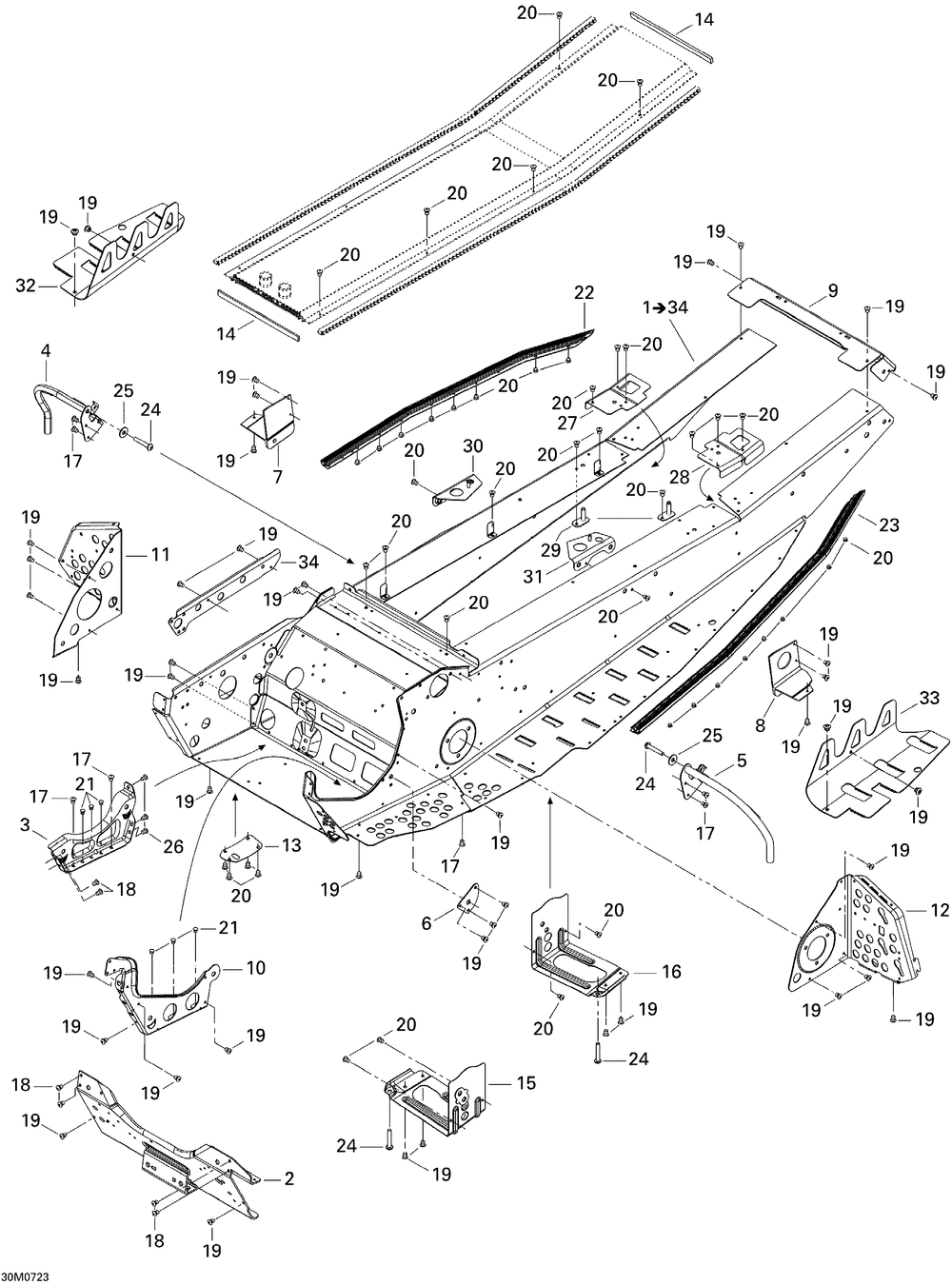

Ski-Doo (Bombardier) MX Z X 800HO PTEK
Ski-Doo (Bombardier)
#oem кодцена
1
415129233
Chassis *frame Service (includes 1 To 34 )
2
518323239
Tablier Avant S*front Pan Weld
3
518323346
Supp.moteur *engine Support
4
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
5
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
6
518323507
Renfort Ext. *reinf. Outer
7
518324488
Att.susp.dr. *slide Brkt Rh
8
518324489
Att.susp.ga. *slide Brkt Lh
9
518325180
Capuchon *rear Cap
10
518323241
Renfort Int. *inner Reinforcement
11
518323805
Renfort Droit *rh.footrest
12
518324527
Renfort Gauche *reinforcement
13
518324169
Пластина
14
293200104
Прокладка
15
518324634
Renfort Droit *reinforcement
16
518324635
Renfort Gauche *reinforcement
17
390909200
Заклепка
18
390909100
Заклепка
19
390402200
Заклепка 3/16
20
390402400
Заклепка 3/16
21
390910300
Rivet Henrob *rivet-henrob
22
518324953
Rouleau Droit *roller-rh
23
518324954
Rouleau Gauche *roller-lh
24
205982086
Screw-socket Bn.hd.s.grip Iso.7380
25
234082410
Шайба
26
293150096
Заклепка
27
518324431
Renf.tunnel Dr.*reinf-frame Rh
28
518324432
Renf.tunnel Ga.*reinf-frame Lh
29
518322791
Att.reserv.so. *brkt-tank Weld
30
518324385
Renfort Tunnel *frame Form. Reinf.
31
518324386
Renfort Tunnel *frame Form. Reinf.
32
518325268
Doublure Tun.dr*liner-tunnel Rh
33
518325269
Doublure Tunnel*liner-tunnel Lh
34
518323328
Raidisseur *stiffener
