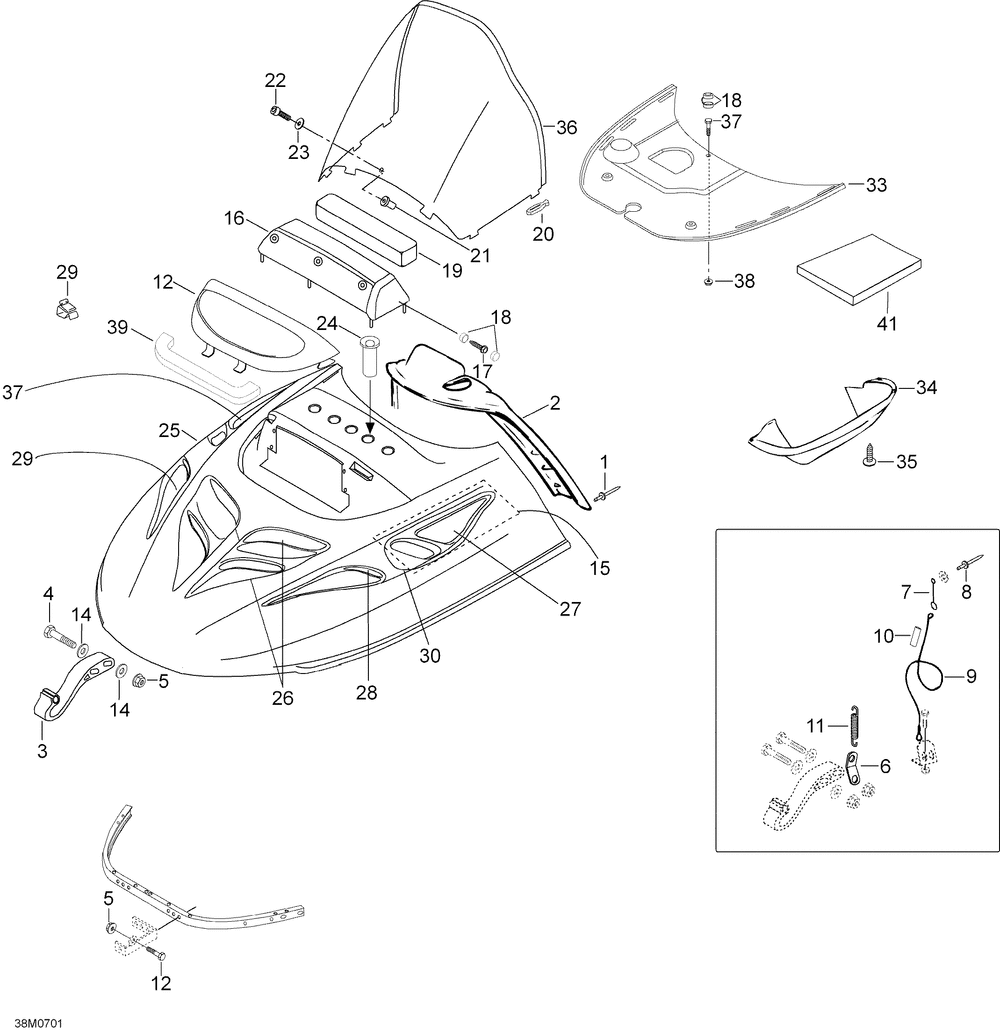

09- hood 550f suv

Ski-Doo (Bombardier) Skandic 550F SUV
Ski-Doo (Bombardier)
#oem кодцена
1
M36036
Заклепка
2
605154897
Console *console (suv 550 )
3
M5343075
Петля
4
M40193
Винт
5
M33200
Гайка M6
6
M5443123
Plaque *plate Spring
7
605449395
Retenu De Cable*retainer Cable (suv 550 )
8
M36005
Заклепка
9
M5346947
Cable Retenue *cable-retainer (550 Suv )
10
M39023
Оболочка
11
M5442675
Пружина
12
605252351
Couvercle *headlight Cover
13
M40084
Screw M6x45
14
M20009
Шайба
15
M44001
Рефлектор
16
605149010
Couvercle Admi*cover Intake
17
M40901
Винт
18
M282000
Couvercle *cover
19
605349056
Filtre *filter
20
570023800
Loquet Pare-bri*latch-windshield
21
M28055
Nut-well
22
M40156
Винт
23
M20008
Шайба
24
605449084
Tuyau *tube Short
25
605149586
Capot *hood Wt Fc 04 (suv 550 (yellow), Includes 25 To 29 )
25
605150039
Hood Pre Ass Y, Black, 550 F Eu (suv 550 (black), Includes 25 To 29 )
26
M5142669
Grille Avant *grill-front
27
M5242670
Grille Sup.ga. *grill-upper Lh (suv 550 )
27
M5242671
Grille Sup.dr. *grill-upper Rh
28
M5242672
Grille Inf.dr. *grill-lower Rh
28
M5342673
Grille Inf.ga. *grill-lower Lh
29
414227300
Пружина
33
M5246742
Conduit D Air *duct-air
34
M5146986
Conduit D Air *duct-air (suv 550 )
35
414644300
Заглушка
36
M5147892
Pare-brise *windshield
37
M40179
Screw M5x25
38
M33062
Гайка М5
41
414631900
Шумоизоляция
5
233261414
Гайка
