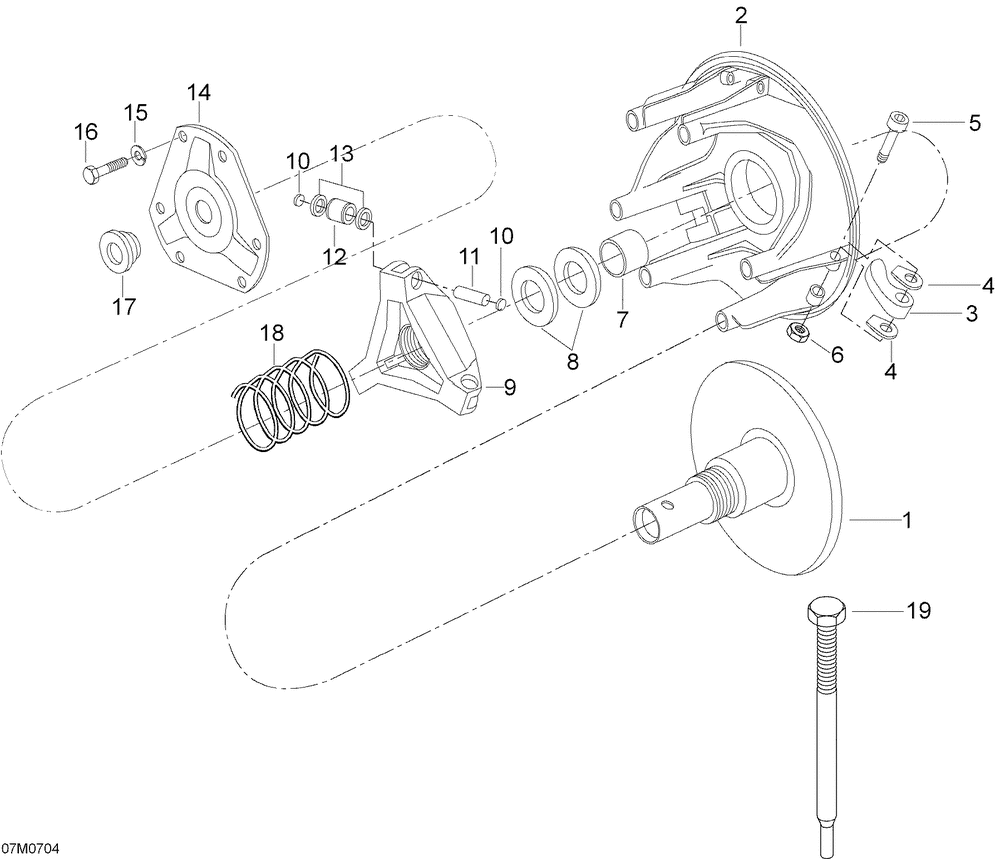

Вариатор

Ski-Doo (Bombardier) Skandic LT 440F
Ski-Doo (Bombardier)
#oem кодцена
1
M140028
Flasque Int. *flange-inner
2
M140024
Flasque Ext. *flange-outer
3
M140030
Rampe *ramp
M140042
Ens.axe Levier *kit-arm Pin
7
M140023
Втулка
8
M140022
Cale Croisillon*shim-spider
9
M140017
Croisillon Ass.*spider-assy.
10
M140021
6 Guides*6 Guides Assembly
11
M140020
Cheville *pin
12
M140018
Ens.rouleau *kit-roller
13
M140019
Шайба
14
M140016
Couvercle + Do.*cover-w/bushi.
M140043
Ens.boulon Ron.*kit-bolt Washer
17
M140013
Rondelle *washer-pivot
18
M140031
Ressort Arg/no.*spring-sil/bl.
19
529025000
Extrac.poulie *puller-drive
20
529035826
Outil Conique *tool-tapered (not Shown )
21
529025200
Outil Croisill.*tool-spider (not Shown )
22
503102602
Rondelle *washer (not Shown )
3
M14121
Poulie*pulley
7
M14121
Poulie*pulley
12
M14121
Poulie*pulley
18
M14121
Poulie*pulley
