ТРАНСМИССИЯ Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF200AP (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2015
DF200AP

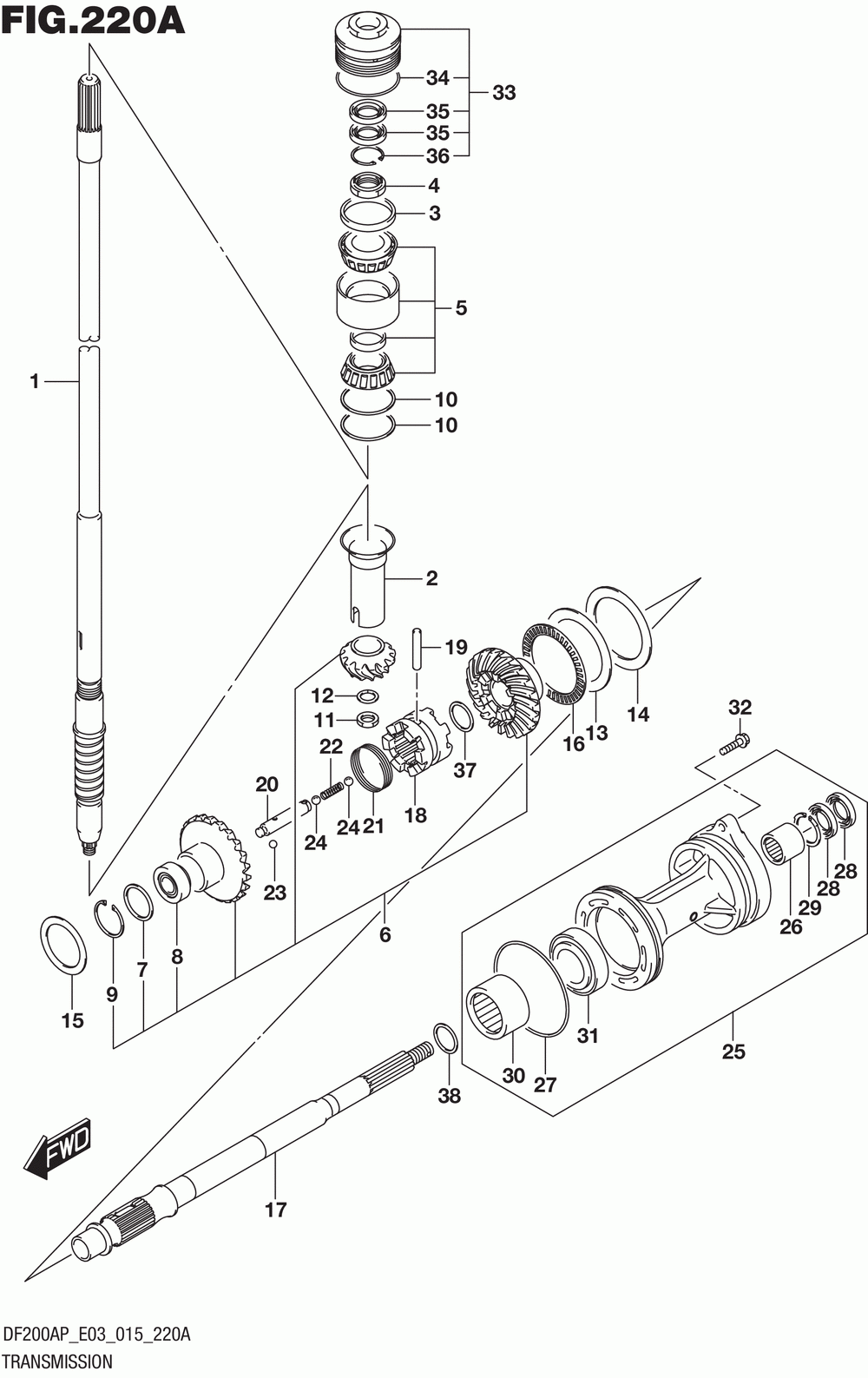

ТРАНСМИССИЯ
ТРАНСМИССИЯ

ТРАНСМИССИЯ

Suzuki Marine DF200AP

ТРАНСМИССИЯ

#

oem код

название

цена

1-1

Shaft, Drive(l) (w/transom(l))

Shaft, Drive(l) (w/transom(l))

1-2

Shaft, Drive (x) (w/transom(x))

Shaft, Drive (x) (w/transom(x))

2

Collar, Drive Sh

Collar, Drive Sh

3

Spacer, Drive Sf

Spacer, Drive Sf

4

Nut, Drive Sft B

Nut, Drive Sft B

5

Bearing, Drive S

Bearing, Drive S

7

Washer(41x52x3)

Washer(41x52x3)

8

Bearing(25x52x1

Bearing(25x52x1

9

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

10-1

Shim, Drive Shaf

Shim, Drive Shaf

10-2

Shim, Drive Shaf

Shim, Drive Shaf

10-3

Shim, Drive Shaf

Shim, Drive Shaf

10-4

Shim, Drive Shaf

Shim, Drive Shaf

10-5

Shim, Drive Shaf

Shim, Drive Shaf

10-6

Shim, Drive Shaf

Shim, Drive Shaf

10-7

Shim, Drive Shaf

Shim, Drive Shaf

10-8

Shim, Drive Shaf

Shim, Drive Shaf

10-9

Shim, Drive Shaf

Shim, Drive Shaf

10-10

Shim, Drive Shaf

Shim, Drive Shaf

11

Nut, Pinion

Nut, Pinion

12

Регулировочная прокладка

Регулировочная прокладка

13

Washer, Thrust F (fwd Gear)

Washer, Thrust F (fwd Gear)

14-1

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-2

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-3

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-4

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-5

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-6

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-7

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-8

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-9

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-10

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

14-11

Shim, Forward Ge (rev Gear)

Shim, Forward Ge (rev Gear)

15-1

Shim(65x80x0.5) (fwd Gear)

Shim(65x80x0.5) (fwd Gear)

15-2

Shim(65x80x0.55 (fwd Gear)

Shim(65x80x0.55 (fwd Gear)

15-3

Shim(65x80x0.6) (fwd Gear)

Shim(65x80x0.6) (fwd Gear)

15-4

Shim(65x80x0.65 (fwd Gear)

Shim(65x80x0.65 (fwd Gear)

15-5

Shim(65x80x0.7) (fwd Gear)

Shim(65x80x0.7) (fwd Gear)

15-6

Shim(65x80x0.75 (fwd Gear)

Shim(65x80x0.75 (fwd Gear)

15-7

Shim(65x80x0.8) (fwd Gear)

Shim(65x80x0.8) (fwd Gear)

15-8

Shim(65x80x0.85 (fwd Gear)

Shim(65x80x0.85 (fwd Gear)

15-9

Shim(65x80x0.9) (fwd Gear)

Shim(65x80x0.9) (fwd Gear)

15-10

Shim(65x80x0.95 (fwd Gear)

Shim(65x80x0.95 (fwd Gear)

16

Подшипник опорный

Подшипник опорный

17

Shaft, Propelle

Shaft, Propelle

18

Муфта сцепления

Муфта сцепления

19

Штифт

Штифт

20

Pin, Connector

Pin, Connector

21

Пружина

Пружина

22

Spring, Detent

Spring, Detent

23

Шарик 7/32

Шарик 7/32

24

Шарик

Шарик

25-1

56120-96L00-0EP

Housing, Sft Br

Housing, Sft Br

25-2

56120-96L00-Y5S

Housing, Sft Br

Housing, Sft Br

26

Bearing(30x40x2

Bearing(30x40x2

27

O-ring, Prop(id:

O-ring, Prop(id:

28

Oil Seal 30x45x

Oil Seal 30x45x

29

Circlip Dr Cup

Circlip Dr Cup

30

Bearing, Forward

Bearing, Forward

31

Bearing, 32x58x1

Bearing, 32x58x1

32

Болт

Болт

33

Housing, Drive S

Housing, Drive S

34

O-ring(id:65.4,

O-ring(id:65.4,

35

Oil Seal 24x40x

Oil Seal 24x40x

36

Circlip Dr Cup

Circlip Dr Cup

37

38-1

Shim(32x40x0.65

Shim(32x40x0.65

38-2

Shim(32x40x0.6)

Shim(32x40x0.6)

38-3

Shim(32x40x0.7)

Shim(32x40x0.7)

38-4

Shim(32x40x0.75

Shim(32x40x0.75

38-5

Shim(21x40x0.8)

Shim(21x40x0.8)

38-6

Shim(32x40x0.85

Shim(32x40x0.85

38-7

Shim(32x40x0.9)

Shim(32x40x0.9)

38-8

Shim(32x40x0.95

Shim(32x40x0.95

38-9

Shim(32x40x1)

Shim(32x40x1)

38-10

Shim(32x40x1.05

Shim(32x40x1.05

38-11

Shim(32x40x1.1)

Shim(32x40x1.1)

38-12

Shim(32x40x1.15

Shim(32x40x1.15

38-13

Shim(32x40c1.2)

Shim(32x40c1.2)

38-14

Shim(32x40x1.25

Shim(32x40x1.25

38-15

Shim(32x40x1.3)

Shim(32x40x1.3)
