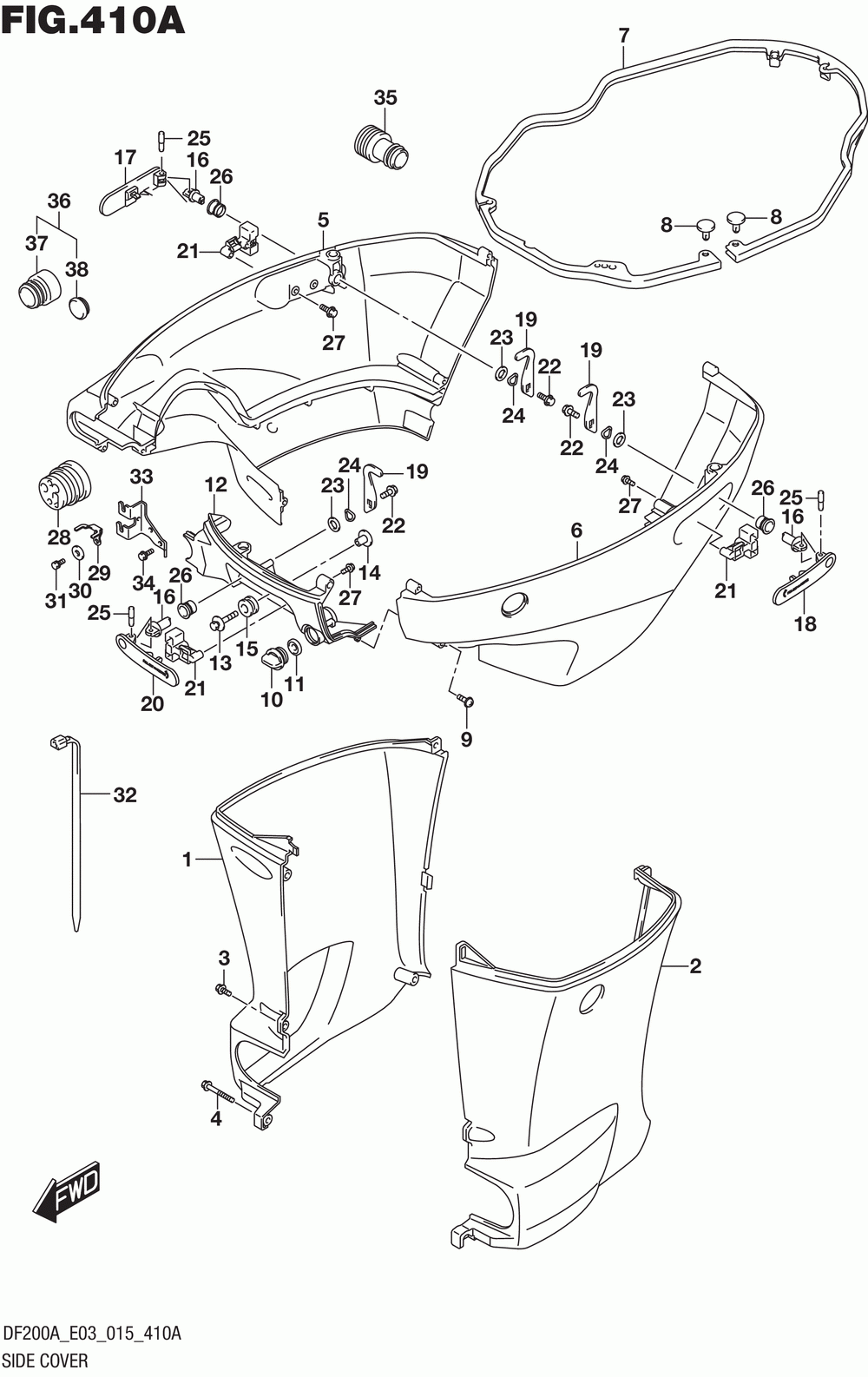

Side cover (df200at e03)
Side cover (df200at e03)

Side cover (df200at e03)

Suzuki Marine DF200AT,AZ ~510001

oem код

название

цена

1-1

61131-96J02-0EP

Cover, Oil Pan S (w/transom(l))

1-2

61131-96J02-Y5S

Cover, Oil Pan S (w/transom(l))

1-3

61131-96J12-0EP

Cover, Oil Pan S (w/transom(x))

1-4

61131-96J12-Y5S

Cover, Oil Pan S (w/transom(x))

2-1

61141-96J02-0EP

Cover, Oil Pan P (w/transom(l))

2-2

61141-96J02-Y5S

Cover, Oil Pan P (w/transom(l))

2-3

61141-96J12-0EP

Cover, Oil Pan P (w/transom(x))

2-4

61141-96J12-Y5S

Cover, Oil Pan P (w/transom(x))

3-1

09139-06135

Screw, Oil Pan C (w/transom(l)w/transom(x))

09139-06147

Bolt, Oil Pan Co (w/transom(l))

5-1

61811-96L00-0EP

Cover, Side Stbd

5-2

61811-96L00-Y5S

Cover, Side Stbd

6-1

61820-96L00-0EP

Cover, Side Port

6-2

Cover, Side Port

Seal, Side Cover

Штифт

Screw, 6x35

Plug, Water

Gasket, Water Pl

12-1

61831-96J10-0EP

Панель передняя

12-2

Panel, Fr

Bolt(8x38)

Подушка

Shaft, Engine Co

Lever, Hook Rear

Lever, Hook Rear

Hook, Engine Cov

Lever, Hook Fron

Latch, Hook Leve

Bolt 6x12

Washer, 13.2x25x

Wave Washer

Pin, Hook Lever,

Втулка

Болт

Gromment, R/con

Stopper, R/con C

Шайба

Болт

Зажим

Holder, R/con Ca

Болт

Connector, Flus

Hose Adtdf150-d (opt)

67361-93J00

Adapter, Hose (opt)

09250-21003

Plug (opt)
