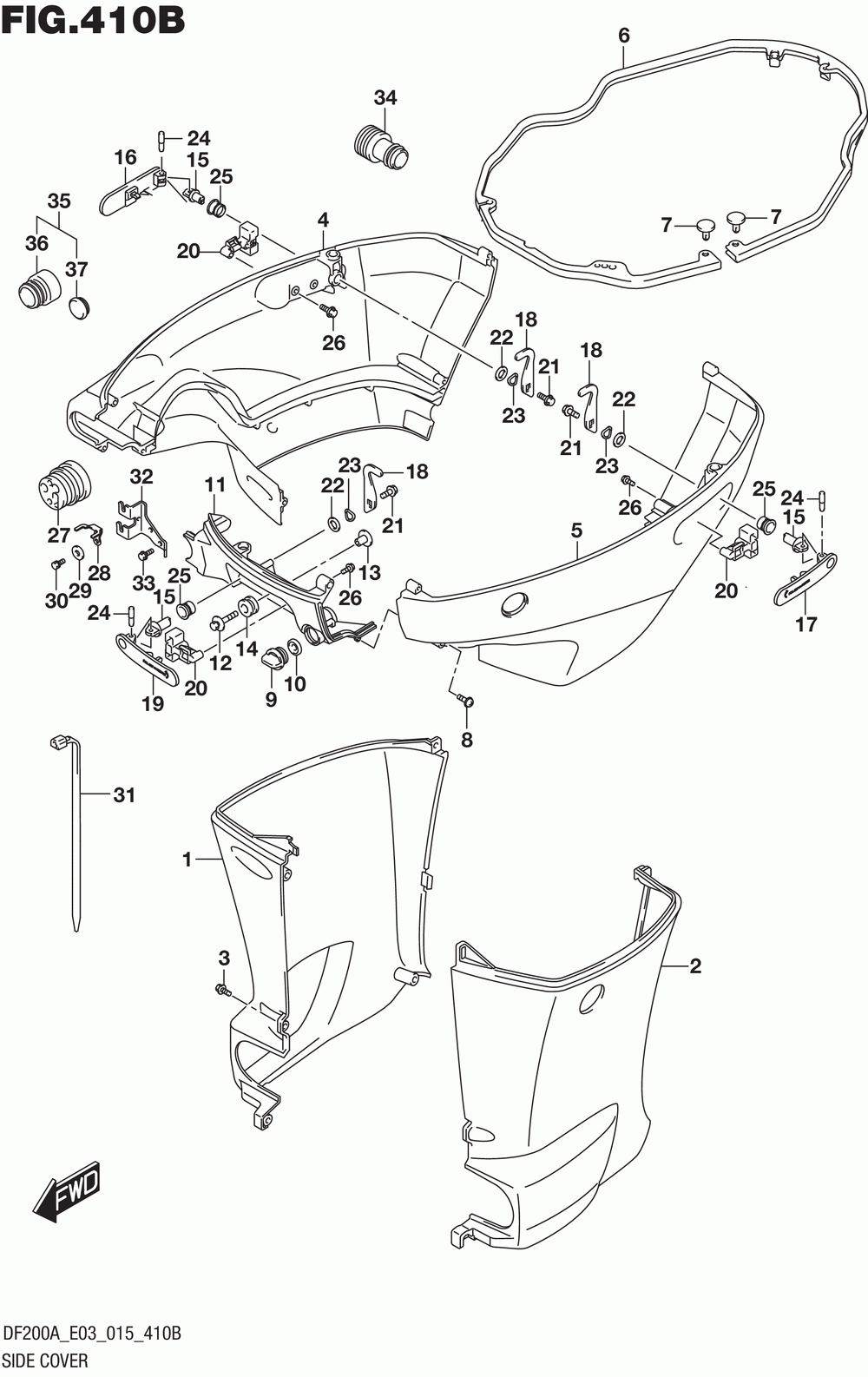

Side cover (df200az e03)
Side cover (df200az e03)

Side cover (df200az e03)

Suzuki Marine DF200AT,AZ ~510001

Side cover (df200az e03)

#

oem код

название

цена

1-1

61131-96J12-0EP

Cover, Oil Pan S

Cover, Oil Pan S

1-2

61131-96J12-Y5S

Cover, Oil Pan S

Cover, Oil Pan S

2-1

61141-96J12-0EP

Cover, Oil Pan P

Cover, Oil Pan P

2-2

61141-96J12-Y5S

Cover, Oil Pan P

Cover, Oil Pan P

3

Screw, Oil Pan C

Screw, Oil Pan C

4-1

61811-96L00-0EP

Cover, Side Stbd

Cover, Side Stbd

4-2

61811-96L00-Y5S

Cover, Side Stbd

Cover, Side Stbd

5-1

61820-96L00-0EP

Cover, Side Port

Cover, Side Port

5-2

61820-96L00-Y5S

Cover, Side Port

Cover, Side Port

6

Seal, Side Cover

Seal, Side Cover

7

09409-05302-5PK

Штифт

Штифт

8

Screw, 6x35

Screw, 6x35

9

Plug, Water

Plug, Water

10

Gasket, Water Pl

Gasket, Water Pl

11-1

61831-96J10-0EP

Панель передняя

Панель передняя

11-2

61831-96J10-Y5S

Panel, Fr

Panel, Fr

12

Bolt(8x38)

Bolt(8x38)

13

14

Подушка

Подушка

15

Shaft, Engine Co

Shaft, Engine Co

16

Lever, Hook Rear

Lever, Hook Rear

17

Lever, Hook Rear

Lever, Hook Rear

18

Hook, Engine Cov

Hook, Engine Cov

19

Lever, Hook Fron

Lever, Hook Fron

20

Latch, Hook Leve

Latch, Hook Leve

21

Bolt 6x12

Bolt 6x12

22

Washer, 13.2x25x

Washer, 13.2x25x

23

Wave Washer

Wave Washer

24

Pin, Hook Lever,

Pin, Hook Lever,

25

Втулка

Втулка

26

Болт

Болт

27

Gromment, R/con

Gromment, R/con

28

Stopper, R/con C

Stopper, R/con C

29

Шайба

Шайба

30

Болт

Болт

31

Зажим

Зажим

32

Holder, R/con Ca

Holder, R/con Ca

33

Болт

Болт

34

Connector, Flus

Connector, Flus

35

Hose Adtdf150-d (opt)

Hose Adtdf150-d (opt)

36

Adapter, Hose (opt)

Adapter, Hose (opt)

37

Plug (opt)

Plug (opt)
