Side cover (df25ar p03) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH (2015)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2015
DF25A,AR,AT,AQH DF30AT,ATH

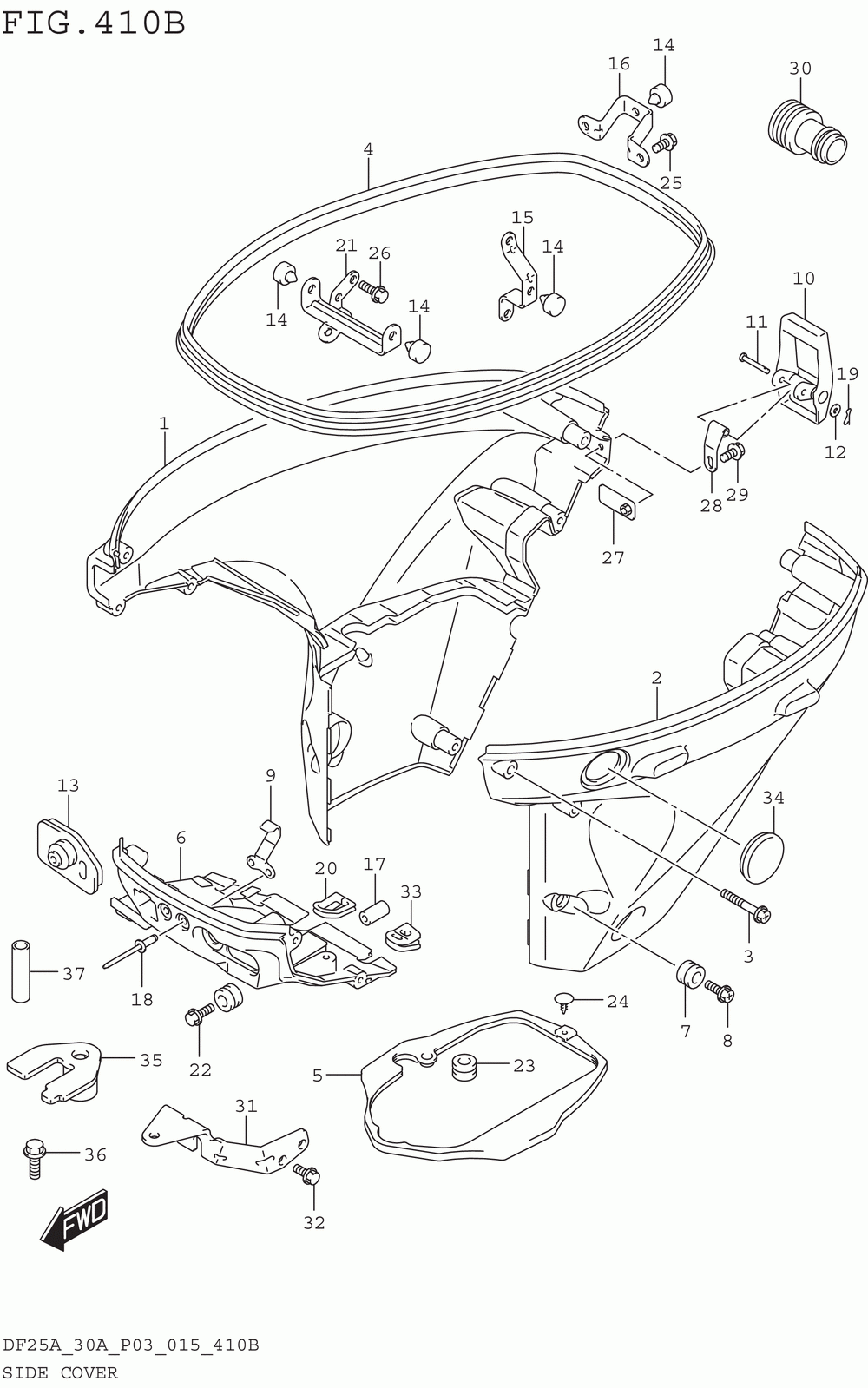

Side cover (df25ar p03)
Side cover (df25ar p03)

Side cover (df25ar p03)

Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH

Side cover (df25ar p03)

#

oem код

название

цена

1

61810-94L00-0EP

Cover, Side Stbd

Cover, Side Stbd

2

61820-94L00-0EP

Cover, Side Port

Cover, Side Port

3

Screw, 6x35

Screw, 6x35

4

Rubber, Side Cov

Rubber, Side Cov

5

Seal, Side Cover

Seal, Side Cover

6

61830-94L00-0EP

Panel, Front(bla

Panel, Front(bla

7

Подушка

Подушка

8

Screw, 6x17

Screw, 6x17

9

Hook, Front Pane

Hook, Front Pane

10

Fastener Comp

Fastener Comp

11

Pin, Lever

Pin, Lever

12

Шайба

Шайба

13

Grommet, R/con C

Grommet, R/con C

14

Cushion, Lower C

Cushion, Lower C

15

Holder, Side Cov

Holder, Side Cov

16

Holder, Side Cov

Holder, Side Cov

17

Подушка

Подушка

18

заклёпка

заклёпка

19

Pin, Snap

Pin, Snap

20

Boot, Clutch Rod

Boot, Clutch Rod

21

Holder, Side Cov

Holder, Side Cov

22

Screw, 6x17

Screw, 6x17

23

Подушка

Подушка

24

09409-05302-5PK

Штифт

Штифт

25

Болт

Болт

26

Болт

Болт

27

Plate, Fastener

Plate, Fastener

28

Holder, Fastener

Holder, Fastener

29

Болт М6x12

Болт М6x12

30

Connector, Flus

Connector, Flus

31

Holder, R/con Ca

Holder, R/con Ca

32

Bolt 6x16

Bolt 6x16

33

Grommet, Pt Cabl

Grommet, Pt Cabl

34

Plug, Pt Switch

Plug, Pt Switch

35

Stopper, R/con C

Stopper, R/con C

36

Болт 6x15

Болт 6x15

37

09352-70103-600

Hose 7x10.2x600 (l:600->14)

Hose 7x10.2x600 (l:600->14)
