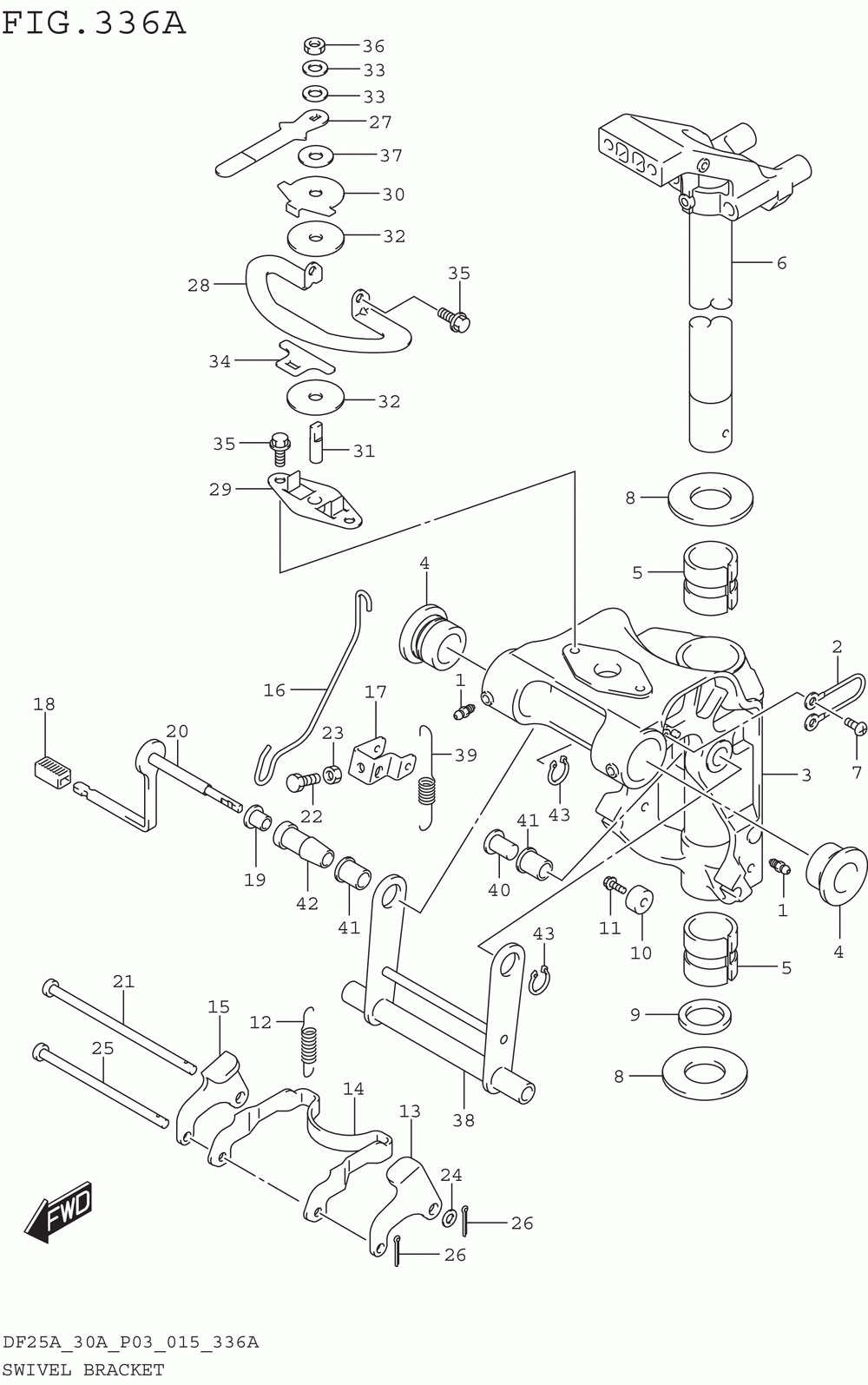

Swivel bracket (df25a p03)
Swivel bracket (df25a p03)

Swivel bracket (df25a p03)

Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH

oem код

название

цена

22511-99011

Ниппель

36894-87D00

Lead, Clamp To S

3-1

43111-94L00-0EP

Bracket, Swivel( (w/transom(s))

3-2

43111-94L10-0EP

Bracket, Swivel( (w/transom(l))

43211-87JL0

Bush, Swivel Bra

43711-94L00

Bush, Steering

6-1

43750-94L00-0EP

Bracket, Steerin (w/transom(s))

6-2

43750-94L10-0EP

Bracket, Steerin (w/transom(l))

09125-06063

Screw 6x10 (sus

09160-30057

Washer(30.9x50x

09282-30008

Seal(30.6x43x5)

10-1

55321-87J01

Anode, Protectio (w/transom(l))

10-2

55321-87J10

Magnesium Anode (opt)

09103-06281

Bolt, Protection (w/transom(l))

Spring, Reverse

Link, Reverse Lo

Arm, Reverse Loc

Link, Reverse Lo

Link, Release Le

Arm, Release

Rubber, Release

Bush, Release Le

Lever, Release

Pin, Reverse Loc

Болт

Гайка

Шайба

Pin(6x105.5)

Штифт

Lever, Steering

Plate, Strg Adj(

Plate Comp, Strg

Plate, Strg Adj

Shaft, Strg Adju

Washer, Strg Adj

Washer, Steering

Spacer, Steering

Болт 6x15

Гайка

Washer, 8.2x18x1

Arm, Shallow Wat

Spring, Shallow

Pin, Shallow Dri

Bush, Shallow Wa

Spacer, Shallow

Стопорное кольцо
