Swivel bracket (df25ar p03) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH (2015)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2015
DF25A,AR,AT,AQH DF30AT,ATH

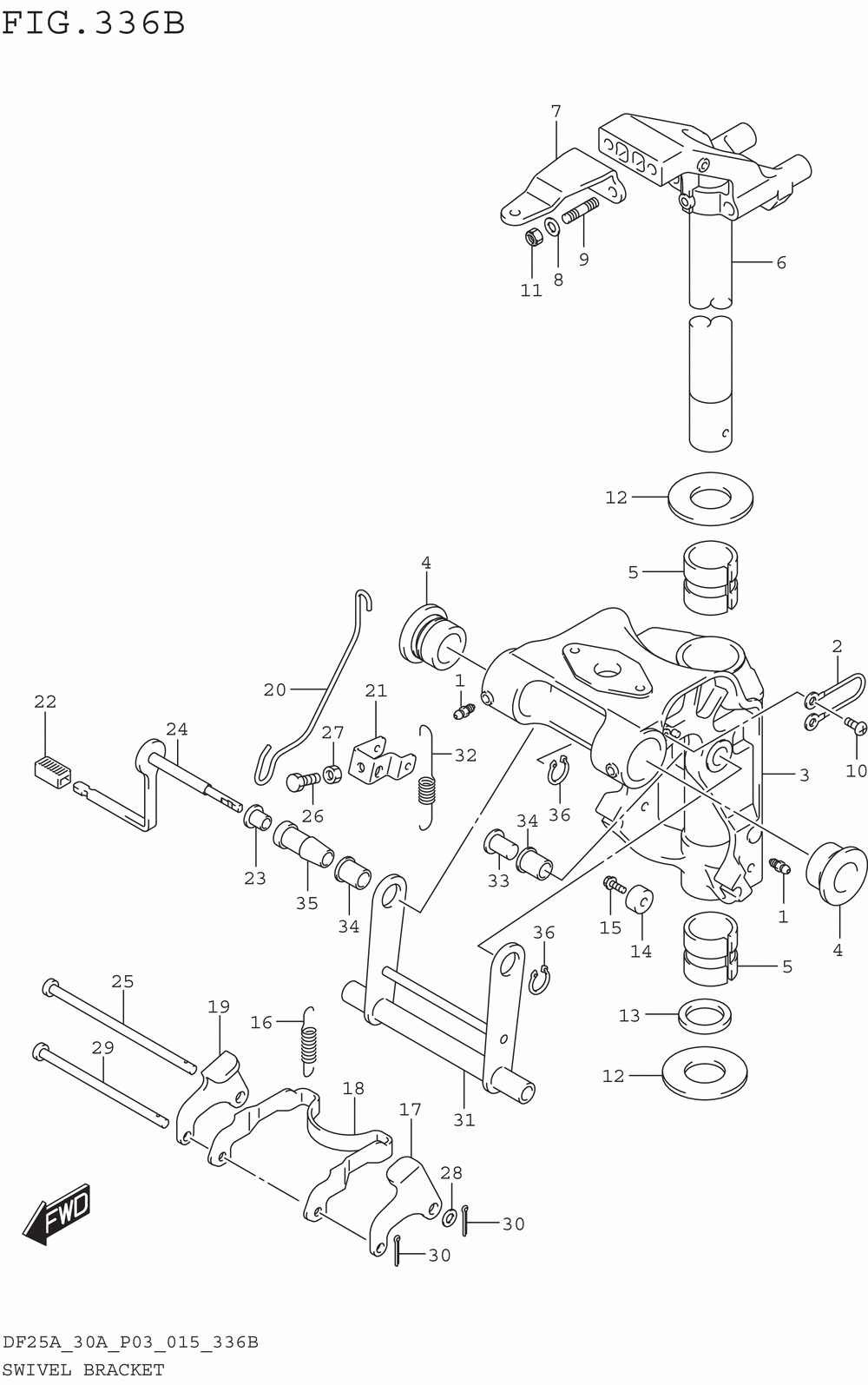

Swivel bracket (df25ar p03)
Swivel bracket (df25ar p03)

Swivel bracket (df25ar p03)

Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH

oem код

название

цена

22511-99011

Ниппель

36894-87D00

Lead, Clamp To S

3-1

43111-94L00-0EP

Bracket, Swivel( (w/transom(s))

3-2

43111-94L10-0EP

Bracket, Swivel( (w/transom(l))

43211-87JL0

Bush, Swivel Bra

43711-94L00

Bush, Steering

6-1

43750-94L00-0EP

Bracket, Steerin (w/transom(s))

6-2

43750-94L10-0EP

Bracket, Steerin (w/transom(l))

Attachment, Stee

Шайба

Шпилька

Screw 6x10 (sus

Гайка

Washer(30.9x50x

Seal(30.6x43x5)

14-1

55321-87J01

Anode, Protectio (w/transom(l))

14-2

55321-87J10

Magnesium Anode (opt)

09103-06281

Bolt, Protection (w/transom(l))

Spring, Reverse

Link, Reverse Lo

Arm, Reverse Loc

Link, Reverse Lo

Link, Release Le

Arm, Release

Rubber, Release

Bush, Release Le

Lever, Release

Pin, Reverse Loc

Болт

Гайка

Шайба

Pin(6x105.5)

Штифт

Arm, Shallow Wat

Spring, Shallow

Pin, Shallow Dri

Bush, Shallow Wa

Spacer, Shallow

Стопорное кольцо
