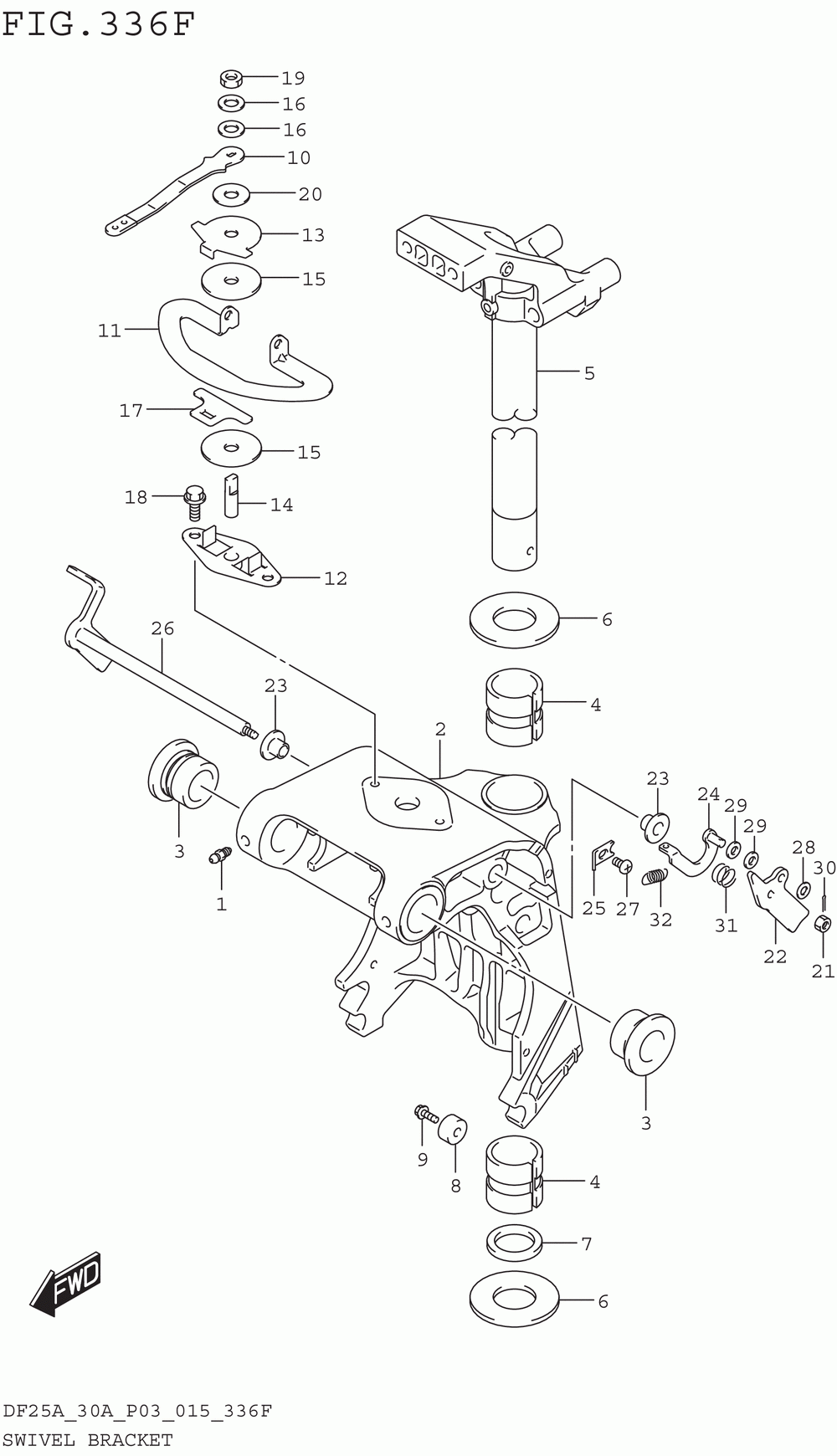

Swivel bracket (df30ath p03)

Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH
Suzuki Marine
#oem кодцена
1
22511-99011
Ниппель
2-1
43111-94LA0-0EP
Bracket, Swivel( (w/transom(s))
2-2
43111-94LB0-0EP
Bracket, Swivel( (w/transom(l))
3
43211-87JL0
Bush, Swivel Bra
4
43711-94L00
Bush, Steering
5-1
43750-94L00-0EP
Bracket, Steerin (w/transom(s))
5-2
43750-94L10-0EP
Bracket, Steerin (w/transom(l))
6
09160-30057
Washer(30.9x50x
7
09282-30008
Seal(30.6x43x5)
8-1
55321-87J01
Anode, Protectio
8-2
55321-87J10
Magnesium Anode (opt)
9
09103-06281
Bolt, Protection
10
43411-89LA0
Lever, Steering
11
43415-94L00
Plate, Strg Adj(
12
43420-89L00
Plate Comp, Strg
13
43425-89L00
Plate, Strg Adj
14
43512-89L00
Shaft, Strg Adju
15
43515-88L00
Washer, Strg Adj
16
43516-89J00
Washer, Steering
17
43517-89L00
Spacer, Steering
18
09116-06225
Болт 6x15
19
09159-08L02
Гайка
20
09161-08019
Washer, 8.2x18x1
21
29141-93J00
Гайка
22
41221-94LA0
Lever, Tilt Lock
23
41224-94LA0
Bush, Tilt Stopp
24
41230-94LA0
Link, Tilt Lock
25
41233-94LA0
Bracket, Tilt Lo
26
41280-94LA0
Lever, Tilt Lock
27
09125-06063
Screw 6x10 (sus
28
09160-06082
Шайба
29
09160-06170
Washer(6.5x13x2
30
09204-01006
Штифт
31
09440-13057
Пружина
32
09443-10043
Spring, Tilt Loc
