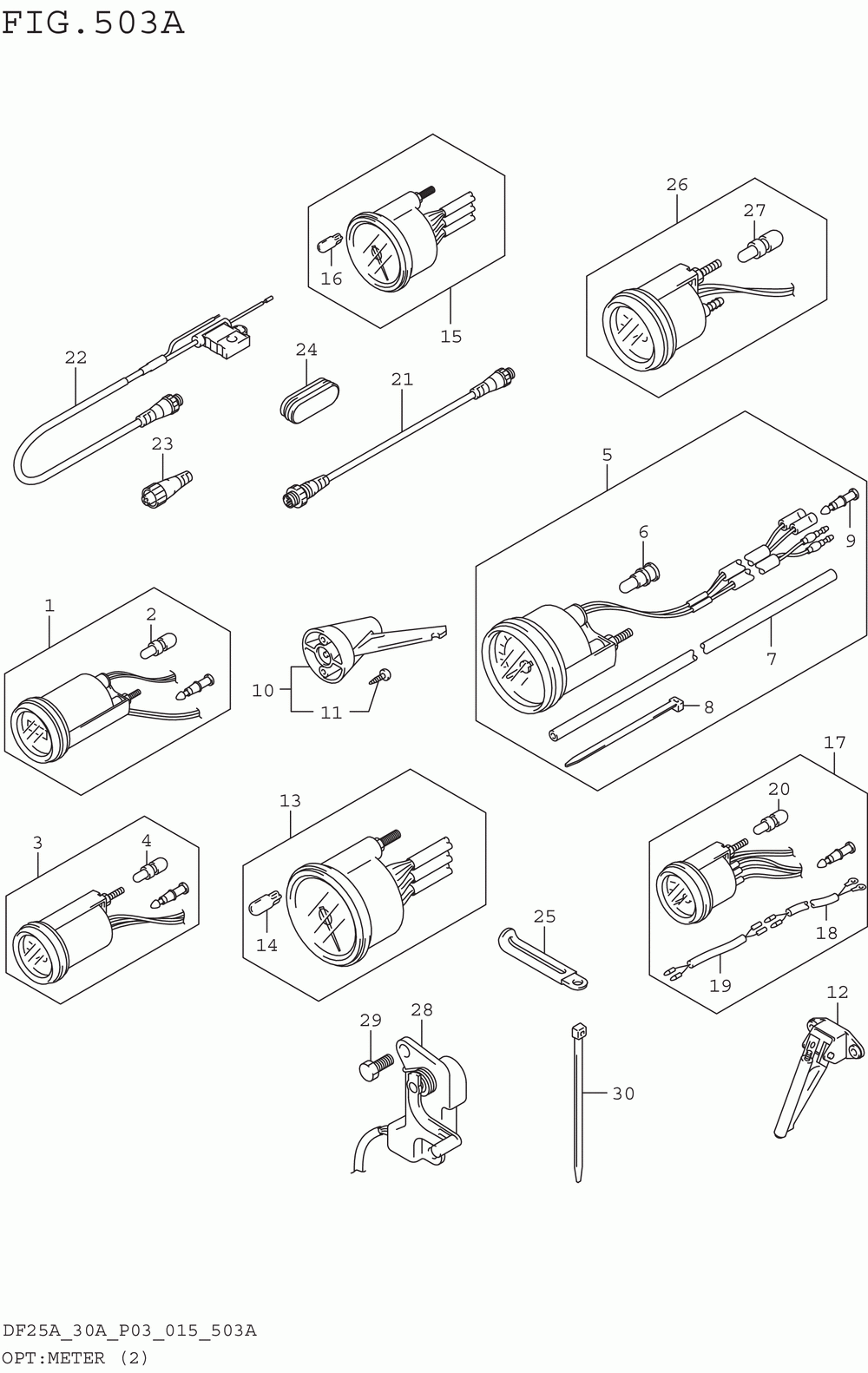

Opt:meter (2) (df25at p03) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH (2015)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2015
DF25A,AR,AT,AQH DF30AT,ATH
Opt:meter (2) (df25at p03)
Opt:meter (2) (df25at p03)

Opt:meter (2) (df25at p03)

Suzuki Marine DF25A,AR,AT,AQH DF30AT,ATH

oem код

название

цена

1-1

34500-93J00

Black Hour Mete (black)

1-2

34500-93J11

White Hour Mete (white)

09471-12103

Bulb 12v3w

3-1

34600-93J00

Black Volt Mete (black)

3-2

34600-93J11

White Volt Mete (white)

09471-12103

Bulb 12v3w

5-1

34100-93J20

Black Speedo 50 (max 80km/h Black)

5-2

34100-93J31

White Speedo 50 (max 80km/h White)

5-3

34100-93J40

Speedometer Ass (max 45knots Black)

Bulb Speedomete

Tube, W.pressure

Зажим

Терминал

Винт

Sensor Speedome

13-1

34200-93J20

Black Tach N/mo (black)

13-2

34200-93J32

Whte Tach N/mon (white)

09471-12028

Bulb Speedomete

15-1

34200-93J00

Black Tach W/mo (black)

15-2

34200-93J12

White Tach W/mo (white)

09471-12077

Bulb

17-1

34300-93J00

Black Fuel Gaug (black)

17-2

34300-93J11

White Fuel Gaug (white)

Adapter Comp, Fu

Bulb 12v3w

Terminal&sleeve

Зажим

26-1

34800-93J00

Black Trim Mete (black)

26-2

34800-93J11

White Trim Mete (white)

Bulb 12v3w

Sender Assy, Tri

Болт

Зажим
