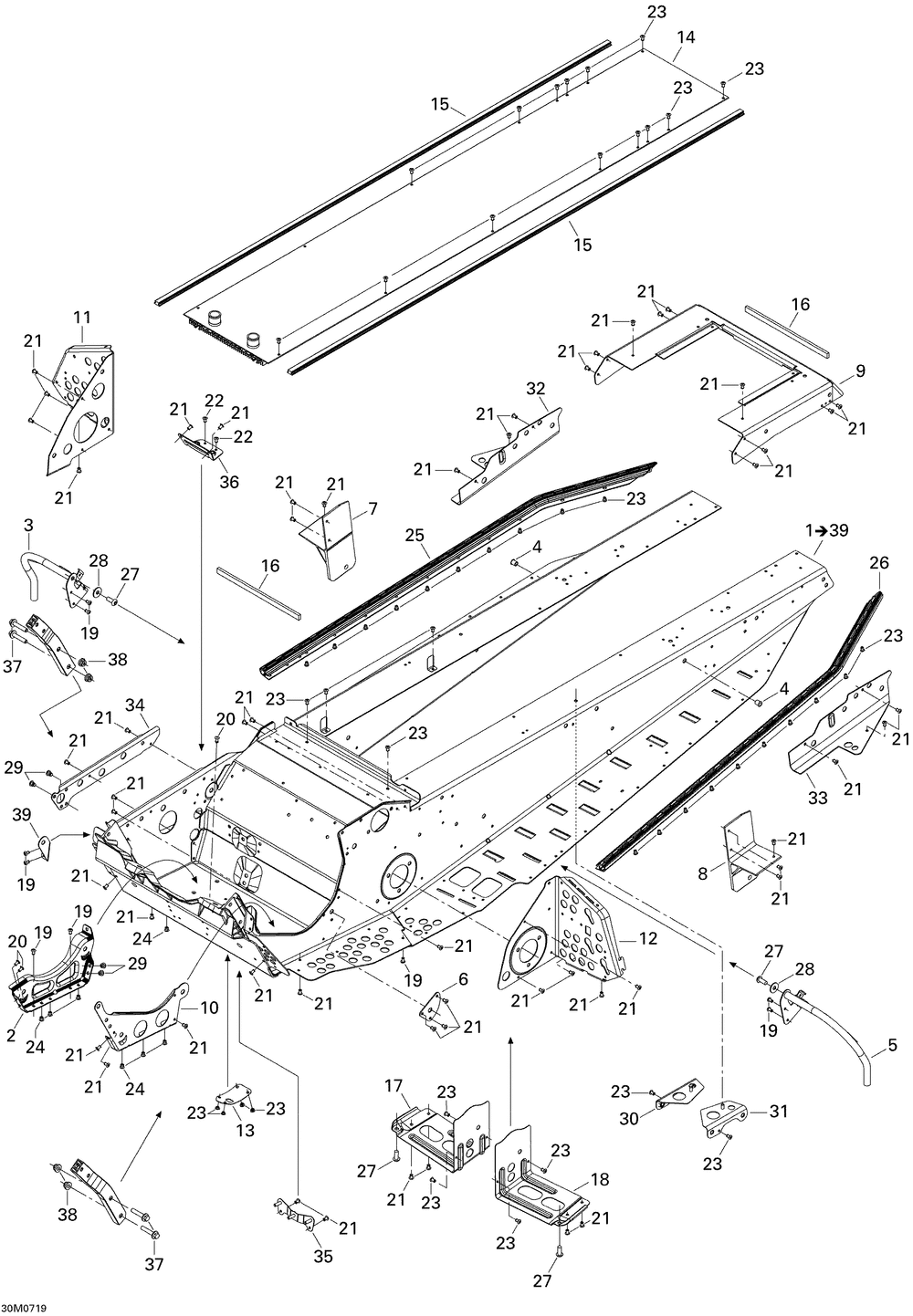

Рама

Ski-Doo (Bombardier) Skandic Tundra V-800
Ski-Doo (Bombardier)
#oem кодцена
1
415129311
Chassis *frame Service (includes 1 To 39 )
2
518323346
Supp.moteur *engine Support
3
518324162
Sup.acc.pi.dr.s*supp-toe Hold Rh Weld
4
415107300
Вставка
5
518324163
Sup.acc.pi.ga.s*supp-toe Hold Lh Weld
6
518323507
Renfort Ext. *reinf. Outer
7
518325343
Att.susp.dr. *slide Brkt Rh
8
518325344
Att.susp.ga. *slide Brkt Lh
9
518324831
Rallonge Tunnel*extention Frame
10
518323995
Renfort Int. *inner Reinforc
11
518325196
Renfort Droit *rh.footrest
12
518324527
Renfort Gauche *reinforcement
13
518324169
Пластина
15
415012300
Защита
16
293200104
Прокладка
17
518325345
Marche-pied Dr.*footrest-rh
18
518325346
Marche-pied Ga.*footrest-lh
19
390909200
Заклепка
20
390909100
Заклепка
21
390402200
Заклепка 3/16
22
390402300
Заклепка 3/16
23
390402400
Заклепка 3/16
24
390910300
Rivet Henrob *rivet-henrob
25
518324957
Rouleau Droit *rh.roller
26
518324958
Rouleau Gauche *lh.roller
27
205982086
Screw-socket Bn.hd.s.grip Iso.7380
28
234082410
Шайба
29
293150096
Заклепка
30
518324385
Renfort Tunnel *frame Form. Reinf.
31
518324386
Renfort Tunnel *frame Form. Reinf.
32
518325039
Doublure Tun.dr*liner-tun.rh
33
518325040
Doublure Tun.ga*liner-tun.lh<
34
518323328
Raidisseur *stiffener
35
518324599
Attache *holder
36
518324207
Attache Soude *weld Plate Hol
37
207684044
Винт
38
233281414
Гайка
39
518324906
Support Droit *right Support
