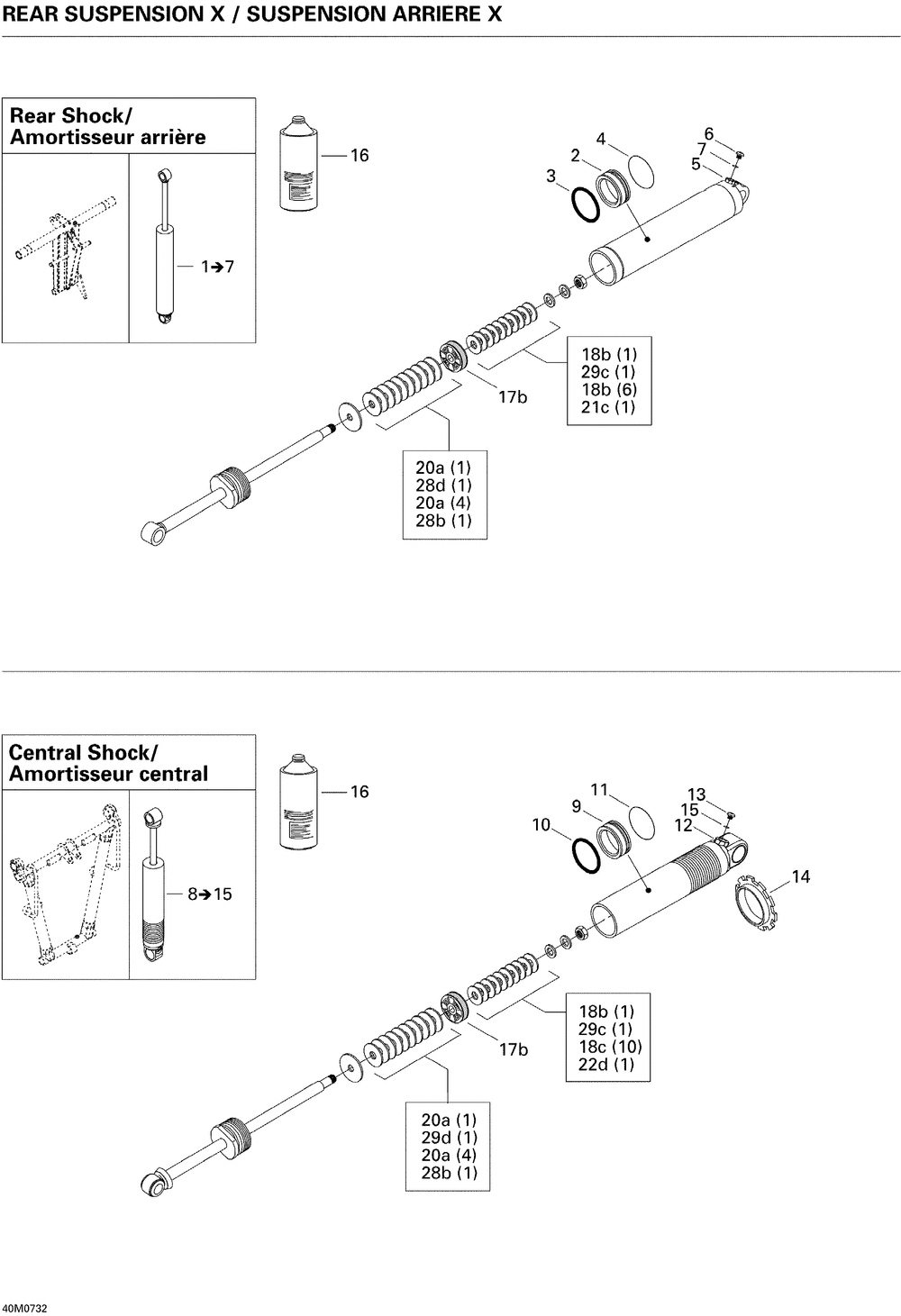

Амортизатор в разборе задний

Ski-Doo (Bombardier) Summit Highmark & Highmark X 1000 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
503191467
Amort. Arr. *shock-rear (includes 1 To 7 )
2
503189309
Piston Libre *piston-free
3
414888312
Кольцо
4
503189308
Bague *ring-piston
5
505070398
Soupape Air *valve-air+ring
6
505070399
Винт
7
505070400
Кольцо
8
503190662
Amort.central *center Shock (includes 8 To 15 )
14
414888316
Collet Ressort *collar-spring
16
293600035
Huile Amortis. *oil-shock
17c
414888305
Piston Comp. *piston-comp.
17g
414888307
Piston Comp. *piston-comp.
18a
415039100
Lame Soupape *leaf-valve
18b
414888318
Lame Soupape *leaf-valve
18c
414888319
Lame Soupape *leaf-valve
20a
415039000
Lame Soupape *leaf-valve
20b
414888322
Lame Soupape *leaf-valve
23d
414888340
Lame Soupape *leaf-valve
24b
414888326
Lame Soupape *leaf-valve
24c
414888327
Lame Soupape *leaf-valve
26b
414888329
Lame Soupape *leaf-valve
26c
414888330
Lame Soupape *leaf-valve
28a
414888331
Lame Soupape *leaf-valve
28b
414888332
Lame Soupape *leaf-valve
28c
414888333
Lame Soupape *leaf-valve
28d
415038900
Lame Soupape *leaf-valve
29b
414888335
Lame Soupape *leaf-valve
32a
503189538
Lame Soupape *leaf-valve 12xt0.254
32b
414888338
Lame Soupape *leaf-valve
32d
415038800
Lame Soupape *leaf-valve
9
503189309
Piston Libre *piston-free
10
414888312
Кольцо
11
503189308
Bague *ring-piston
12
505070398
Soupape Air *valve-air+ring
13
505070399
Винт
15
505070400
Кольцо
