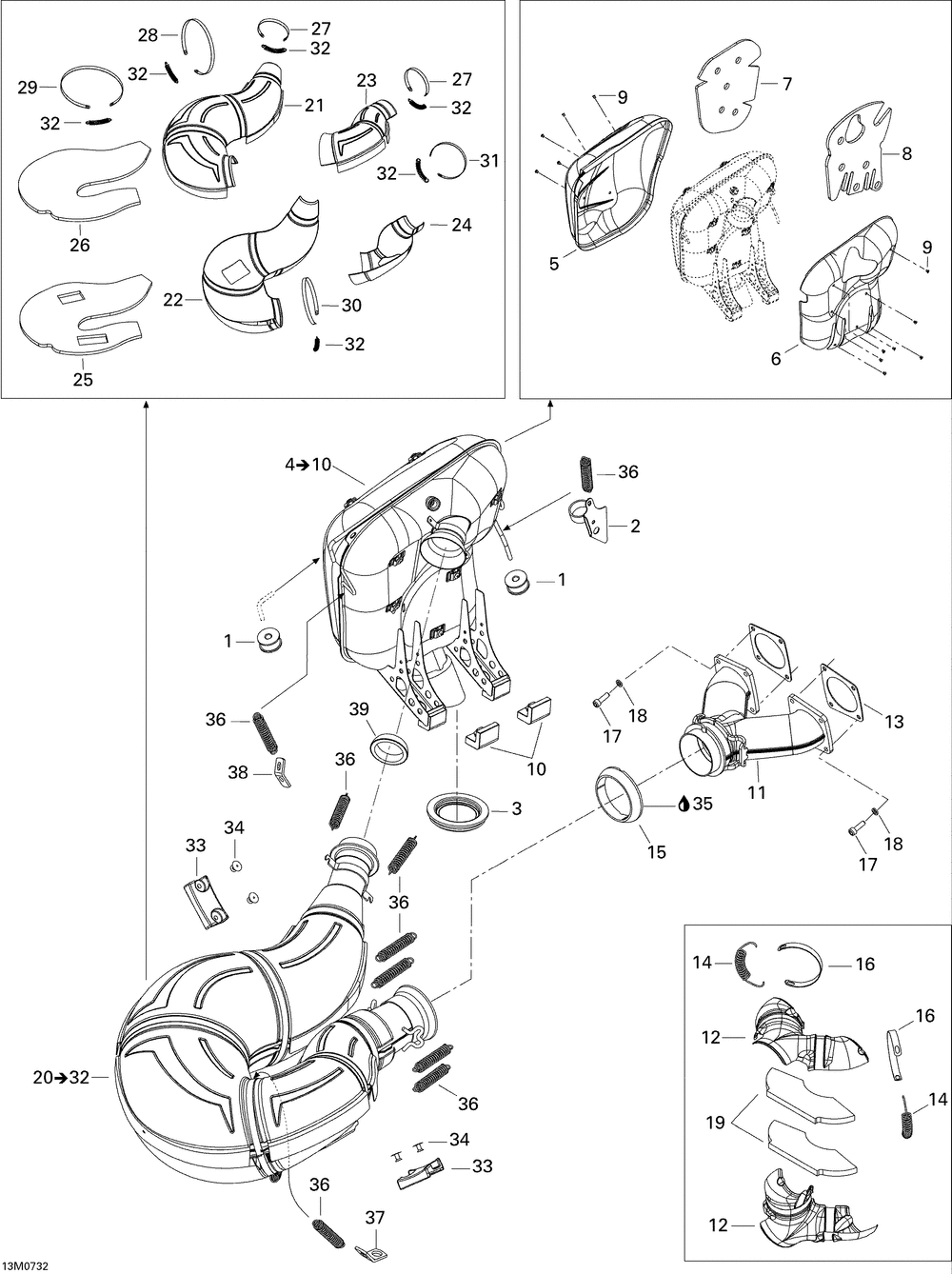

Глушитель

Ski-Doo (Bombardier) Summit Highmark & Highmark X 1000 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
707600012
Rubber - Anti Vibration
2
514053810
Att. Silen. P. *bracket-muf. P
3
514053935
Пружина
4
514054236
Silencieux Ass.*muffler-assy (includes 4 To 10 )
4
514054172
Silencieux Ass.*muffler-assy (includes 4 To 10 )
5
514054173
Defl.chaleur Dr*heat Shield Rh
6
514053778
Defl.chaleur Ga*heat Shield Lh
7
514053904
Изоляционный материал
8
514053905
Изоляционный материал
9
390910000
Заклепка 3/16
10
514054223
Стопор нижний
11
420673150
Collect.echapp.*exhaust Manifold
12
514054033
Env.collect.ech*manifold Exh.envelop.
13
420630820
Прокладка
14
514053643
Пружина
15
514053487
Прокладка глушителя
16
514053493
Languette *retaining Strap
17
514054047
Screw-socket Head S.grip M6 X 20
18
514053953
Шайба
19
514054034
Laine Isolante *wooll Insulating
20
514053740
Tuyau Calib.ass*tube-calib.assy (includes 20 To 32 )
21
514053772
Demi-env.sup.ar*half-env.up.r
21
514053770
Demi-env.sup.av*half-env.up.r.
22
514053773
Demi-env.inf.ar*half-env.low.r
22
514053771
Demi-env.inf.av*half-env.low.f
25
514053910
Laine Isolante *wooll Insulating
26
514054035
Laine Isolante *wooll Insulating
27
514053498
Languette *retaining Strap
28
514053975
Languette *retaining Strap
29
514053976
Languette *retaining Strap
30
514053605
Languette *strap Retaining
31
514053501
Languette *retaining Strap
33
514053352
Butoir *bumper
34
293150104
Заклепка 3/16
35
293800090
Смазка
36
415107100
Пружина
37
514054087
Attache Ressort*brachet-spring
38
514053026
Attache Ressort*bracket-spring
39
514053677
Прокладка глушителя
23
514053772
Demi-env.sup.ar*half-env.up.r
23
514053770
Demi-env.sup.av*half-env.up.r.
24
514053771
Demi-env.inf.av*half-env.low.f
24
514053773
Demi-env.inf.ar*half-env.low.r
32
514053643
Пружина
