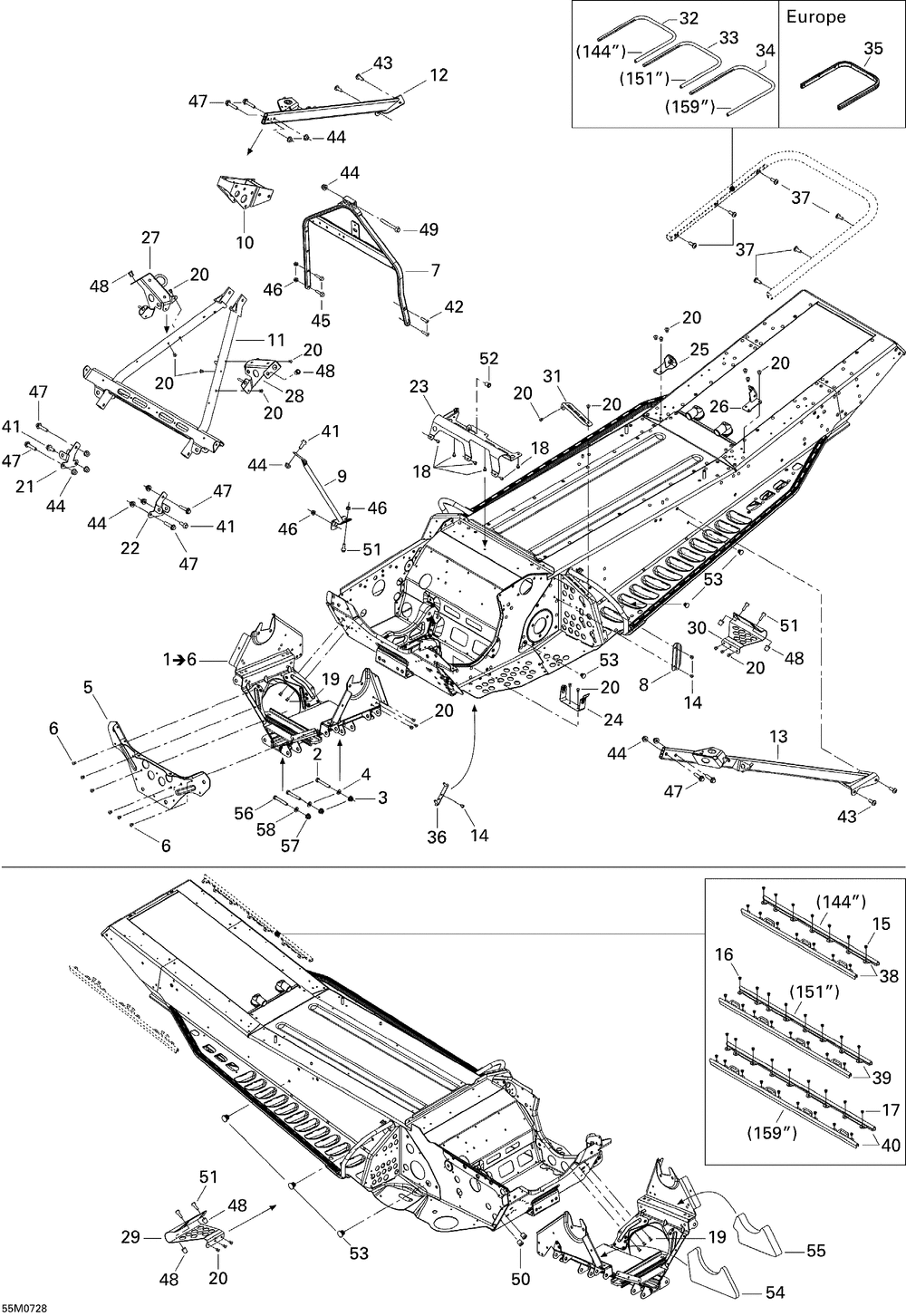

Рама

Ski-Doo (Bombardier) Summit X

Рама

#

oem код

название

цена

1

Traverse *cross Member (includes 1 To 6 )

Traverse *cross Member (includes 1 To 6 )

2

Винт

Винт

3

Гайка

Гайка

4

Шайба

Шайба

5

Plaque Avant *plate-front

Plaque Avant *plate-front

6

Заклепка

Заклепка

7

Supp.guidon Sou*handle Support Weld.

Supp.guidon Sou*handle Support Weld.

8

Protect.cable *protect.-cable

Protect.cable *protect.-cable

9

Croisillon Soud*brace-weld

Croisillon Soud*brace-weld

10

Bloc Attache *block-bracket

Bloc Attache *block-bracket

11

Traverse *upper Cross

Traverse *upper Cross

12

Membrure Dr.sou*member-rh Weld.

Membrure Dr.sou*member-rh Weld.

13

Membrure Ga.sou*member-lh Weld.

Membrure Ga.sou*member-lh Weld.

14

Заклепка 3/16

Заклепка 3/16

15

Rivet-pop 3/16 *rivet-pop 3/16 (track 144" )

Rivet-pop 3/16 *rivet-pop 3/16 (track 144" )

20

Заклепка

Заклепка

21

Attache Amorti.*bracket-shock Rh

Attache Amorti.*bracket-shock Rh

22

Attache Amorti.*bracket-shock Lh

Attache Amorti.*bracket-shock Lh

23

Supp.silenc.adm*sup-intake Air

Supp.silenc.adm*sup-intake Air

24

Attache Gard.co*brkt-guard Belt

Attache Gard.co*brkt-guard Belt

25

Attache Droite *rh.bracket

Attache Droite *rh.bracket

26

Кронштейн левый

Кронштейн левый

27

Supp.console D*support-console Rh

Supp.console D*support-console Rh

28

Supp.console G *support-console Lh

Supp.console G *support-console Lh

29

Accroche Pied D*toe Hold Rh

Accroche Pied D*toe Hold Rh

30

Accroche-pied G*toe-hold Lh

Accroche-pied G*toe-hold Lh

31

Пластина

Пластина

32

Pare-chocs Arr.*bumper-rear (track 144" )

Pare-chocs Arr.*bumper-rear (track 144" )

34

Pare-chocs Arr.*bumper-rear (track 159" )

Pare-chocs Arr.*bumper-rear (track 159" )

35

Pare-choc *rear Bumper (track 151" (europe) )

Pare-choc *rear Bumper (track 151" (europe) )

36

Attache Coffre *bracket Trunk

Attache Coffre *bracket Trunk

37

Screw-pan Hd.torx Black Gm6174m

Screw-pan Hd.torx Black Gm6174m

38

Protect. Fil Ga*wire Protector (track 144" )

Protect. Fil Ga*wire Protector (track 144" )

38

Protect. Fil *wire Protector (track 144" )

Protect. Fil *wire Protector (track 144" )

39

Protect. Fil Ga*wire Protector (track 151" )

Protect. Fil Ga*wire Protector (track 151" )

39

Protect. Fil *wire Protector (track 151" )

Protect. Fil *wire Protector (track 151" )

40

Protect. Fil Ga*wire Protector (track 159" )

Protect. Fil Ga*wire Protector (track 159" )

40

Protecteur *wire Protector (track 159" )

Protecteur *wire Protector (track 159" )

41

Винт

Винт

42

Screw-socket Ctsk.din.7991 S.grip

Screw-socket Ctsk.din.7991 S.grip

43

Screw-pan Hd.torx M8 X 13

Screw-pan Hd.torx M8 X 13

45

Винт

Винт

46

Гайка

Гайка

47

Винт

Винт

48

Вставка

Вставка

49

Винт

Винт

50

Вставка

Вставка

51

Винт

Винт

52

Вставка

Вставка

53

Attache Panneau*panel-fastener

Attache Panneau*panel-fastener

54

Поролон

Поролон

55

Поролон

Поролон

16

Rivet-pop 3/16 *rivet-pop 3/16 (track 151" )

Rivet-pop 3/16 *rivet-pop 3/16 (track 151" )

17

Rivet-pop 3/16 *rivet-pop 3/16 (track 159" )

Rivet-pop 3/16 *rivet-pop 3/16 (track 159" )

18

Заклепка 3/16

Заклепка 3/16

19

Заклепка

Заклепка

33

Pare-chocs Arr.*bumper-rear (track 151" )

Pare-chocs Arr.*bumper-rear (track 151" )

44

Гайка

Гайка

56

Винт

Винт

57

Гайка

Гайка

58

Шайба

Шайба
