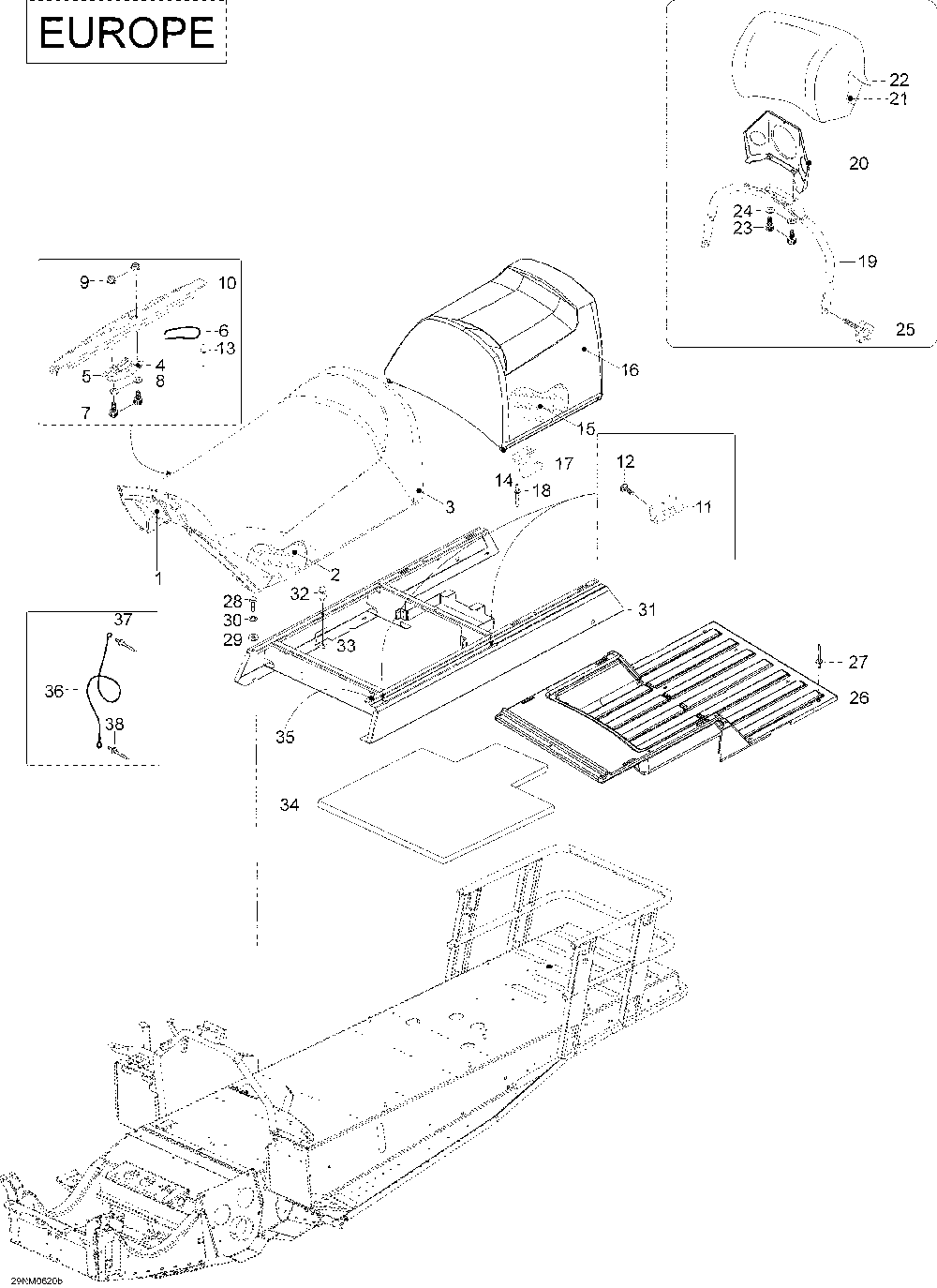

Сидение 2

Ski-Doo (Bombardier) Expedition 600 HO SDI
Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base
2
605251389
Mousse Siege *front Foam Seat
3
605251422
Housse Siege *seat Cover Front
4
269700076
Couv.loquet *cover-latch
5
269700077
Levier Loquet *lever-latch
6
269700017
Ressort Loquet *spring-latch
7
M40276
Allen Screw M6 X 25din 912m8.8zne
8
234061410
Шайба
10
605352483
Plaque Sup. *support Plate
11
605351798
Charniere *hinge Plate Assy
12
M40890
Винт
13
M36088
Заклепка
14
605251390
Sous Siege Ar. *rear Seat Base
15
605251391
Mousse Siege Ar*rear Seat Foam
16
605251425
Housse Siege *seat Cover
17
605351808
Verrou *locking Plate L.h
17
605352007
Verrou *locking Plate R.h
18
M36087
Заклепка
19
605251730
Dossier *backrest Weld
20
605252096
Support Dossier*backrest Support Plate
21
605252104
Mousse Dossier *backrest Foam
22
605251431
Housse Dossier *backrest Cover
23
M40066
Винт
24
234181401
Шайба
25
510003533
Poignee Male *handle-male
26
605151397
Couvercle *tunnel Cover
28
207161644
Винт
29
M20009
Шайба
30
234161471
Шайба
31
605252651
Base De Siege *seat Box Weld
32
605452035
Axe De Blocage *lock Pin
34
605352460
Поролон
35
M28413
Baguette Etan. *sealing Strip
36
M546777
Cable Retenue *cable-retainer
37
M36037
Заклепка
38
M36489
Заклепка
13
36088
Rivet Avibulb 4.8x8.8 Zn(1=25pcs)
