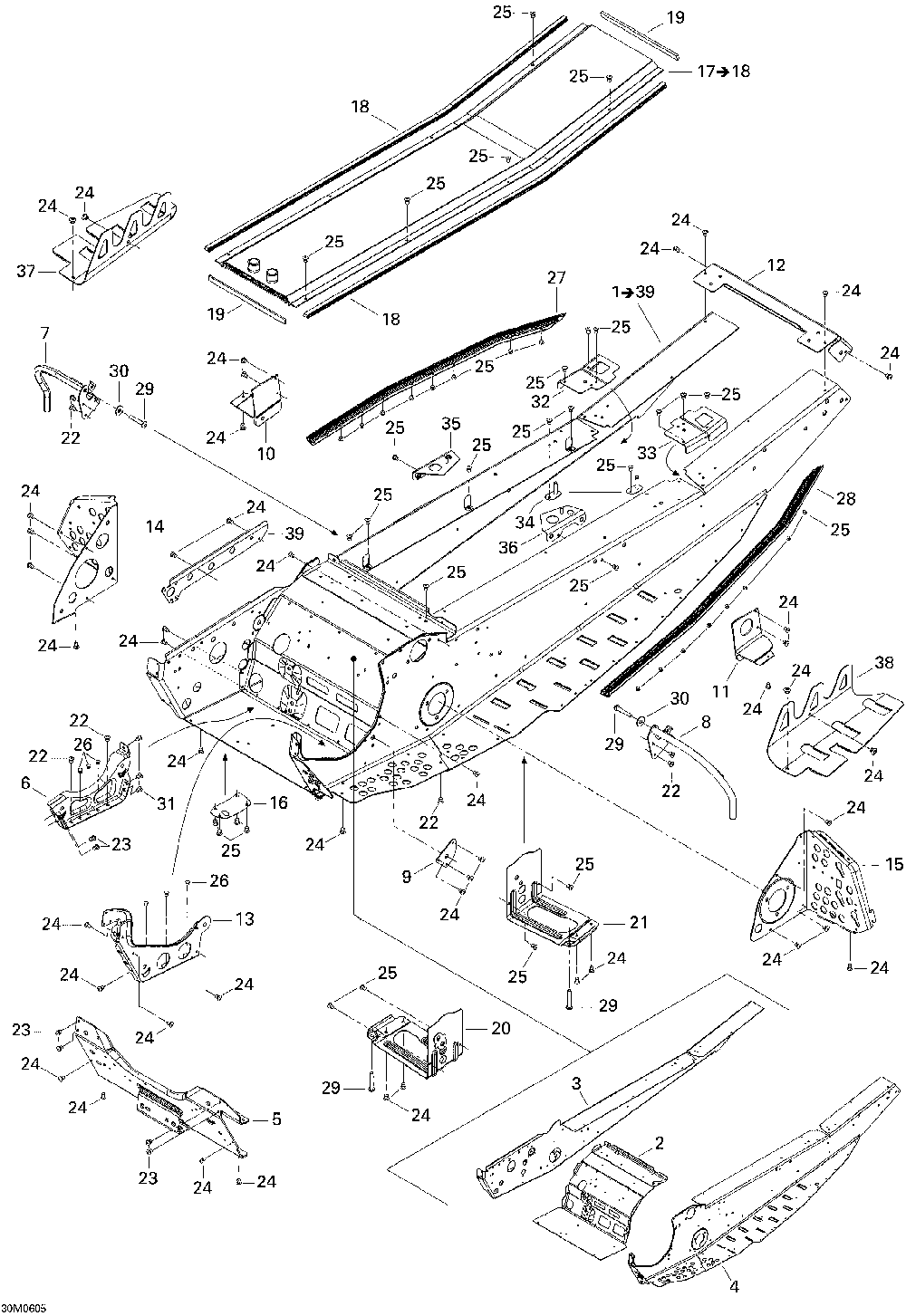

Рама Запчасти для снегоходов Ski-Doo (Bombardier) MX Z 500SS Trail & Adrenaline (2006)

Рама

Ski-Doo (Bombardier) MX Z 500SS Trail & Adrenaline

oem код

название

цена

415129233

Chassis *frame Service (includes 1 To 39 )

518324485

Tunnel Forme Dr*frame Forming Rh

518324486

Tunnel Forme Ga*frame Forming Lh

518323239

Tablier Avant S*front Pan Weld

518323346

Supp.moteur *engine Support

518324162

Sup.acc.pi.dr.s*supp-toe Hold Rh Weld

518324163

Sup.acc.pi.ga.s*supp-toe Hold Lh Weld

518323507

Renfort Ext. *reinf. Outer

518324488

Att.susp.dr. *slide Brkt Rh

518324489

Att.susp.ga. *slide Brkt Lh

518324409

Capuchon *rear Cap

518323241

Renfort Int. *inner Reinforcement

518323805

Renfort Droit *rh.footrest

518324527

Renfort Gauche *reinforcement

518324169

Пластина

518324242

Radiateur Arr.s*front Rad. Weld. (includes 17 To 18 )

415012300

Защита

293200096

Прокладка

518324634

Renfort Droit *reinforcement

518324635

Renfort Gauche *reinforcement

Заклепка

Заклепка

Заклепка 3/16

Заклепка 3/16

Rivet Henrob *rivet-henrob

518324953

Rouleau Droit *roller-rh

518324954

Rouleau Gauche *roller-lh

205982086

Screw-socket Bn.hd.s.grip Iso.7380

234082410

Шайба

293150096

Заклепка

518324431

Renf.tunnel Dr.*reinf-frame Rh

518324432

Renf.tunnel Ga.*reinf-frame Lh

518322791

Att.reserv.so. *brkt-tank Weld

518324385

Renfort Tunnel *frame Form. Reinf.

518324386

Renfort Tunnel *frame Form. Reinf.

518325268

Doublure Tun.dr*liner-tunnel Rh

518325269

Doublure Tunnel*liner-tunnel Lh

518323328

Raidisseur *stiffener
