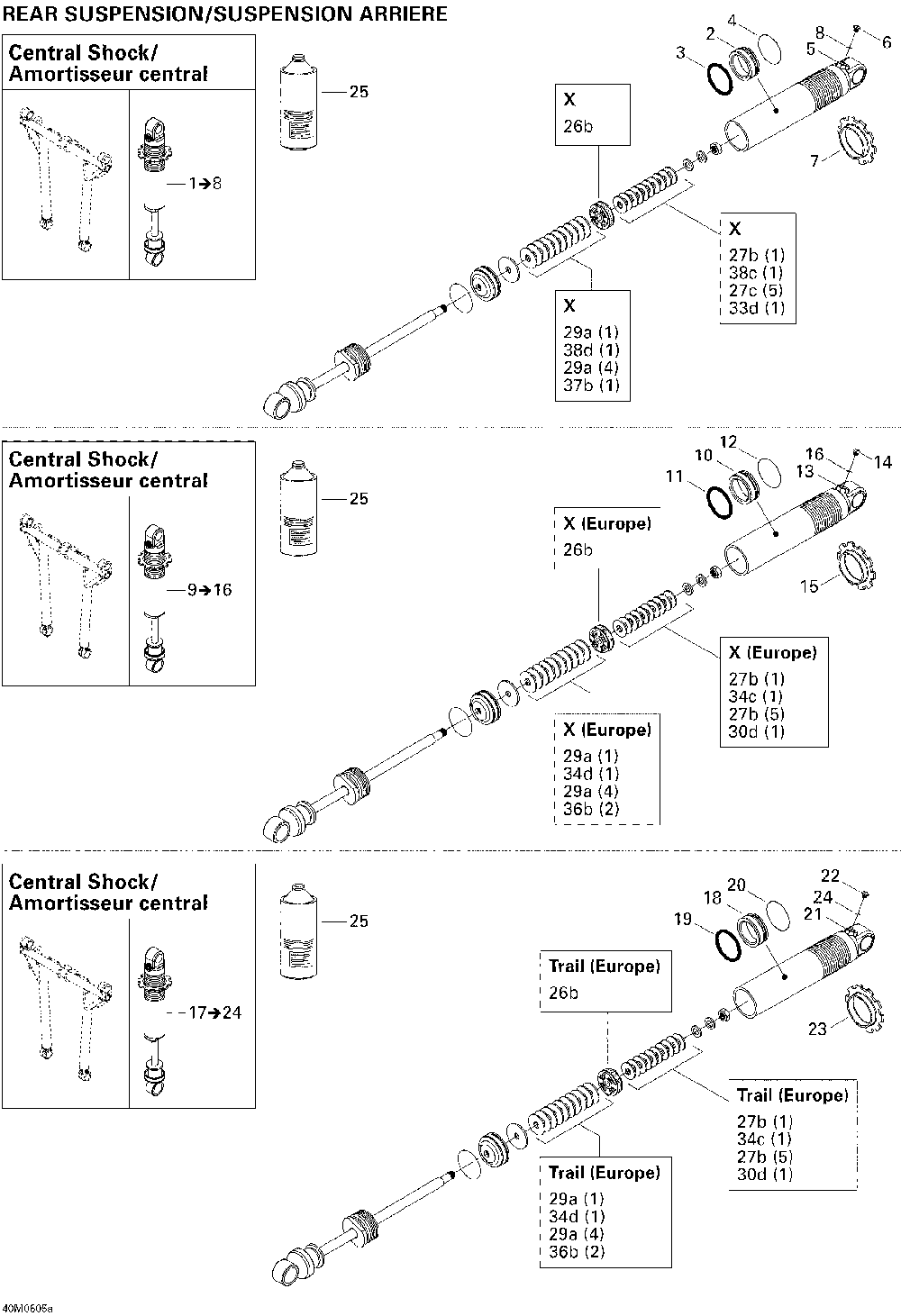

08- take apart shock, rear 1 (800)

Ski-Doo (Bombardier) MX Z 800 HO Adrenaline & X
Ski-Doo (Bombardier)
#oem кодцена
1
503191203
Amort.central *shock-center (includes 1 To 8 / 800 X )
2
503189309
Piston Libre *piston-free (800 X )
3
414888312
Joint Torique *o-ring (800 X )
4
503189308
Bague *ring-piston (800 X )
5
505070398
Soupape Air *valve-air+ring (800 X )
6
505070399
Screw *vis (800 X )
7
414888316
Collet Ressort *collar-spring (800 X )
8
505070400
Joint Torique *o Ring (800 X )
9
503191220
Amort.central *shock-center (includes 9 To 16 / 800 X (europe) )
25
293600035
Huile Amortis. *oil-shock
26a
414888304
Piston Comp. *piston-comp.
26c
414888305
Piston Comp. *piston-comp.
26e
414888306
Piston Comp. *piston-comp.
26g
414888307
Piston Comp. *piston-comp.
27a
415039100
Lame Soupape *leaf-valve
27b
414888318
Lame Soupape *leaf-valve
27c
414888319
Lame Soupape *leaf-valve
28b
414888320
Lame Soupape *leaf-valve
28c
414888321
Lame Soupape *leaf-valve
29a
415039000
Lame Soupape *leaf-valve
29b
414888322
Lame Soupape *leaf-valve
29c
414888323
Lame Soupape *leaf-valve
31b
414888324
Lame Soupape *leaf-valve
31c
414888325
Lame Soupape *leaf-valve
32d
414888340
Lame Soupape *leaf-valve
33b
414888326
Lame Soupape *leaf-valve
33c
414888327
Lame Soupape *leaf-valve
33d
414888328
Lame Soupape *leaf-valve
35b
414888329
Lame Soupape *leaf-valve
35c
414888330
Lame Soupape *leaf-valve
37a
414888331
Lame Soupape *leaf-valve
37b
414888332
Lame Soupape *leaf-valve
37c
414888333
Lame Soupape *leaf-valve
37d
415038900
Lame Soupape *leaf-valve
38a
414888334
Lame Soupape *leaf-valve
38b
414888335
Lame Soupape *leaf-valve
38c
414888336
Lame Soupape *leaf-valve
38d
414888337
Lame Soupape *leaf-valve
41a
503189538
Lame Soupape *leaf-valve 12xt0.254
41b
414888338
Lame Soupape *leaf-valve
41c
414888339
Lame Soupape *leaf-valve
41d
415038800
Lame Soupape *leaf-valve
10
503189309
Piston Libre *piston-free (800 X (europe) )
11
414888312
Joint Torique *o-ring (800 X (europe) )
12
503189308
Bague *ring-piston (800 X (europe) )
13
505070398
Soupape Air *valve-air+ring (800 X (europe) )
14
505070399
Screw *vis (800 X (europe) )
15
414888316
Collet Ressort *collar-spring (800 X (europe) )
16
505070400
Joint Torique *o Ring (800 X (europe) )
