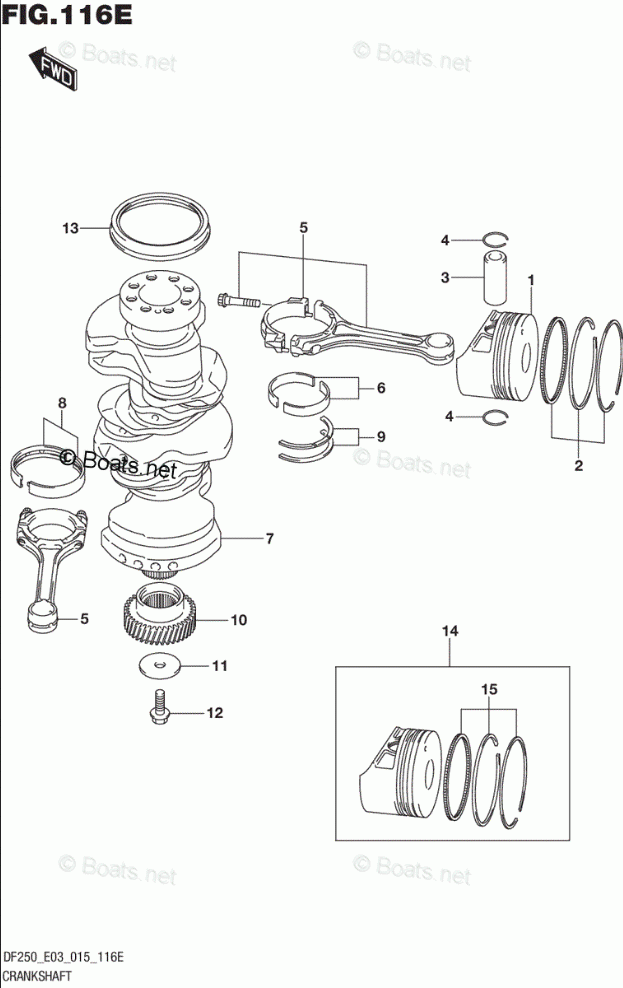

Crankshaft (DF250T E03)

Suzuki Marine DF 250TXZ
Suzuki Marine
#oem кодцена
1
12111-93J02-0B0
ПОРШЕНЬ
2
12140-93J00
КОЛЬЦА ПОРШНЕВЫЕ
3
12151-93J10
ПАЛЕЦ ПОРШНЕВОЙ
4
09381-22010
СТОПОРНОЕ КОЛЬЦО
5
12160-93J10
ШАТУН
6-2
12100-98810-025
BEARING SET, CONNROD (US:0.25 *{OPT}*
6-1
12100-98810-0A0
BEARING SET, CONNROD (GREEN)
7
12220-93J01
КОЛЕНЧАТЫЙ ВАЛ
8-8
12300-86812-0DA
BEARING SET, CRANKSHAFT (RED/YELLOW) *{OPT US:0.25}*
8-7
12300-86812-0CA
BEARING SET, CRANKSHAFT (RED) *{OPT US:0.25}*
8-6
12300-86812-0BA
BEARING SET, CRANKSHAFT (RED/BLACK) *{OPT US:0.25}*
8-1
12340-86FA2-0B0
BEARING SET, CRANKSHAFT (BLACK)
8-5
12340-86FA2-0F0
BEARING SET, CRANKSHAFT (PINK
8-10
12300-86812-0FA
BEARING SET, CRANKSHAFT (RED/PINK) *{OPT US:0.25}*
8-2
12340-86FA2-0C0
BEARING SET, CRANKSHAFT (NON)
8-3
12340-86FA2-0D0
BEARING SET, CRANKSHAFT (YELLOW)
8-4
12340-86FA2-0E0
BEARING SET, CRANKSHAFT (BLUE
8-9
12300-86812-0EA
BEARING SET, CRANKSHAFT (RED/BLUE) *{OPT US:0.25}*
9-1
12300-85830
BEARING SET, CRANK THRUST
9-2
12300-85830-012
BEARING SET, CRANK THRUST *{OPT OS:0.25}*
10
12242-93J01
GEAR, DRIVE (NT:32)
11
09160-10104
WASHER (10.5X50X3.2)
12
01550-1025A
BOLT
13
09283-91001
OIL SEAL (91X109X10)
14
12100-93J00-050
PISTON SET (OS:0.50) *{OPT}*
15
12140-93J00-050
RING SET, PISTON (OS:0.50) *{OPT}*
