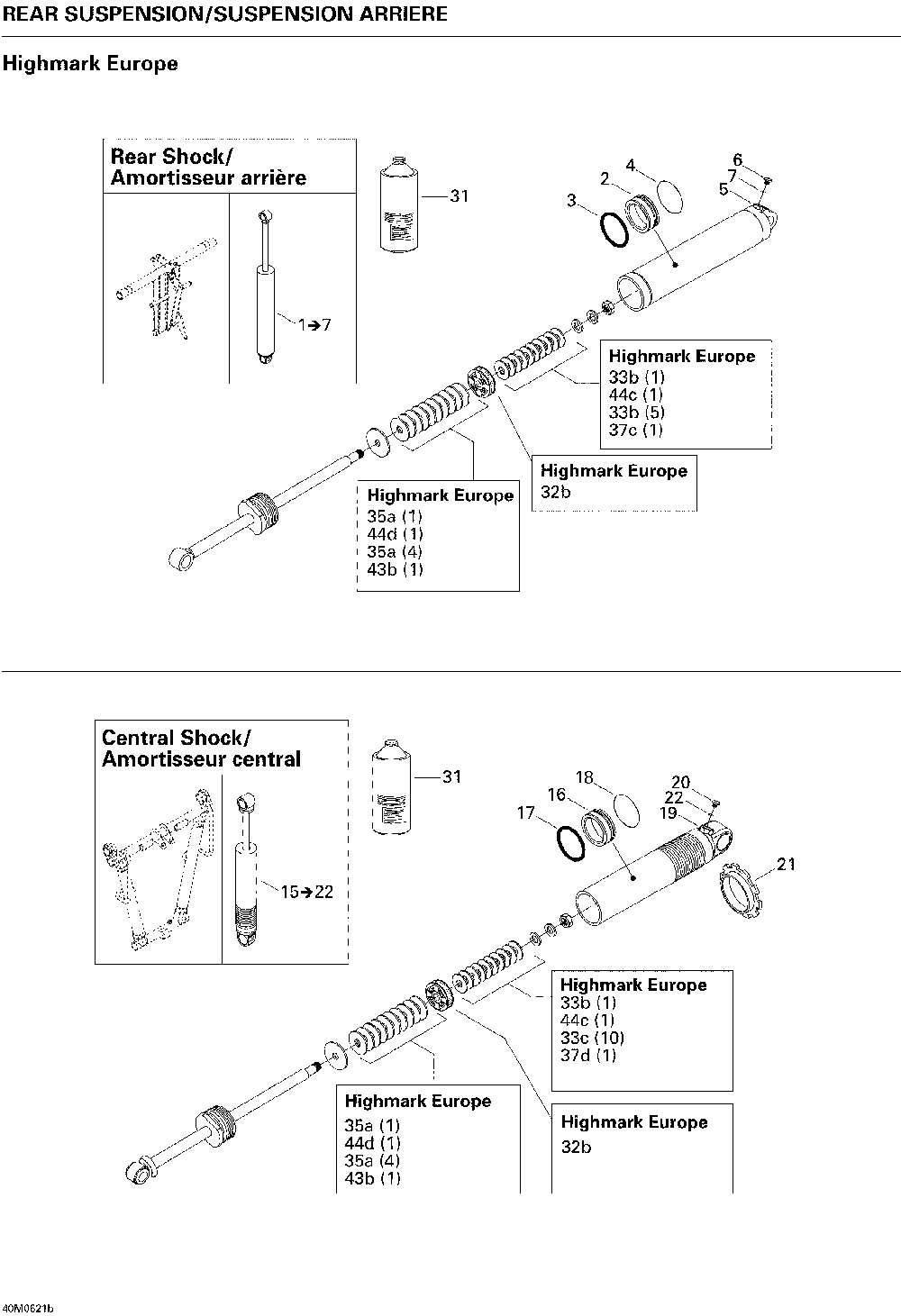

08- take apart shock, rear hm

Ski-Doo (Bombardier) Summit 1000 SDI, Highmark & Highmark X
Ski-Doo (Bombardier)
#oem кодцена
1
503190990
Amort. Arr. *shock-rear (includes 1 To 7/ Europe )
2
503189309
Piston Libre *piston-free (europe )
3
414888312
Joint Torique *o-ring (europe )
4
503189308
Bague *ring-piston (europe )
5
505070398
Soupape Air *valve-air+ring (europe )
6
505070399
Screw *vis (europe )
7
505070400
Joint Torique *o Ring (europe )
15
503190662
Amort.central *center Shock (includes 15 To 22 / Europe )
21
414888316
Collet Ressort *collar-spring (europe )
31
293600035
Huile Amortis. *oil-shock
32a
414888304
Piston Comp. *piston-comp.
32c
414888305
Piston Comp. *piston-comp.
32e
414888306
Piston Comp. *piston-comp.
32g
414888307
Piston Comp. *piston-comp.
33a
415039100
Lame Soupape *leaf-valve
33b
414888318
Lame Soupape *leaf-valve
33c
414888319
Lame Soupape *leaf-valve
34b
414888320
Lame Soupape *leaf-valve
34c
414888321
Lame Soupape *leaf-valve
35a
415039000
Lame Soupape *leaf-valve
35b
414888322
Lame Soupape *leaf-valve
35c
414888323
Lame Soupape *leaf-valve
37b
414888324
Lame Soupape *leaf-valve
37c
414888325
Lame Soupape *leaf-valve
38d
414888340
Lame Soupape *leaf-valve
39b
414888326
Lame Soupape *leaf-valve
39c
414888327
Lame Soupape *leaf-valve
39d
414888328
Lame Soupape *leaf-valve
41b
414888329
Lame Soupape *leaf-valve
41c
414888330
Lame Soupape *leaf-valve
43a
414888331
Lame Soupape *leaf-valve
43b
414888332
Lame Soupape *leaf-valve
43c
414888333
Lame Soupape *leaf-valve
43d
415038900
Lame Soupape *leaf-valve
44a
414888334
Lame Soupape *leaf-valve
44b
414888335
Lame Soupape *leaf-valve
44c
414888336
Lame Soupape *leaf-valve
44d
414888337
Lame Soupape *leaf-valve
47a
503189538
Lame Soupape *leaf-valve 12xt0.254
47b
414888338
Lame Soupape *leaf-valve
47c
414888339
Lame Soupape *leaf-valve
47d
415038800
Lame Soupape *leaf-valve
16
503189309
Piston Libre *piston-free (europe )
17
414888312
Joint Torique *o-ring (europe )
18
503189308
Bague *ring-piston (europe )
19
505070398
Soupape Air *valve-air+ring (europe )
20
505070399
Screw *vis (europe )
22
505070400
Joint Torique *o Ring (europe )
