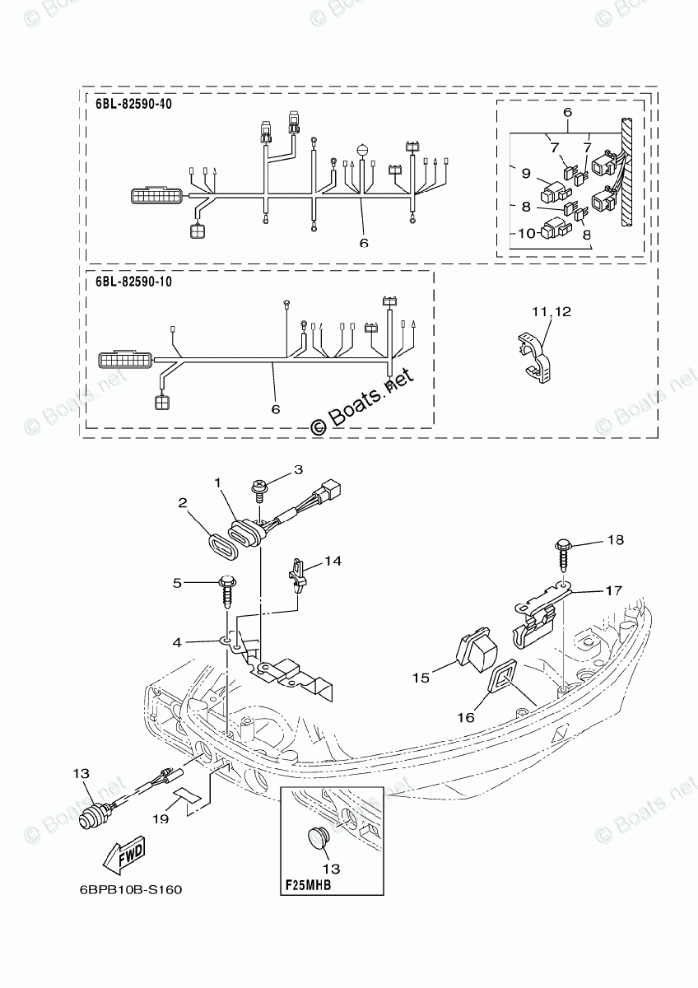

Electrical 4

Yamaha F25LEHB

Electrical 4

#

oem код

название

цена

1

62Y-84301-00-00

PILOT LIGHT ASSY 1

PILOT LIGHT ASSY 1

2

6FM-83589-00-00

GASKET

GASKET

3

SCREW, WITH WASHER

SCREW, WITH WASHER

4

6BL-82388-00-00

PLATE

PLATE

5

BOLT

BOLT

6

6BL-82590-40-00

WIRE HARNESS ASSY

WIRE HARNESS ASSY

7

67F-82151-00-00

FUSE (20A) *{FOR 6BL-82590-40}*

FUSE (20A) *{FOR 6BL-82590-40}*

8

67F-82151-10-00

FUSE (30A) *{FOR 6BL-82590-40}*

FUSE (30A) *{FOR 6BL-82590-40}*

9

67F-8215B-10-00

CAP (YELLOW) *{FOR 6BL-82590-40}*

CAP (YELLOW) *{FOR 6BL-82590-40}*

10

67F-8215B-20-00

CAP (GREEN) *{FOR 6BL-82590-40}*

CAP (GREEN) *{FOR 6BL-82590-40}*

11

CLAMP

CLAMP

12

CLAMP

CLAMP

13

65W-81870-00-00

STARTING SWITCH ASSY

STARTING SWITCH ASSY

14

CLAMP

CLAMP

15

69J-42723-01-00

COVER, BOTTOM

COVER, BOTTOM

16

69J-82587-00-00

GASKET

GASKET

17

63P-83614-01-00

BRACKET

BRACKET

18

BOLT

BOLT

19

67C-85415-00-00

MARK, SIGNAL LAMP

MARK, SIGNAL LAMP
