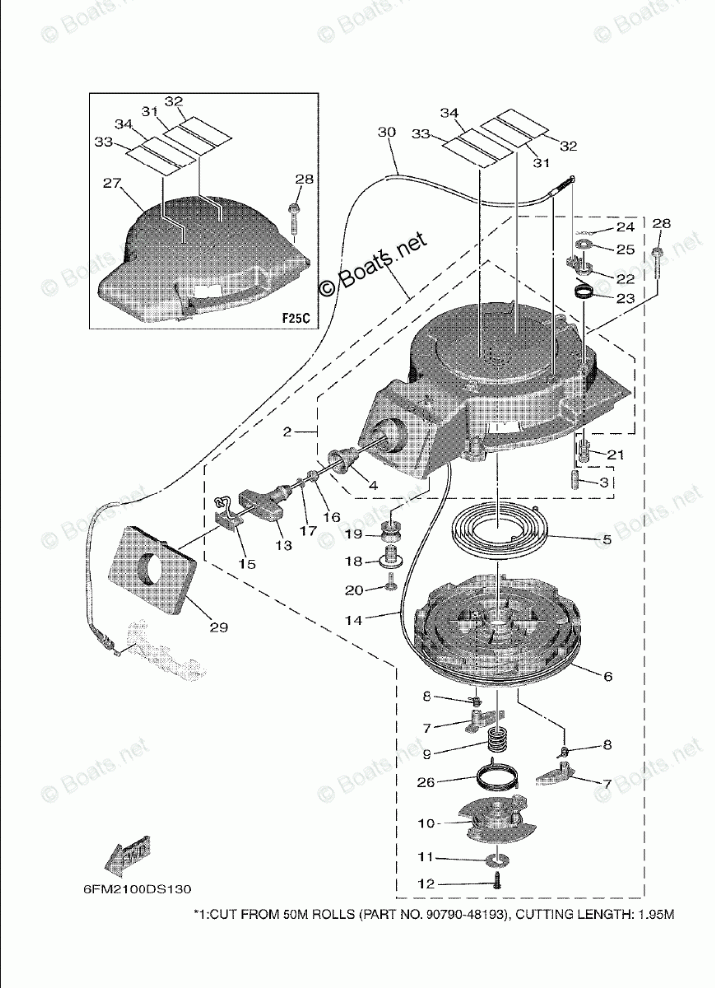

Starter

Yamaha F25LMHC
Yamaha
#oem кодцена
1
6FM-15710-02-00
STARTER ASSY
2
6FM-15711-01-00
CASE, STARTER
3
6FM-15764-00-00
COLLAR 1
4
6AH-15795-00-00
GUIDE, ROPE
5
63V-15713-00-00
SPRING, STARTER
6
6FM-15714-01-00
DRUM, SHEAVE
7
6FM-15741-00-00
PAWL, DRIVE
8
6FM-15734-00-00
SPRING, RETURN
9
6FM-15705-00-00
SPRING, DRIVE PAWL
10
6FM-15735-01-00
GUIDE, CAM
11
6FM-15726-00-00
WASHER, FLAT
12
6FM-15793-00-00
SCREW
13
6G1-15755-00-00
HANDLE, STARTER
15
6G1-15779-00-00
COVER
16
6A0-15789-00-00
DAMPER
17
6FM-15721-00-00
SHIM
18
6FM-15753-00-00
BUSH
19
6FM-15752-00-00
ROLLER, WIRE
20
6FM-15768-00-00
BOLT
21
63V-15794-00-00
STOPPER
22
6FM-15748-00-00
PLUNGER, STARTER STOP
23
63V-15734-00-00
SPRING, RETURN
24
6FM-15799-01-00
CLIP
25
63V-15726-00-00
WASHER, FLAT
26
6FM-15767-00-00
SPRING
28
90105-06035-00
BOLT, FLANGE
29
6FM-15762-00-00
SEAL, RUBBER 2
30
6FM-15770-08-00
CABLE COMP., STARTER STOP
31
6EE-81995-40-00
LABEL, WARNING
32
6EE-81995-50-00
LABEL, WARNING
33
6EE-81994-40-00
LABEL, SAFETY
34
6EE-81994-50-00
LABEL, SAFETY
