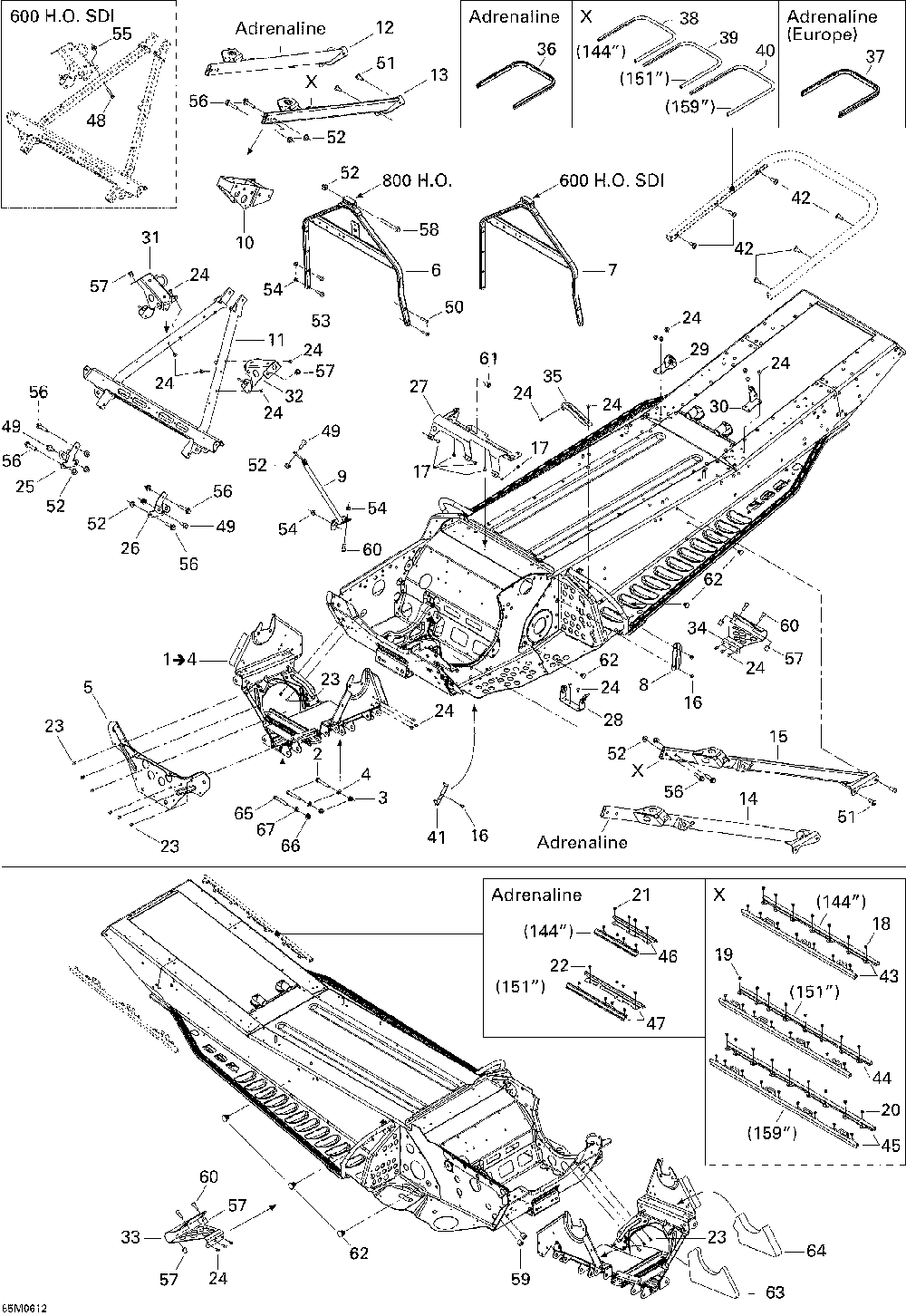

09- frame and components 600ho Запчасти для снегоходов Ski-Doo (Bombardier) Summit 600 HO SDI, Adrenaline (2006)

09- frame and components 600ho

Ski-Doo (Bombardier) Summit 600 HO SDI, Adrenaline

oem код

название

цена

518325423

Traverse *cross Member (includes 1 To 4 )

Винт

Гайка

Шайба

Plaque Avant *plate-front

518324505

Supp.guidon Sou*handle Support Weld. (600 H.o. Sdi )

518317504

Protect.cable *protect.-cable

518323472

Croisillon Soud*brace-weld

518323854

Bloc Attache *block-bracket

518324739

Traverse *upper Cross

518323352

Membrure Dr.sou*member-rh Weld. (adrenaline )

518323354

Membrure Ga.sou*member-lh Weld. (adrenaline )

Заклепка 3/16

Заклепка 3/16

Заклепка

Заклепка

Attache Amorti.*bracket-shock Rh

518322462

Attache Amorti.*bracket-shock Lh

518323532

Supp.silenc.adm*sup-intake Air

518322726

Attache Gard.co*brkt-guard Belt

518323769

Attache Droite *rh.bracket

518323770

Кронштейн левый

518323535

Supp.console D*support-console Rh

518322962

Supp.console G *support-console Lh

518324391

Accroche Pied D*toe Hold Rh

518324392

Accroche-pied G*toe-hold Lh

518323105

Пластина

518325218

Pare-choc *rear Bumper (adrenaline )

518324829

Pare-choc *rear Bumper (adrenaline (europe) )

518323896

Attache Coffre *bracket Trunk

236282084

Screw-pan Hd.torx Black Gm6174m

518323901

Protect. Fil Ga*wire Protector (adrenaline With Track 144" )

518323902

Protect. Fil *wire Protector (adrenaline With Track 144" )

207063544

Screw-hex.cap Din.931 (600 H.o. Sdi )

207682044

Винт

205862044

Screw-socket Ctsk.din.7991 S.grip

250000154

Screw-pan Hd.torx M8 X 13

Винт

Гайка

Винт

Вставка

Винт

Вставка

Винт

Вставка

Attache Panneau*panel-fastener

518323453

Поролон

518323007

Поролон

390402400

Rivet-pop 3/16 *rivet-pop 3/16 (adrenaline With Track 144" )

233281414

Гайка

233261414

Nut-flange Elastic Din.6926 (600 H.o. Sdi )

207085544

Винт

233281414

Гайка

234081410

Шайба
