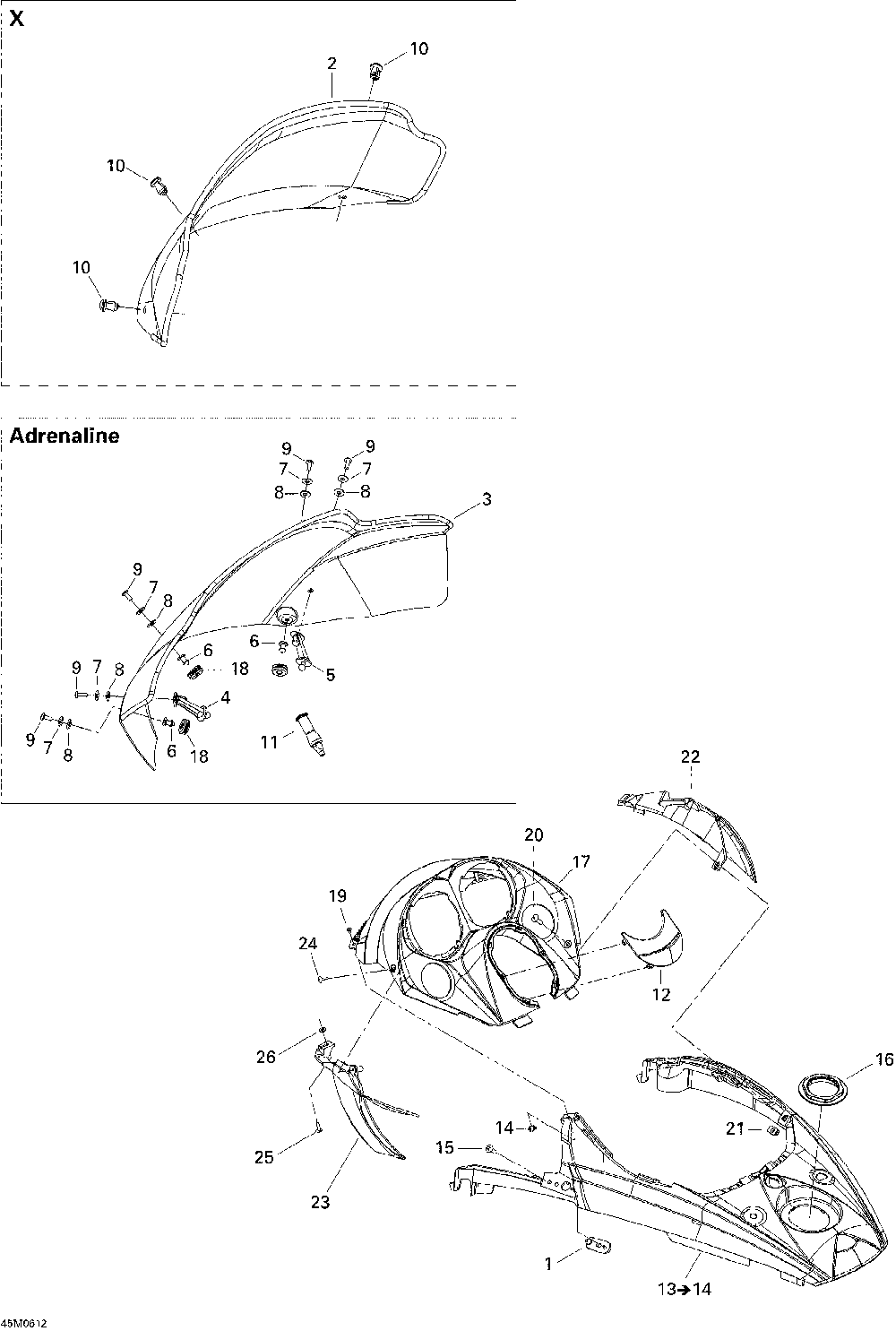

09- windshield and console 600ho

Ski-Doo (Bombardier) Summit 600 HO SDI, Adrenaline
Ski-Doo (Bombardier)
#oem кодцена
1
517302616
Loquet Capot *latch-hood
3
517303174
Pare-brise *windshield (adrenaline )
4
517303214
Supp.pare-brise*windsh.support Lh (adrenaline )
5
517303215
Supp.pare-brise*windsh. Support Rh (adrenaline )
6
517303439
Bouton *knob (adrenaline )
7
250200025
Rondelle M5 *washer M5 (adrenaline )
8
250200024
Rondelle M5 *rubber Washer M5 (adrenaline )
9
250000146
Torx-screw Truss Head Pt.k50x16 (adrenaline )
11
517303197
Supp.pare-brise*wind. Support (adrenaline )
12
517302592
Capuchon Consol*cap-console
13
517303069
Console Cent. *console-center (includes 13 To 14, Adrenaline 600 H.o. Sdi, Blue-black Model )
13
517303656
Console Cent. *console-center (includes 13 To 14, Adrenaline 600 H.o. Sdi, Red-black Model )
14
250100030
Flange Nut "t" Type M4 (adrenaline 600 H.o. Sdi, Blue-black Model )
15
250000128
Винт Torx (отпуск.по 10 шт)
16
517302575
Гайка
17
517303470
Support Ind. *indicator Supp (adrenaline )
18
517302841
Rondelle *grommet (adrenaline )
19
250000127
Винт Torx (отпуск.по 10 шт)
20
250000130
Винт Torx (отпуск.по 10 шт)
21
250000079
Гайка M5 X 0.8 (отпуск.по 10 шт)
22
517302546
Deflecteur Air *deflector-air Rh (adrenaline )
23
517302547
Deflecteur Air *deflector-air Lh (adrenaline )
24
250000084
Phil-truss Pt Gm6047m K40 X 16
25
250000113
Винт M4 X 16
26
234042600
Шайба
