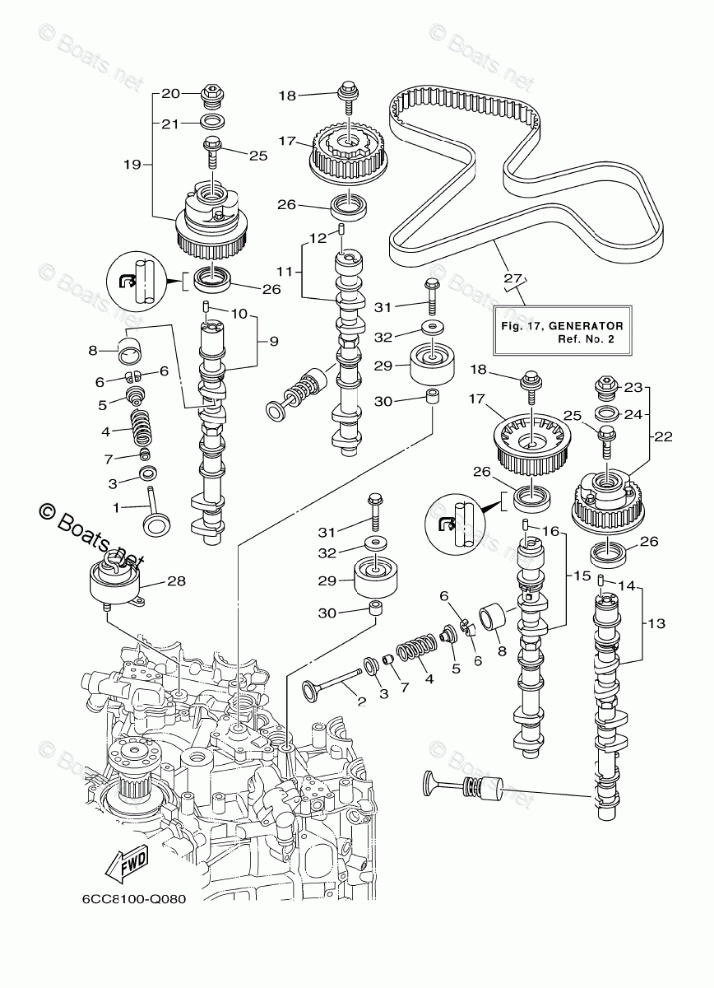

Valve

Yamaha LF250XB
Yamaha
#oem кодцена
1
6CB-12111-00-00
VALVE, INTAKE
2
6DA-12121-00-00
VALVE, EXHAUST
3
K0F-A3743-00-00
SEAT, VALVE SPRING
4
6CB-12113-00-00
SPRING, VALVE INNER
5
K0F-A3741-00-00
RETAINER, VALVE SPRING
6
K0F-A3742-00-00
LOCK, VALVE SPRING RETAINER
7
51Y-12119-00-00
SEAL, VALVE STEM
8
K0F-A3751-A0-00
LIFTER, VALVE (3.222) *{UR}*
8
K0F-A3751-90-00
LIFTER, VALVE (3.202) *{UR}*
8
K0F-A3751-J0-00
LIFTER, VALVE (3.382) *{UR}*
8
K0F-A3751-B0-00
LIFTER, VALVE (3.242) *{UR}*
8
K0F-A3751-C0-00
LIFTER, VALVE (3.262) *{UR}*
8
K0F-A3751-D0-00
LIFTER, VALVE (3.282) *{UR}*
8
K0F-A3751-80-00
LIFTER, VALVE (3.182) *{UR}*
8
K0F-A3751-E0-00
LIFTER, VALVE (3.302) *{UR}*
8
K0F-A3751-F0-00
LIFTER, VALVE (3.322) *{UR}*
8
K0F-A3751-G0-00
LIFTER, VALVE (3.342) *{UR}*
8
K0F-A3751-H0-00
LIFTER, VALVE (3.362) *{UR}*
8
K0F-A3751-M0-00
LIFTER, VALVE (3.442) *{UR}*
8
K0F-A3751-K0-00
LIFTER, VALVE (3.402) *{UR}*
8
K0F-A3751-L0-00
LIFTER, VALVE (3.422) *{UR}*
8
K0F-A3751-60-00
LIFTER, VALVE (3.142) *{UR}*
8
K0F-A3751-N0-00
LIFTER, VALVE (3.462) *{UR}*
8
K0F-A3751-P0-00
LIFTER, VALVE (3.482) *{UR}*
8
K0F-A3751-R0-00
LIFTER, VALVE (3.502) *{UR}*
8
K0F-A3751-S0-00
LIFTER, VALVE (3.522) *{UR}*
8
K0F-A3751-T0-00
LIFTER, VALVE (3.542) *{UR}*
8
K0F-A3753-00-00
LIFTER, VALVE (3.562) *{UR}*
8
K0F-A3753-10-00
LIFTER, VALVE (3.582) *{UR}*
8
K0F-A3753-20-00
LIFTER, VALVE (3.602) *{UR}*
8
K0F-A3753-30-00
LIFTER, VALVE (3.625) *{UR}*
8
K0F-A3753-40-00
LIFTER, VALVE (3.650) *{UR}*
8
K0F-A3753-50-00
LIFTER, VALVE (3.675) *{UR}*
8
K0F-A3753-60-00
LIFTER, VALVE (3.700) *{UR}*
8
K0F-A3751-70-00
LIFTER, VALVE (3.162) *{UR}*
8
K0F-A3751-20-00
LIFTER, VALVE (3.050) *{UR}*
8
K0F-A3751-50-00
LIFTER, VALVE (3.122) *{UR}*
8
K0F-A3751-00-00
LIFTER, VALVE (3.000) *{UR}*
8
K0F-A3751-40-00
LIFTER, VALVE (3.100) *{UR}*
8
K0F-A3753-70-00
LIFTER, VALVE (3.725) *{UR}*
8
K0F-A3751-10-00
LIFTER, VALVE (3.025) *{UR}*
8
K0F-A3751-30-00
LIFTER, VALVE (3.075) *{UR}*
9
6CB-12171-00-00
CAMSHAFT 1
10
93605-10108-00
PIN, DOWEL
11
6CB-12181-00-00
CAMSHAFT 2
12
93605-10108-00
PIN, DOWEL
13
6CB-12172-00-00
CAMSHAFT 3
14
93605-10108-00
PIN, DOWEL
15
6CB-12182-00-00
CAMSHAFT 4
16
93605-10108-00
PIN, DOWEL
17
6CB-11567-00-00
GEAR, DRIVEN 2
18
90119-10050-00
BOLT, WITH WASHER
19
6CB-12645-01-00
PULLEY ASSY 1
20
6P2-12623-00-00
BOLT
21
6P2-12663-00-00
GASKET
22
6CB-1264A-01-00
PULLEY ASSY 2
23
6P2-12623-00-00
BOLT
24
6P2-12663-00-00
GASKET
25
6P2-12615-00-00
BOLT
26
93102-38008-00
OIL SEAL
27
6CB-W4624-00-00
BELT (WITH ROTOR BOLTS)
28
6CB-11590-02-00
TENSIONER ASSY
29
6CB-15512-00-00
GEAR, IDLER 1
30
99530-14016-00
PIN, DOWEL
31
90119-10M07-00
BOLT, WITH WASHER
32
90201-10M01-00
WASHER, PLATE
