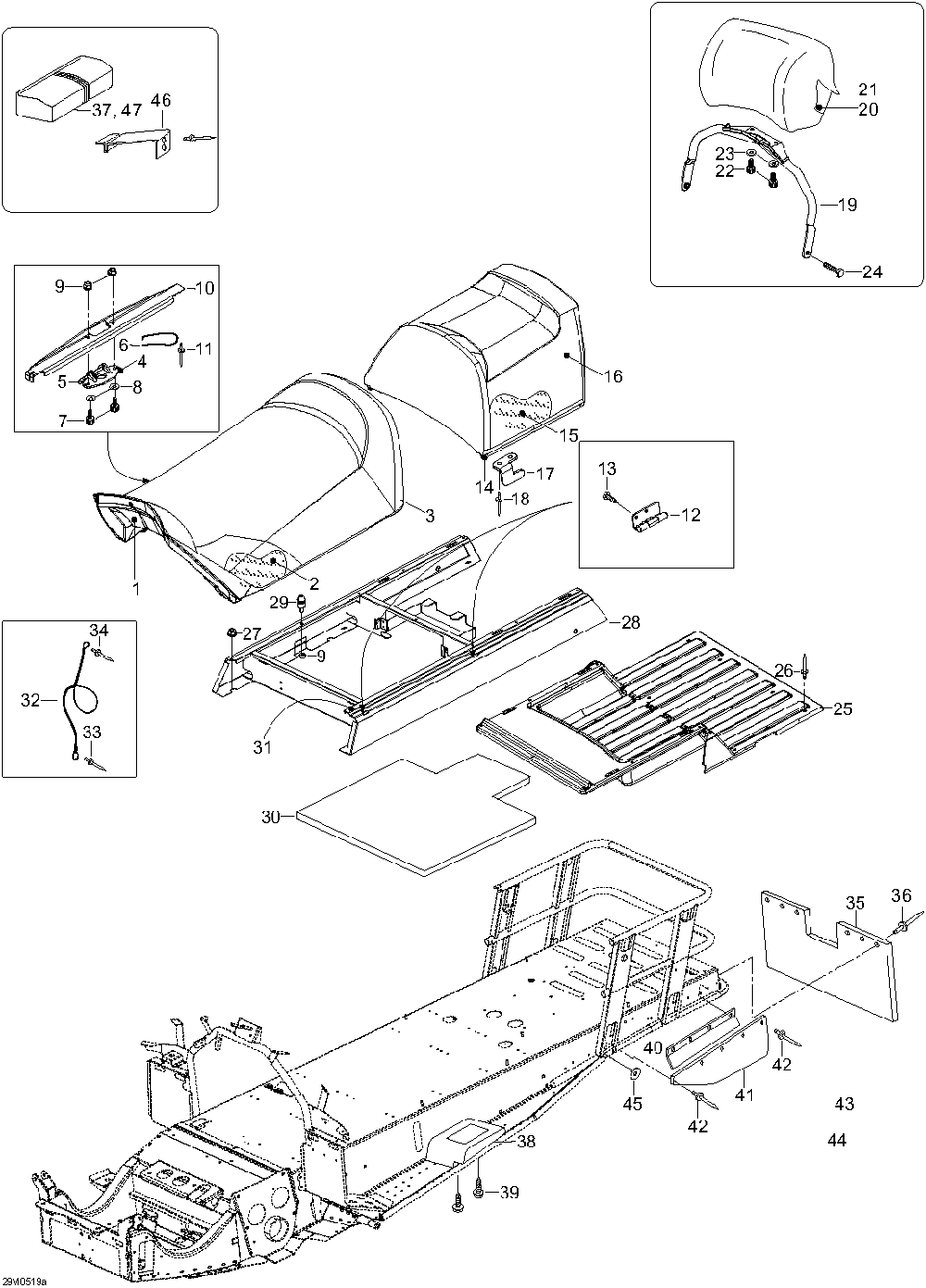

Сидение 1

Ski-Doo (Bombardier) Expedition V-1000
Ski-Doo (Bombardier)
#oem кодцена
1
605251388
Sous Siege Ava.*front Seat Base
2
605251389
Mousse Siege *front Foam Seat
3
605251422
Housse Siege *seat Cover Front
4
269700076
Couv.loquet *cover-latch
5
269700077
Levier Loquet *lever-latch
6
269700017
Ressort Loquet *spring-latch
7
M40276
Allen Screw M6 X 25din 912m8.8zne
8
234061410
Шайба
9
232561414
Гайка с тефлоном
10
605352483
Plaque Sup. *support Plate
11
M36083
Заклепка
12
605351798
Charniere *hinge Plate Assy
13
M40890
Винт
14
605251390
Sous Siege Ar. *rear Seat Base
15
605251391
Mousse Siege Ar*rear Seat Foam
16
605251425
Housse Siege *seat Cover
17
605351808
Verrou *locking Plate L.h
17
605352007
Verrou *locking Plate R.h
18
M36087
Заклепка
19
605251730
Dossier *backrest Weld
20
605252104
Mousse Dossier *backrest Foam
21
605251431
Housse Dossier *backrest Cover
22
M40066
Винт
23
234181401
Шайба
24
M40337
Винт
25
605151397
Couvercle *tunnel Cover
26
M36036
Заклепка
27
M33200
Гайка M6
28
605251807
Base De Siege *seat Box Weld
29
605452035
Axe De Blocage *lock Pin
30
605352460
Поролон
31
M28413
Baguette Etan. *sealing Strip
32
M546777
Cable Retenue *cable-retainer
33
M36037
Заклепка
34
M36489
Заклепка
35
M538629
Garde-neige *guard-snow
37
605352219
Coffre Outils *tool Kit Yeti -04
38
414975300
Rep.pied Arr.dr*footrest-rr.rh
38
414975400
Rep.pied Arr.ga*footrest-rr.lh
39
M40870
Screw-hex.taping
40
605251249
Support Dr. *side Snow Guard Guide Rh
40
605251248
Support Ga. *side Snow Guard Guide Lh
41
M5142828
Garde-neige *guard-snow
42
M36097
Заклепка
43
M36891
Заклепка
44
M36005
Заклепка
45
M20008
Шайба
46
M5346728
Plaque Ressort *plate Psring
47
A50121179000
Инструмент
11
M36108
Заклепка
27
233261414
Гайка
36
M36036
Заклепка
