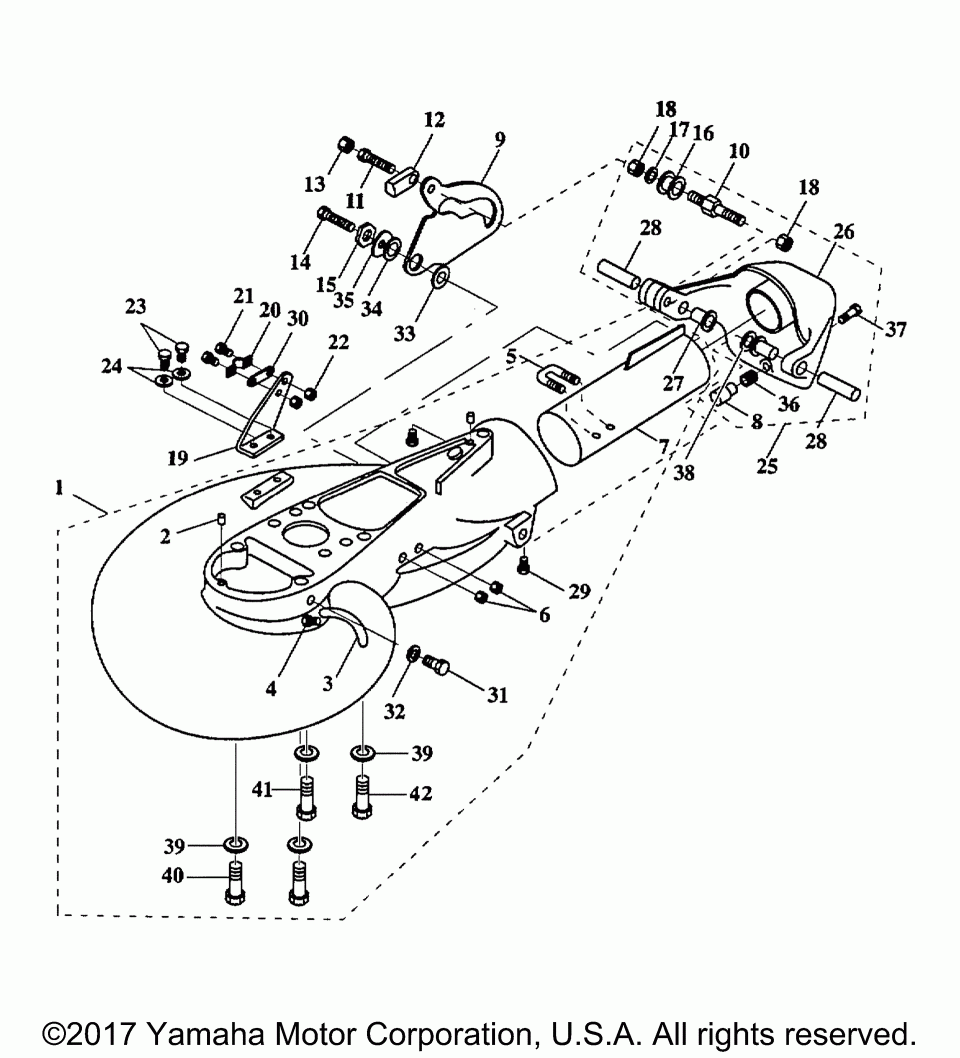

Main housing f90lb

Yamaha F90LB-PUMP
Yamaha
#oem кодцена
1
6E5-JD009-41-01
MAIN HOUSING WEX. TUBE
2
6H4-JD006-31-00
Палец
3
6H4-JD009-75-00
GREASE HOSE
4
6H4-JD005-39-00
GREASE FITTING
5
67F-JD008-45-00
U-BOLT 1-3/8
6
6H4-JD006-21-00
NUT, NYLOC
7
6H1-JD001-28-00
EXHAUST TUBE
8
67F-JD001-49-70
GATE BUMPER
9
6H1-JD001-03-40
SHIFT CAM LARGE
10
6H4-JD001-04-30
SHAFT, ROLLER
11
6H1-JD005-73-00
Болт
12
63D-JD005-53-02
BALL END
13
6H4-JD006-23-00
NYLOC
14
6H4-JD005-74-10
BOLT, HEX HEAD NYLOC
15
6H4-JD001-03-60
CAM, ECCENTRIC DRILLED
16
6H4-JD001-04-20
SHAFT, ROLLER
17
6H4-JD006-35-00
Шайба
18
6H4-JD006-24-00
NUT, FIBER LOCK
19
6H4-JD001-56-00
BRACKET, CABLE SUPPORT
20
6H4-JD005-43-00
CABLE CLAMP
21
6H4-JD005-61-00
SCREW, FIL HEAD
22
6H4-JD006-19-00
NUT, FIBER LOCK #10-24
23
6H4-JD005-72-00
Болт
24
6H4-JD006-40-00
Гровер
25
6H1-JD001-17-30
GATE ASSY LARGE CAM 1/2
26
6H1-JD011-72-01
GATE, PAINTED CAM LARGE 12
27
6H1-JD005-36-00
NYLINER 4217A 1/2 ID X .82
28
6H1-JD008-23-00
PIN, REVERSE PIVOT
29
6H4-JD005-74-00
Болт
30
6H4-JD005-42-00
Регулировочная прокладка
31
6H4-JD001-02-40
FLUSH SCREW
32
6H4-JD001-02-50
WASHER, FIBER M8
33
6H4-JD001-03-70
BUSHING, CAM
34
6H4-JD001-03-80
WASHER, CAM
35
6H4-JD001-03-90
SHIM, CAM
36
6H4-JD001-17-00
SPRING, GATE BUMPER
37
67C-JD005-59-02
SCREW, NYLOC
38
6H1-JD001-17-80
SPRING GATE PIVOT 1/2
39
6H4-JD006-36-00
WASHER, SPRING LOCK M10
40
6H1-JD006-08-00
BOLT 3/8-16 X 2-1/4
41
6H1-JD006-09-00
BOLT 3/8-16 X 2-3/4
42
6H1-JD006-10-00
BOLT 3/8-16 X 3
