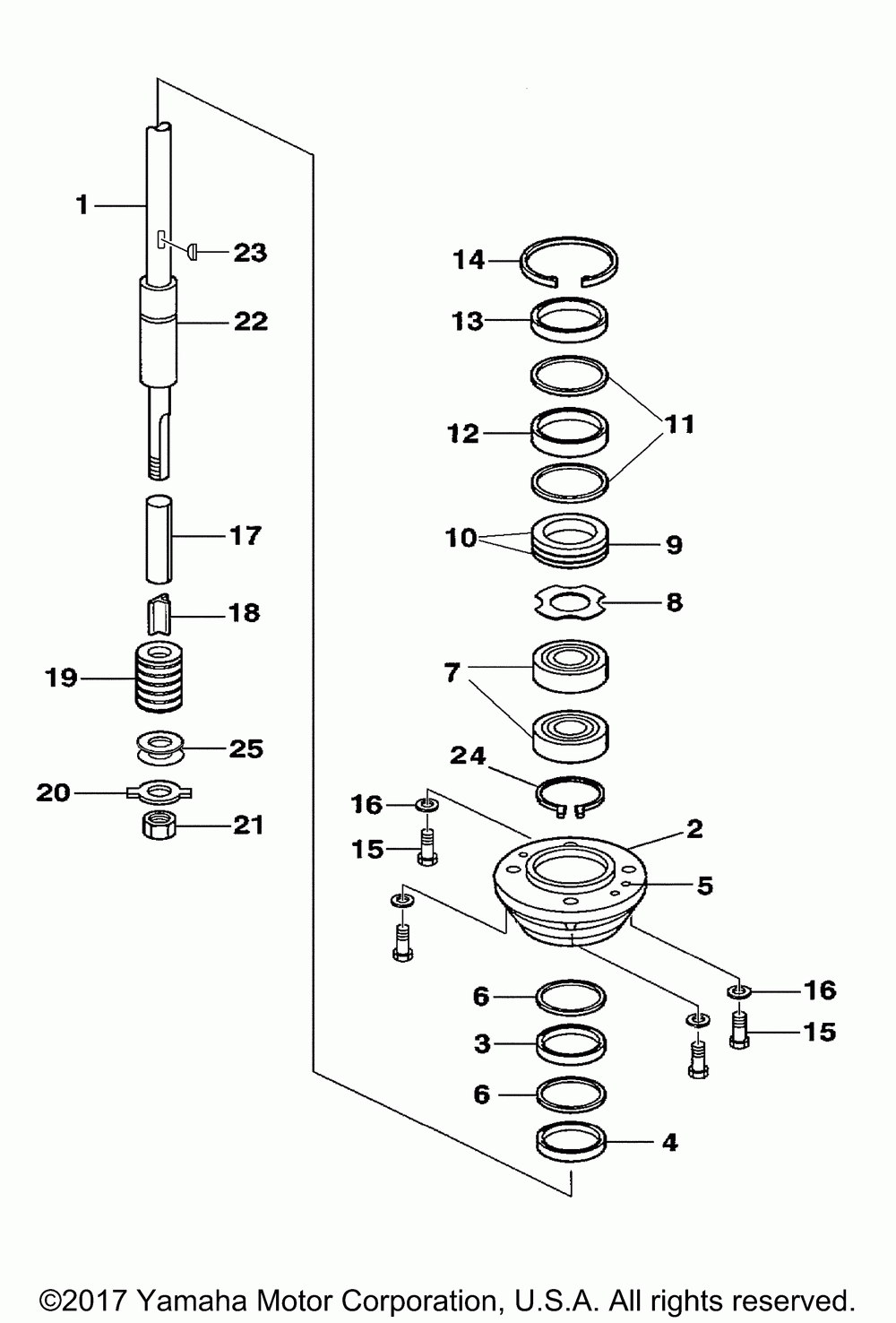

Drive 1 f90

Yamaha F90TJR-PUM 2017
Yamaha
#oem кодцена
1
67F-JD001-56-20
DRIVESHAFT
1
67F-JD001-56-31
DRIVESHAFT ASSY W/BR
2
6H1-JD003-93-05
BEARING CARR ASSY 5/
3
6H4-JD005-06-00
SHAFT SEAL N472324
4
6H4-JD005-07-00
SHAFT SEAL,N6324S
5
6H4-JD005-21-00
O-RING-011
6
6H4-JD005-17-00
RETNG.RING SPIROLX
7
6H1-JD005-02-00
BEARING, SNG. ROW
8
6H1-JD004-04-00
BACK-UP WASHER DBL
9
6H1-JD004-32-00
UP SEAL CARR.W/SLS
10
6H1-JD005-27-00
Уплотнительное кольцо
11
6H4-JD005-17-00
RETNG.RING SPIROLX
12
6H4-JD005-06-00
SHAFT SEAL N472324
13
6H4-JD005-07-00
SHAFT SEAL,N6324S
14
6H1-JD005-13-00
RETAINING RING TRU
15
6H1-JD006-02-01
BOLT,5/16-18 1"
16
6H4-JD006-40-00
WASHER,SPR.LOC5/16
17
6H1-JD001-36-00
SHAFT SLEEVE,IMPLR
18
6H1-JD004-34-00
TEE KEY
19
6H1-JD001-21-00
SHIM WASHER
20
6H1-JD007-81-00
NUT KEEPER
21
6H1-JD001-22-10
NUT, DRIVESHAFT
22
6H4-JD000-41-00
SHFT.BEAR.THR.RING
23
90280-04M04-00
KEY,WOODRUFF
24
6H4-JD005-11-00
RETAINING RING
25
67F-JD001-71-90
TORSIONAL DAMPER KIT
