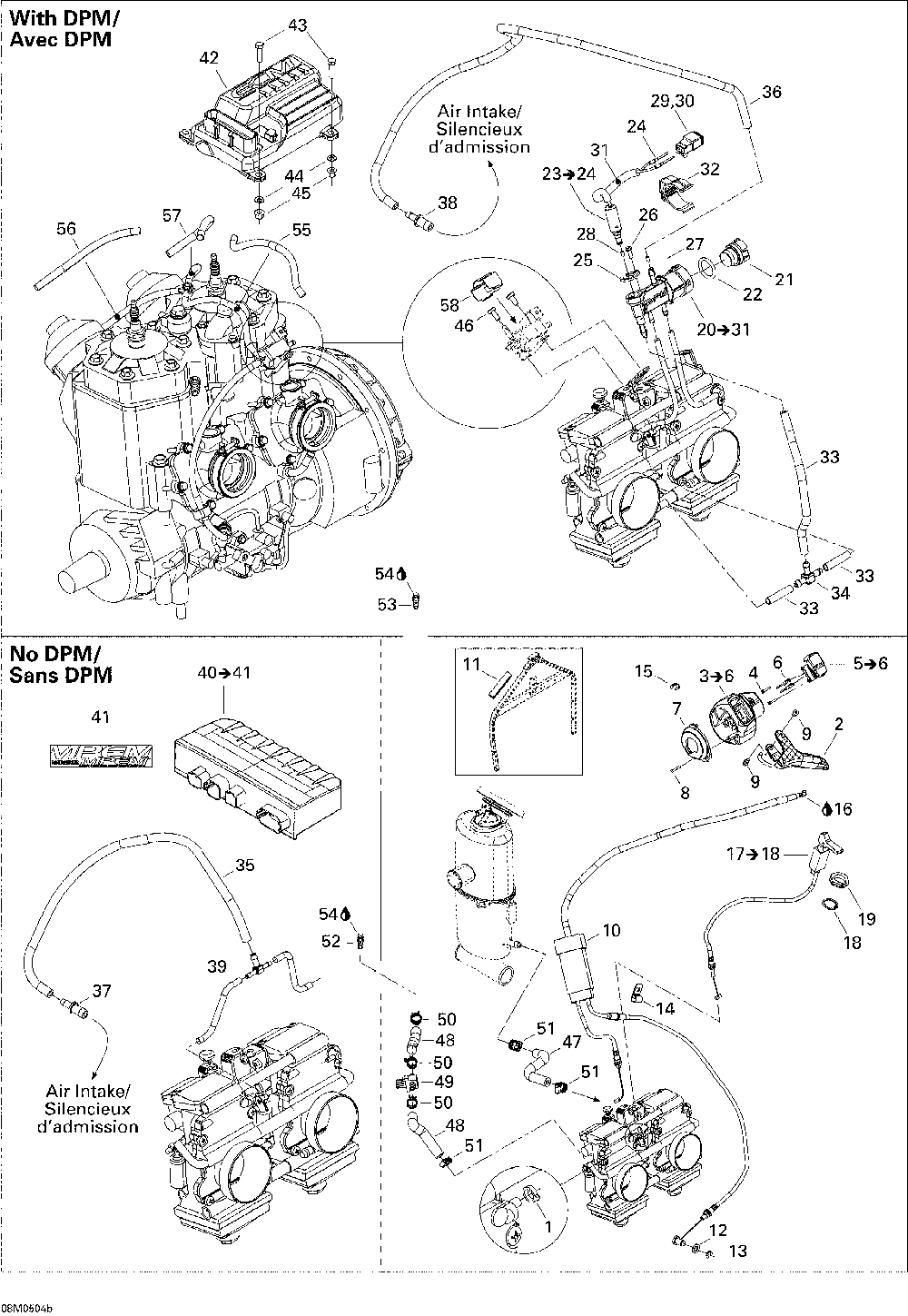

01- engine 2, 800ho

Ski-Doo (Bombardier) GTX 800 HO
Ski-Doo (Bombardier)
#oem кодцена
1
293750001
Стяжка 94 мм
2
512060484
Рычаг
3
512060121
Logement *housing Includes 3 To 6
4
250000098
Screw-thread Cut.ph.pan Din.7981
6
515175232
Электрическая клемма "папа"
7
512059698
Крышка
9
732601143
Винт
10
512060084
Трос газа
11
512059750
Защита
12
234081100
Шайба
13
414753500
Стопор
14
414176000
Хомут открывающийся
15
414274500
Стопор
16
293550004
Смазка диэлектрическая
17
512059266
Cable Etrang. *cable-choke Includes 17 To 18
18
394103300
Washer-lock Int.teeth
19
512059094
Гайка
20
512060002
Collect.pres.as*pression Manif. Assy Includes 20 To 31 / With Dpm
21
270600009
Capuchon *cap With Dpm
22
293300042
Joint Torique *o-ring With Dpm
23
515175701
Cablage Collect*harness-press.manif. Includes 23 To 24 / With Dpm
25
415061600
Barrure Electr.*lock-solenoid With Dpm
26
241140060
Screw-pt.hex.flange K40 X 10 With Dpm
28
404161825
Gicleur Lanceur*starter-jet With Dpm
29
515175670
Logement Femel.*housing-female With Dpm
30
515175675
Verrou Femelle *lock-female With Dpm
31
515175332
Gaine Low Temp.vinyl With Dpm
32
512058919
Support *support With Dpm
33
415080200
Boyau Polyure *polyurethane Hose With Dpm
34
414729300
Raccord En T *fitting-t With Dpm
38
293710035
Raccord Droit *fitting-straig With Dpm
41
516000245
Наклейка
42
512059980
Module Calibre *calib. Module 800 H.o. With Dpm
43
207152044
Screw-hex.cap Din.933 800 H.o. With Dpm
44
234051410
Washer-flat Din.125a 800 H.o. With Dpm
45
233251414
Nut-flange Elastic Din.6926 800 H.o. With Dpm
46
208651241
Screw-pan Hd.ph.din.7985a 800 H.o. With Dpm
47
509000171
Шланг сформированный
48
509000093
Шланг 8мм
49
512059324
Soupape 5/16" *valve-5/16"
50
414655700
Зажим пружинный
51
293650170
Зажим шланга
53
512059970
Raccord Male *connector-male With Dpm
54
293800018
Герметик
55
409901700
Gaine 09mm I.d.*tubing-09mm I.d. 800 H.o. With Dpm
58
512059809
Support *support 800 H.o. With Dpm
24
278001665
Cosse Femelle *terminal-femal With Dpm
42
512060058
Module Calibre *calib. Module 800 H.o. With Dpm
5
512060121
Logement *housing Includes 5 To 6
8
250000098
Screw-thread Cut.ph.pan Din.7981
36
415080200
Boyau Polyure *polyurethane Hose With Dpm
56
409901700
Gaine 09mm I.d.*tubing-09mm I.d. 800 H.o. With Dpm
57
409901700
Gaine 09mm I.d.*tubing-09mm I.d. 800 H.o. With Dpm
