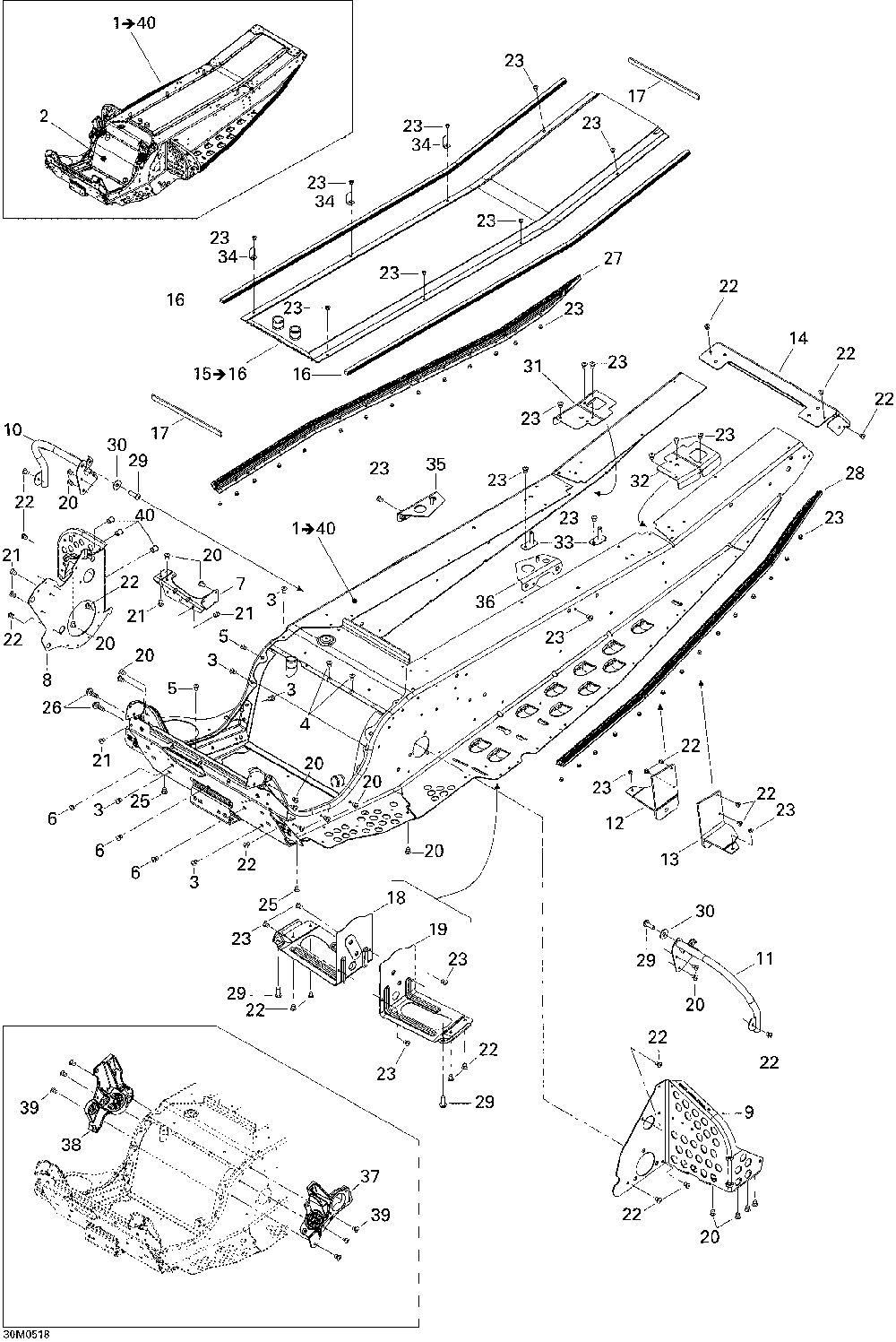

Рама

Ski-Doo (Bombardier) Mach Z 1000 SDI
Ski-Doo (Bombardier)
#oem кодцена
1
415129244
Chassis *frame Service Includes 1 To 40
3
390909200
Заклепка
4
390909100
Заклепка
5
390402200
Заклепка 3/16
6
390402300
Заклепка 3/16
12
518323572
Att.susp.dr. *slide Brkt Rh
13
518323573
Att.susp.ga. *slide Brkt Lh
14
518324409
Capuchon *rear Cap
15
518324242
Radiateur Arr.s*front Rad. Weld. Includes 15 To 16
16
415012300
Защита
17
293200097
Прокладка
18
518323952
Marche-pied Dr.*footrest-rh
19
518323954
Marche-pied Ga.*footrest-lh
23
390402400
Заклепка 3/16
25
390910300
Rivet Henrob *rivet-henrob
26
207582544
Винт
27
518324298
Rouleau Droit *roller-rh
28
518324299
Rouleau Gauche *roller-lh
29
205982086
Screw-socket Bn.hd.s.grip Iso.7380
30
234082410
Шайба
31
518324431
Renf.tunnel Dr.*reinf-frame Rh
32
518324432
Renf.tunnel Ga.*reinf-frame Lh
33
518322791
Att.reserv.so. *brkt-tank Weld
35
518324385
Renfort Tunnel *frame Form. Reinf.
36
518324386
Renfort Tunnel *frame Form. Reinf.
37
518323715
Support Moteur *engine Support
38
518323716
Support Moteur *engine Support
39
293150120
Rivet Hemlock *rivet-hemlock 6.5mm
40
415107300
Вставка
27
518325000
Rouleau Droit *roller-rh
28
518325001
Rouleau Gauche *roller-lh
20
390909200
Заклепка
21
390909100
Заклепка
22
390402200
Заклепка 3/16
