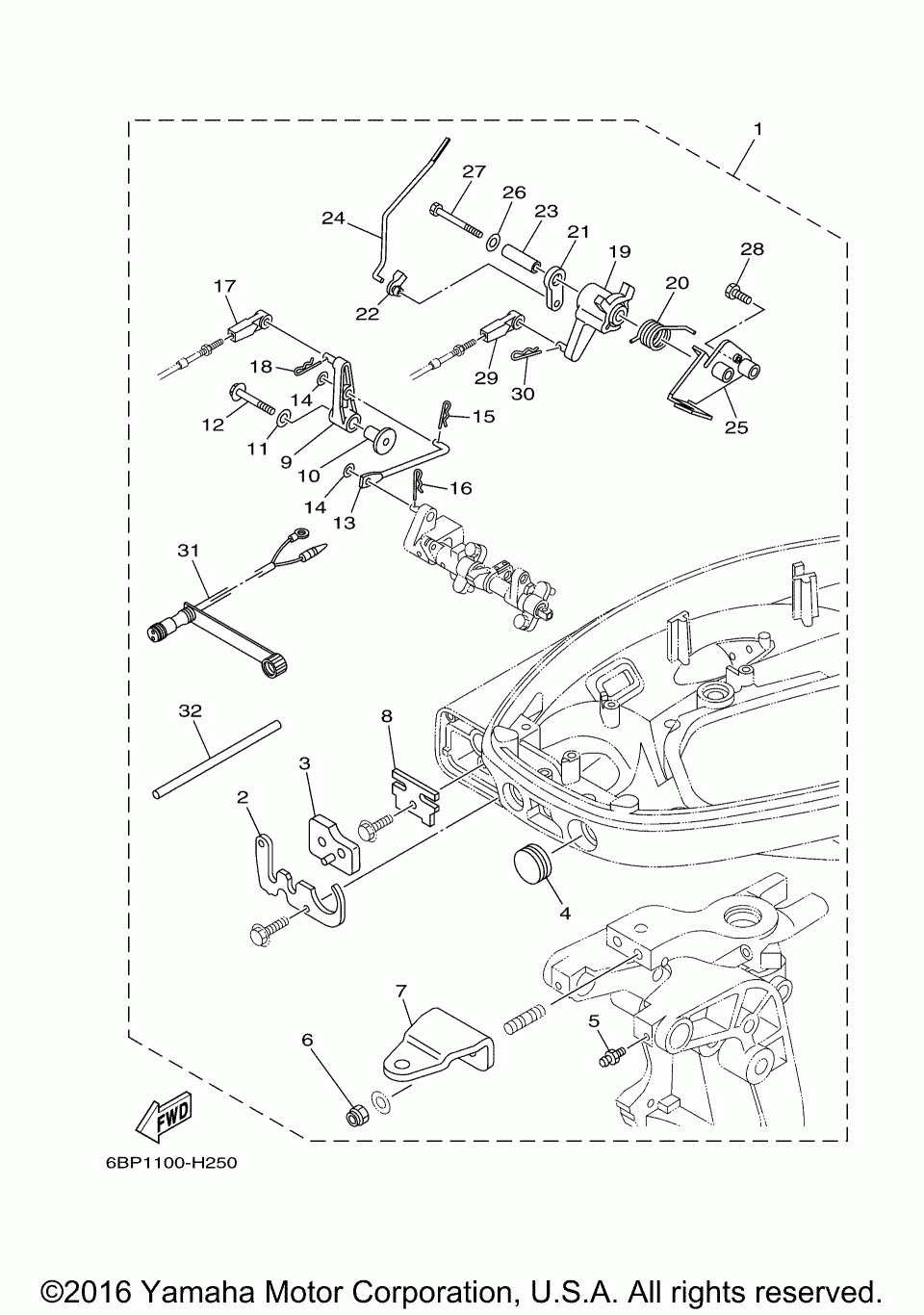

Remo con attachment

Yamaha F25LEA/F25SEHA/F25SMHA/F25SEA/F25LA

Remo con attachment

#

oem код

название

цена

1

6BL-48501-00-00

REMOTE CONT. ATTACHMENT ASSY.

REMOTE CONT. ATTACHMENT ASSY.

2

6BL-42761-00-00

. .STOPPER

. .STOPPER

3

6BL-42727-00-00

. .GROMMET

. .GROMMET

4

65W-42726-10-00

. GROMMET

. GROMMET

5

. NIPPLE, GREASE

. NIPPLE, GREASE

6

. NUT, SELF-LOCKING

. NUT, SELF-LOCKING

7

65W-48511-01-00

. HOOK, STEERING

. HOOK, STEERING

8

6BL-48538-00-00

. .CLAMP, CABLE 1

. .CLAMP, CABLE 1

9

6BL-44125-00-00

. .LEVER, SHIFT ROD

. .LEVER, SHIFT ROD

10

. COLLAR

. COLLAR

11

. WASHER, PLATE

. WASHER, PLATE

12

. .BOLT, WITH WASHER

. .BOLT, WITH WASHER

13

6BL-44192-00-00

. .LINK, SHIFT ROD

. .LINK, SHIFT ROD

14

. .WASHER, PLATE

. .WASHER, PLATE

15

. CLIP

. CLIP

16

. CLIP

. CLIP

17

6FM-48344-00-00

. CABLE END, REMOTE CONTROL

. CABLE END, REMOTE CONTROL

18

. CLIP

. CLIP

19

6BL-41638-00-00

. .PULLEY

. .PULLEY

20

. .SPRING, TORSION

. .SPRING, TORSION

21

65W-41283-00-00

. LEVER, FREE ACCEL.

. LEVER, FREE ACCEL.

22

6J8-41262-00-00

. JOINT, CHOKE LEVER

. JOINT, CHOKE LEVER

23

. COLLAR

. COLLAR

24

6BL-41211-00-00

. .LINK, ACCEL.

. .LINK, ACCEL.

25

6BL-14571-10-00

. .BRACKET, THROTTLE

. .BRACKET, THROTTLE

26

. WASHER, PLATE

. WASHER, PLATE

27

. .BOLT

. .BOLT

28

. BOLT

. BOLT

29

6FM-48344-00-00

. CABLE END, REMOTE CONTROL

. CABLE END, REMOTE CONTROL

30

. CLIP

. CLIP

31

6D5-84340-00-00

. .SOCKET CORD ASSY 1

. .SOCKET CORD ASSY 1

32

. .HOSE (L160)

. .HOSE (L160)
